Full Color P4.81 LED Advertising Screen Display for Outdoors Concert
1. Product Specification :
2. Product Details :
Module size: 250mmx250mm
Die casting cabinet: 500mmx500mm
The third floor module aging test workshop. aging test time is 12 hours
the first floor display aging test in our workshop, Aging test time is 72 hours
3. Functions and Advantages
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer .
4.Application:

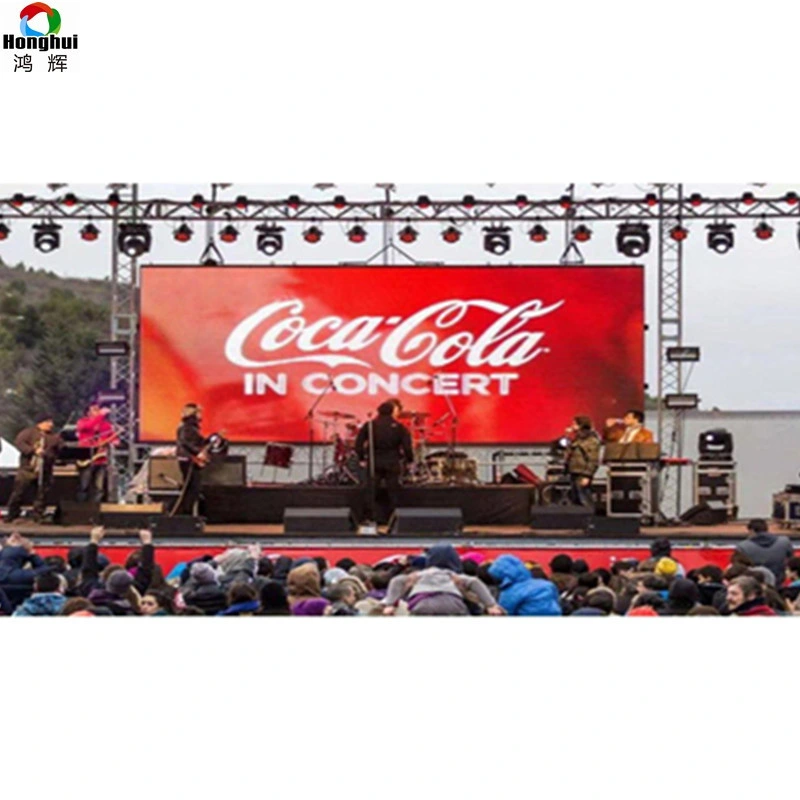

Outdoors Concert
5.Our Factory and Our Service :
Fully automatic import machine
Young and passionate team
6. CERTIFICATE :
7.FAQ :
Welcome to visit honghuiled.en.made-in-china.com for more information!
1. Product Specification :
| Outdoor full color P4.81 Rental LED video screen | ||
| 1 | HD small pixel LED display | P1.5625 / P1.667/ P1.923/ P2 |
| 2 | Hot rental LED display | P3 /P3.91 /P4 /P4.81 /P5.95 |
| 3 | Outdoor fixed LED display | P4/P5 /P6 /P8 /P10 /P16 /P20 |
| 4 | LED Control System | Nova Star / LINSN /Colorlight /Listen |
| 5 | LED | Nation Star /Epistar /Kinglight |
| 6 | IC | MBI5124 IC |
| 7 | Power supply | Meanwell / G-energy |
| 9 | Cabinet kind | Iron /Aluminum /Die-casting /Fiber Aluminum |
| 1 | Pixel Pitch | 4.81 mm |
| 2 | Cabinet Size | 500*500mm / 500*1000 mm |
| 3 | Pixel density | 43,264 dots/m2 |
| 4 | Color temperature | 6000K--8000K |
| 5 | Viewing angle | H:140;V:140 |
| 6 | Dead LED lamp rate | ≤0.1‰ |
| 7 | Non-Flatness | <0.2mm |
| 8 | Module interval | <0.2mm |
| 9 | Packaging Gross Weight(KG) | 8-12 kg (Estimated data) |
| 10 | Packaging dimension | 70*70*75c m (6cabinet in one case) |
| 11 | Maximal power/m2 | 1000 W/m2 |
| 12 | Brightness adjusted | 256 grade by auto-optic/color &8 grade by hand |
| 13 | Input signal | RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
| 14 | Life-span | ≥1 00,000 hours |
| 15 | MTBF | 5,000 hours |
| 16 | Frame frequency | 25 - 60 Hz / s |
| 17 | Refresh rate | ≥2,000 Hz / s |
| 18 | Single Input(with video processor) | HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc. |
| 19 | Control Distance | 120 m (no repeating); Optical fiber transmission: 0.5km- 10km |
| 20 | Systems Operating Platform | Windows XP, Win 7, Win8, Win8.1, Win10 |
2. Product Details :
Module size: 250mmx250mm
Die casting cabinet: 500mmx500mm
The third floor module aging test workshop. aging test time is 12 hours
the first floor display aging test in our workshop, Aging test time is 72 hours
3. Functions and Advantages
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer .
4.Application:
Outdoors Concert
5.Our Factory and Our Service :
Fully automatic import machine
| A | 96 Hours Serious Testing Time |
| B | 72 Hours Display Testing Time |
| C | 24 Hours Module Testing Time |
| D | 24 Hours After-sales online Service |
| E | 12 Hours LED Inquiry Response Time |
| F | 9 years Professional LED display factory |
| G | 5 years Excellent Domestic Big Government LED Designer |
| H | 3 years Expanding International Trade Experience |
Young and passionate team
6. CERTIFICATE :
7.FAQ :
| Question 1: How can I trust your HONGHUI LED factory ? |
| Answer : Yes, when you talk with us now , we are here . We do led since 2009 ,it is over 8 years . In the past 8 years , we delelop so well. Tomorrow and future , we will largely expand our LED market, you will see it . Welcome to try our LED sample quality . We do have100% confidence in our LED product . |
| Quesiton 2: If I need led very urgently ,how fast can you finish the goods ? |
| Answer:How fast you want ?Three days ?One week ? Definite shipping date ? We produce LED everyday .We have some led modules in stock . Put the most urgent and important order at the first place . You are important to us .Surely to establish first-time good relationship . We do must finish it at FAST ROCKET TIME. |
| Q3:Is it easy to install this led display ? |
| Answer : If you are new to LED ,we will help you to know led from ZERO to Professional . We have installation manual book and professional engineering team to guide you . To help you better understand LED is to make us get your earlier trust . If you knew LED before,we can learn from each other. We could be Future Shaking-hands Partners . Our engineering team remote help is ready for you 24-hours . |
