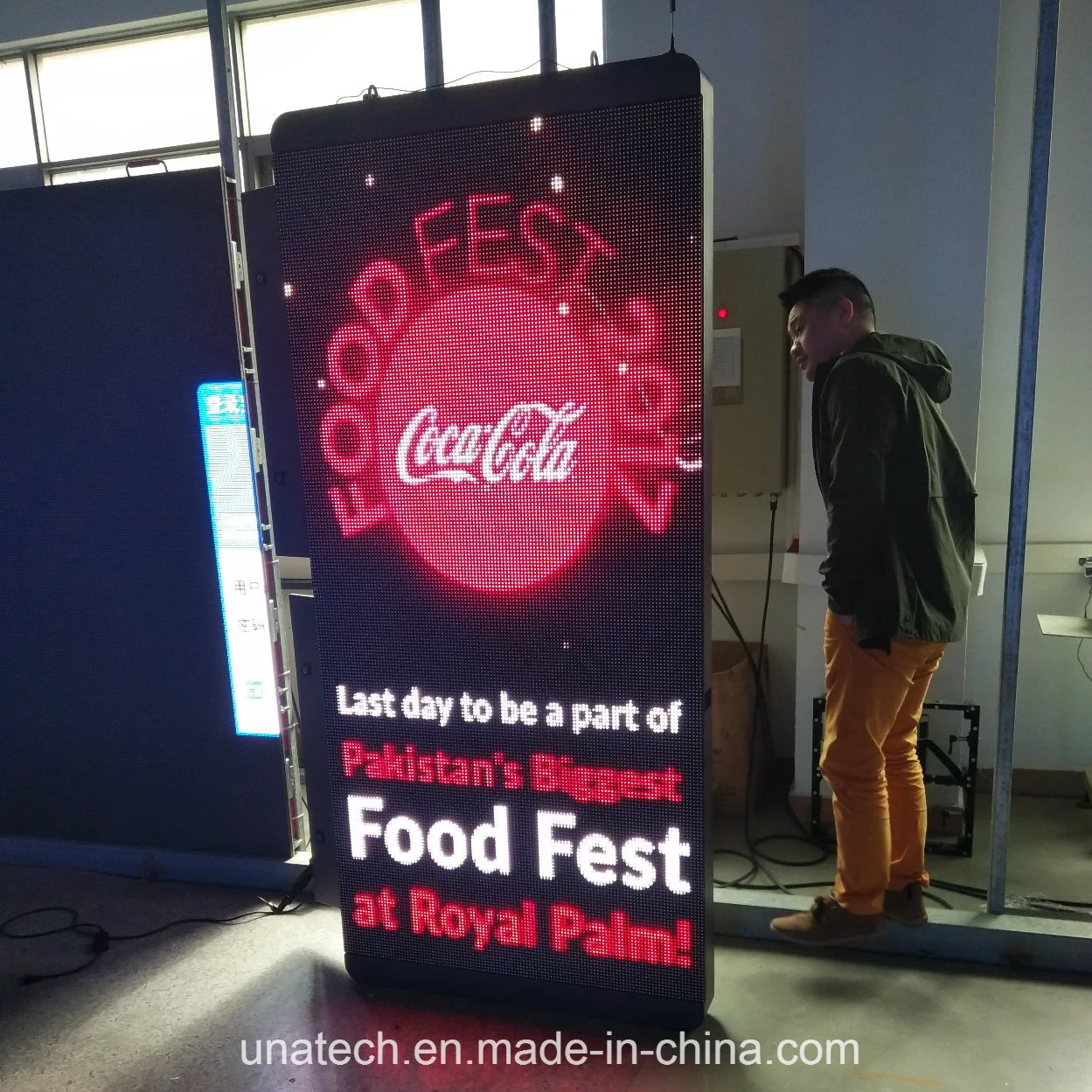

Street Pole Outdoor Media Advertising Digital Sign LED Display Screen
1. Product Description:
2. Advantages:
A: High refresh rate: With NOVAstar control system,no scanning line when photographed
B: High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect
C: High resolution: The most apparent features of the new generation of LED display
D: Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
E: High Brightness: 6000-8000cd/m2, brightness automatically adjusted
F: High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
G: Long life span: over100,000hours, warranty at least 2 years.
H: You need = We design: Provide Personal- Customized led offer.
Workshop:
Exhibitions:
Certificates:
Professional Manufacturer:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
1. Product Description:
| Type | PH3 | PH4 | PH5 | PH6 |
| Pixel Pitch | 3mm | 4mm | 5mm | 6mm |
| LED type | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Pixel Density(dot/m2) | 111111 | 62500 | 40000 | 27777 |
| Module Size(mm) | 192x96 | 256x128 | 160x160 | 192x96 |
| Module Resolution(dot) | 64x32 | 64x32 | 32x32 | 32x16 |
| Display Area | 60'' | 60'' | 60'' | 60'' |
| Cabinet Size(mm) | 820x1600x80 | 820x1600x80 | 800x1600x115 | 768x1604x127 |
| Cabinet Resolution(dot) | 256x448 | 192x320 | 160x256 | 128x224 |
| Cabinet Weight(kg) | 55 | 50 | 55 | 55 |
| View Distance | >2.5m | >3m | >4m | >5m |
| Gray scale | 14bit | 14bit | 14bit | 14bit |
| Refresh Rate | >=960Hz | >=960Hz | >=960Hz | >=960Hz |
| Driving Mode | 1/32 scan | 1/32 scan | 1/16 scan | 1/16 scan |
| Brightness | 5000cd/m2 | 5000cd/m2 | 5000cd/m2 | 6000cd/m2 |
| Power Comsumption(max.) | 1000w | 720w | 800w | 1000w |
| Power Comsumption(ave.) | 300w | 210w | 280w | 300w |
| View Angle | H:120 V:120 | |||
| Brightenss adjustment | 0-100 levels adjustable | |||
| Control type | Nonsynchronous or Synchronous | |||
| Opertaion Power(w) | AC100-240V; 50/60Hz | |||
| Runing Temperature | -20ºC~+60ºC | |||
| Storage Temperature | -35ºC~+85ºC | |||
| Humidity | 10% ~90% | |||
| Lifespan | 100,000H | |||
| Waterproof IP rate | IP65 | |||
| Suitable | Outdoor | |||
A: High refresh rate: With NOVAstar control system,no scanning line when photographed
B: High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect
C: High resolution: The most apparent features of the new generation of LED display
D: Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
E: High Brightness: 6000-8000cd/m2, brightness automatically adjusted
F: High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
G: Long life span: over100,000hours, warranty at least 2 years.
H: You need = We design: Provide Personal- Customized led offer.
