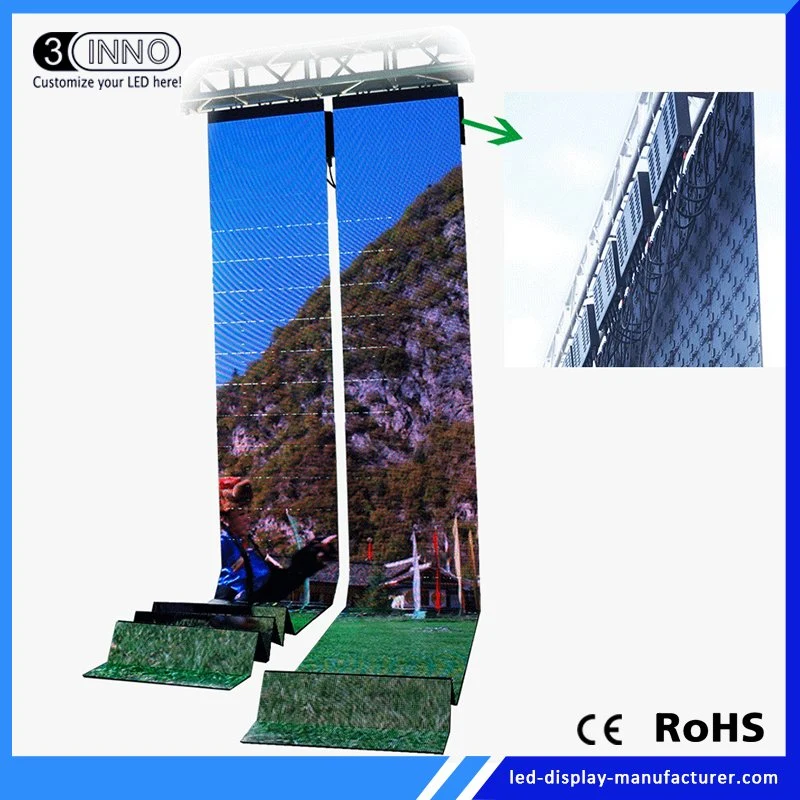

Space Saving Flexible LED Display Outdoor LED Screen For Stage
Flexible LED Display is a great creative design in LED display area. It very lightweight and easy to installation, that make it become more and more popular in the market.Because of the high definition and sharpness, it is widely used for indoor and outdoor clear image and video show with very short veiwing distance, for example, 3D cinema, product demonstration, exhibtion, TV studio,Concerts,Wedding party, etc
Product Detail
Ultra light and flodable.
High resolution&brightness&refresh rate.
Quick installation
1. Install a metal sheet on the wall
2. Apply the screen to the metal sheet
3. Put the control box on the ceiling
4. Connect well the cable and turn on the screen
Flexible LED Display is a great creative design in LED display area. It very lightweight and easy to installation, that make it become more and more popular in the market.Because of the high definition and sharpness, it is widely used for indoor and outdoor clear image and video show with very short veiwing distance, for example, 3D cinema, product demonstration, exhibtion, TV studio,Concerts,Wedding party, etc
Product Detail
Ultra light and flodable.
High resolution&brightness&refresh rate.
Quick installation
1. Install a metal sheet on the wall
2. Apply the screen to the metal sheet
3. Put the control box on the ceiling
4. Connect well the cable and turn on the screen
Portable LED Display benefits
1.Save transportation and warehousing cost
2.Save installation time
3.Save labor cost
4.Space-efficient packaging
| LED Flexible/Foldable Display Specification | ||||||||||||
| OPTICAL | Pixel Pitch | mm | P6 | P7.8 | P7.8 | P7.8 | P9.375 | P10.4 | P12.5 | P15.6 | ||
| LED Type | - | SMD3528 | SMD3528 | SMD2727 | SMD3528 | SMD2727 | SMD3528 | SMD3535 | SMD2727 | SMD3535 | SMD2727 | |
| Brightness(Adjustment) | cd/m² | 2000 | 4000 | 8500 | 4000 | 4500 | 2000 | 7000 | 6000 | 5500 | 6000 | |
| Panel Resolution(W*H) | pixels | 32*32 | 32*32 | 32*32 | 24*24 | 24*24 | 16*16 | |||||
| ELECTRICAL | Frame Frequency | Hz/s | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | ||
| Refresh Rate | Hz | 4000 | 8000 | 16000 | 4000 | 8000 | 8000 | 16000 | 16000 | 16000 | 32000 | |
| Ave Power Consumption | W/m² | 150 | 310 | 325 | 100 | 200 | 150 | 220 | 230 | 160 | 230 | |
| Drive Voltage | DC | 24V | 24V | 24V/48V | 24V | 24V | 24V | 24V | 24V/48V | 24V | 24V/48V | |
| Scan mode | - | 16 | 8 | 4 | 16 | 8 | 8 | 4 | 4 | 4 | 2 | |
| MECHANICAL | Panel Weight | kg/pcs | 0.42 | 0.9 | 0.75 | 0.7 | 0.97 | 0.9 | 1.04 | 0.9 | ||
| Panel Size | mm | 192*192 | 250*250 | 300*300 | 250*250 | 300*300 | 250*250 | |||||
| Foldable angle | degree | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
| Magnet | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| Single-sided thickness | mm | 15 | 15 | 16 | 16.5 | 16.5 | 15 | 16.5 | 15 | |||
| Double-sided thickness | mm | 30 | 30 | 32 | 33 | 33 | 30 | 33 | 30 | |||
| IP Rating | - | IP43/IP54 | IP43/IP54 | IP65 | IP43/IP54 | IP54/IP65 | IP43/IP54 | IP54/IP65 | IP65 | IP65 | IP65 | |
| Max Length of control box | m | 6 | 12 | 12 | 12 | 9 | 14.25 | 12 | 24 | |||
| Application | - | Indoor | Indoor | outdoor | Indoor | outdoor | Indoor | outdoor | outdoor | outdoor | outdoor | |
