P7.8mm High Brightness Waterproof LED Display Board LED Display
PRODUCT DESCRIPTION
1. Die-cast aluminum box, the accuracy of up to +/- 0.1mm, good flatness, seamless splicing
2. High contrast, high refresh rate, image playback without delay, smear;
3. Light, the weight of only 7.5kg box, one hand can be mentioned
4. Quick lock design, the cabinet can be quickly and easily installed dis-assembly
5. Horizontal viewing angle of up to 140, muti-directional viewing effect such as one
SPECIFICATION
2. High contrast, high refresh rate, image playback without delay, smear;
3. Light, the weight of only 7.5kg box, one hand can be mentioned
4. Quick lock design, the cabinet can be quickly and easily installed dis-assembly
5. Horizontal viewing angle of up to 140, muti-directional viewing effect such as one
SPECIFICATION
| OPTICAL | Pixel Pitch | mm | 7.8mm |
| LED No. Per Pixel | pcs/pixel | 1 | |
| Brightness (Adjustment) | cd/m² | 5000 | |
| LED Encapsulation | - | SMD3535 | |
| Cabinet Resolution(W*H) | dots | 64*64 | |
| Pixel Density | dots/sqm | 16,384 | |
| Viewing Angle(H/V) | degree | H140°/V120° | |
| Color Depth | bit | 16bit | |
| ELECTRICAL | Frame Frequency | Hz/s | 50/60 |
| Refresh Rate | Hz | 2400 | |
| Max Power Consumption | W/m² | 150 | |
| Ave Power Consumption | W/m² | 75 | |
| Working Voltage | AC | AC110~ 240V | |
| Drive Voltage | DC | 5V | |
| Working Temperature | ºC | 0°C~40°C | |
| Humidity | - | 10%-90%RH | |
| Panel Weight | kg/pcs | 8 | |
| Weight Per Tile | lbs | 17.65 | |
| Cabinet Size | mm | 500*500 | |
| IP Rating(Front/Rear) | - | IP65 | |
| Lifetime | hours | 100,000 | |

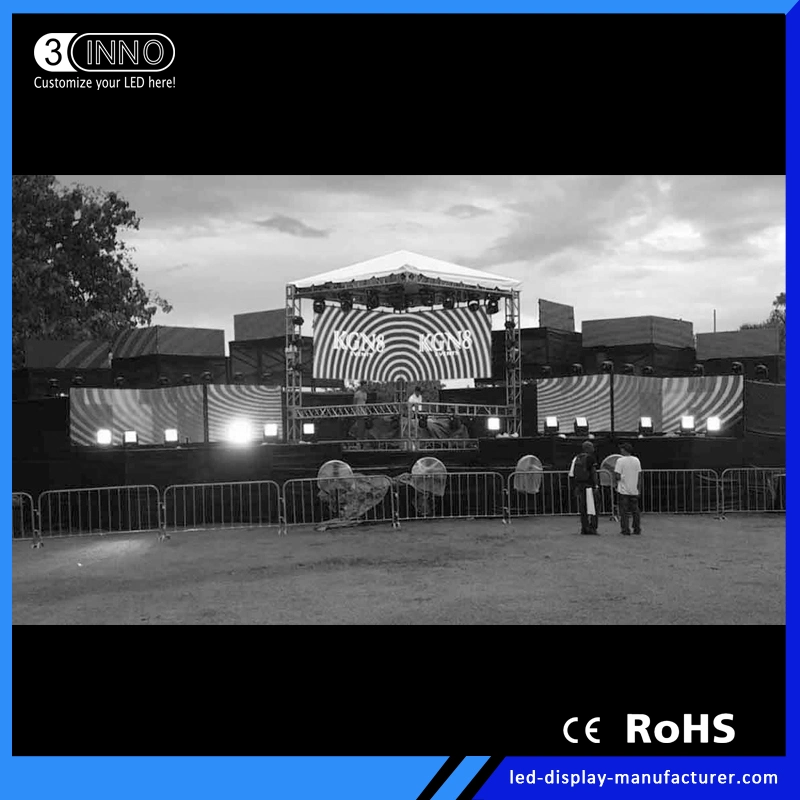

| Application | - | outdoor |
