P3 Indoor Stage LED Wall LED Video Wall
Product key features:
1.Use Die-Casting Aluminum, with additional strengthening bracket inside, anti-tensiling and shockproof, without deformation lasting for 10 years.
2.Features with light weight, thin body, silent working, and speedy heat venting, with nice appearance.
3.Equipped with locks at four sides, can be hoisted and piled up. Smooth and steady.Fast assembling and disassembling
4.Singnal and power indicator light at outside of the cabinet, working status under watching, immediately response once fault happened.

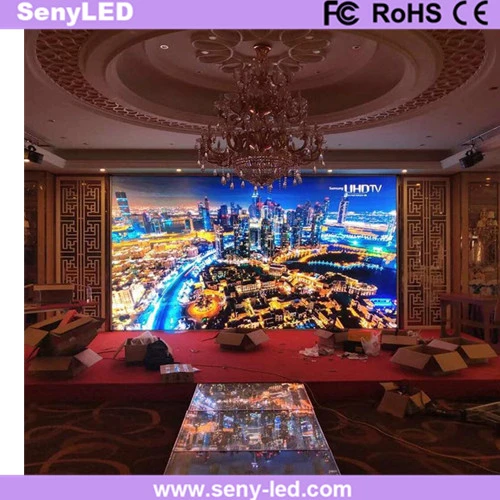

Project cases:
Packaging and delivery:
Our service
1. Your inquiry about our products or price will be replied in 24hrs
2. OEM&ODM, any of your customized requirement we can help to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality + Reasonable price + Responsible After Service=Successful & Win-Win
6. SENY can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Product key features:
1.Use Die-Casting Aluminum, with additional strengthening bracket inside, anti-tensiling and shockproof, without deformation lasting for 10 years.
2.Features with light weight, thin body, silent working, and speedy heat venting, with nice appearance.
3.Equipped with locks at four sides, can be hoisted and piled up. Smooth and steady.Fast assembling and disassembling
4.Singnal and power indicator light at outside of the cabinet, working status under watching, immediately response once fault happened.
| P3 Indoor Stage LED Wall LED Video Wall | ||||||||
| S/N | Item | Technical Parameters | ||||||
| LED Parameters | ||||||||
| 1 | Item Name | LED Chip Brand | Brightness | Wave Length | H/V Visual Angle | |||
| 2 | Red LED | Epistar | 120-140mcd | 620-625nm | 140º/120º | |||
| 3 | Green LED | Epistar | 360-435mcd | 520-525nm | 140º/120º | |||
| 4 | Blue LED | Epistar | 80-100mcd | 470-475nm | 140º/120º | |||
| Module Specification | ||||||||
| 1 | Pixel Pitch | 3mm | ||||||
| 2 | Pixel Configuration | smd2121(1R1G1B) | ||||||
| 3 | Module Resolution | 64 x 64 pixels | ||||||
| 4 | Module Pixles | 4096 pixels | ||||||
| 5 | Module Size | 192mm X 192mm | ||||||
| Cabinet Specification | ||||||||
| 1 | Cabinet Size(W X H X D) | 576mm x 576mm x 80mm | ||||||
| 2 | Cabinet Resolution(dot) | 192 x 192 pixels | ||||||
| 3 | Module Quanity (pcs) | 9pcs | ||||||
| 4 | Cabinet Pixels | 36864 pixels | ||||||
| 5 | Pixel Density | 111111 pixels/m2 | ||||||
| 6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose | ||||||
| 7 | Cabinet Weight | 9.2kg per cabinet | ||||||
| 8 | Packaging | Fly case | ||||||
| 9 | Fly Case Size | 77CM*63CM*80CM ( one case for six cabinets ) | ||||||
| Whole Screen Specification | ||||||||
| 1 | Screen Brightness | ≥1200cd/m2 | ||||||
| 2 | Driving Method | 1/32 scan | ||||||
| 3 | Best Viewing Distance | 3m - 30m | ||||||
| 4 | Max. Power Consumption | 1000W/m2 | ||||||
| 5 | Average Power Consumption | 500W/m2 | ||||||
| 6 | Gray Level | 8bits input, 4096 levels(212) | ||||||
| 7 | Display Color | 16M | ||||||
| 8 | Frame Frequency | ≥60Hz | ||||||
| 9 | Refresh Frequency | ≥1200Hz | ||||||
| 10 | Uninterrupted Working Hours | ≥72 hours | ||||||
| 11 | Screen Life-span | ≥100,000 hours | ||||||
| 12 | MTBF | ≥5,000 hours | ||||||
| 13 | Discrete Blind Spot Rate | <1/10000 | ||||||
| 14 | Continuous Blind Spot Rate | None | ||||||
| 15 | Blind Spot Rate | <1/10000 | ||||||
| 16 | Protective Scale | For indoor use only | ||||||
| 17 | Screen Plainness | <±1mm | ||||||
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||||||
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius | ||||||
| Humidity:10%~90% RH | ||||||||
| 20 | Control Mode | Synchronous display with control PC by DVI | ||||||
| 21 | Control System | Linsn, Nova-star, Colorlight or as you required | ||||||
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | ||||||
| 23 | Interface | Standard Ethernet | ||||||
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m | ||||||
| 25 | Certificate | CE, RoHS, FCC | ||||||
