According to customer requirements and the sites environment, customize the most appropriate solutions.
Features:
1) Die-casting Aluminum
Ultra-thin-the box adopts die-casting aluminum molding, high strength, strong toughness, high precision, not easy to deformation, good heat dissipation.
2) Wonderful Stage Visual Effect
4000:1 contrast ratio, 16bit grey level, 1920~3840Hz Refresh Rate
3) Wide Viewing Angle
Ensure the wide viewing angle by tracking strictly on production process control and using good led lamp.
4) Fast Installation
Fast-cabinet upper and lower around the use of fast locking mechanism, 10 seconds to complete a cabinet installation, high installation accuracy.
5) Concave and Convex Screen
Flat and curve fast lock are both compatible on the same cabinet.
Parameters:
| BIR-I-2X | BIR-I-2 | BIR-I-3 | |
| Physical Pitch | 2.6mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147456 pixels/m² | 112896 pixels/m² | 65536 pixels/m² |
| Module Dimensions (W× H) (mm) | 500x125/500x125 | 250x250/250x500 | 250x250/250x500 |
| Panel Dimensions (mm) | 500x500x80 | 500x500x80 | 500x500x80 |
| 500x1000x80 | 500x1000x80 | 500x1000x80 | |
| NO .of Modules Per Panel (W × H) | 1X4/1X8 | 2x2 | 2x2 |
| Physical Resolution of Module ( W× H) | 192x48/192x48 | 84x84/64x168 | 64x64/64x128 |
| Panel Material | 192x192/192x384 | 168x168/128x336 | 128x128/128x256 |
| Single Cabinet Weight | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4000 : 1 | 4000 : 1 | 4000 : 1 |
| Average Power Consumption | 60/120W/m² | 60/120W/m² | 60/120W/m² |
| Max Power Consumption | 110/400W/m² | 110/400W/m² | 110/400W/m² |
| Operating Temperature | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC |
| Storage Temperature | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness | 900-1200 nits | 900-1200 nits | 900-1200 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 |
| Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan |

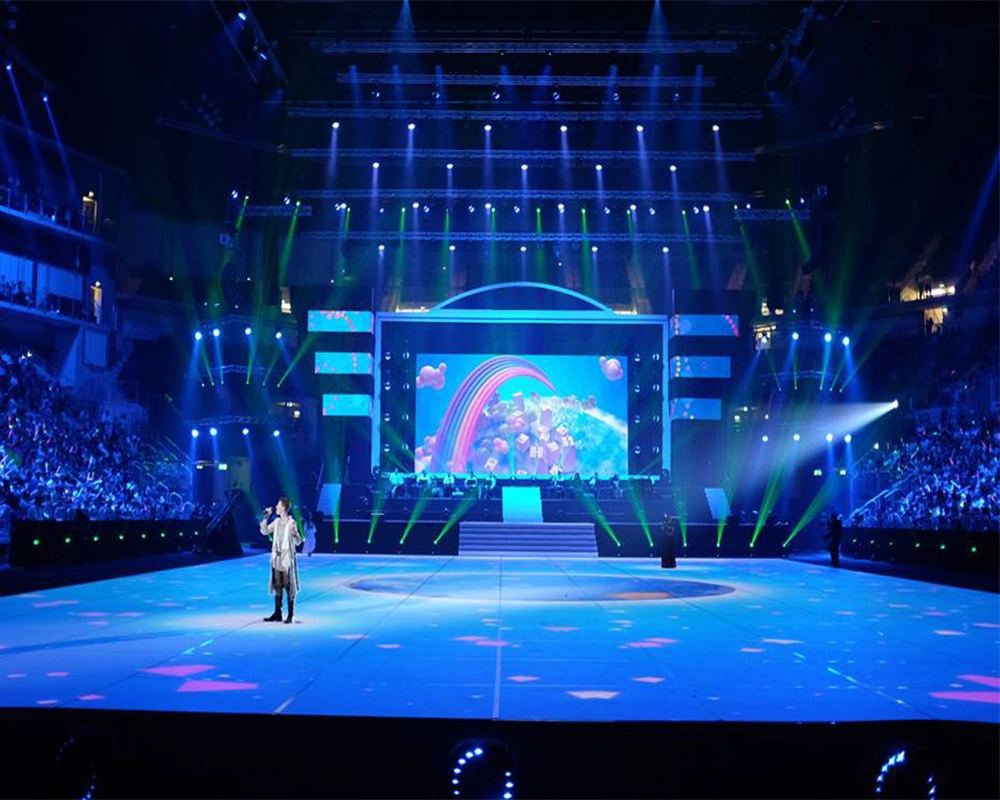

Application Reference:
Company introduction:
1) Rich experience: established in 2005; experienced in technical and material about LED display.
2) Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
3) Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
4) Good quality:All products have passed CE, ROHS, FCC certification.
5) Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
6) We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
FAQ:
Q1: The warranty of your LED Display Board ?
A: We offer 2-3 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Q2: Whats your payment term? How long it takes to delivery?
A: We normally accept T/T and L/C,and other payment options is negotiable for your convenience. A 30% deposit is needed in advance, and the rest 70% be paid before delivery. Our average lead time is 15 days.
Q3: Can I have a sample order for led module?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
