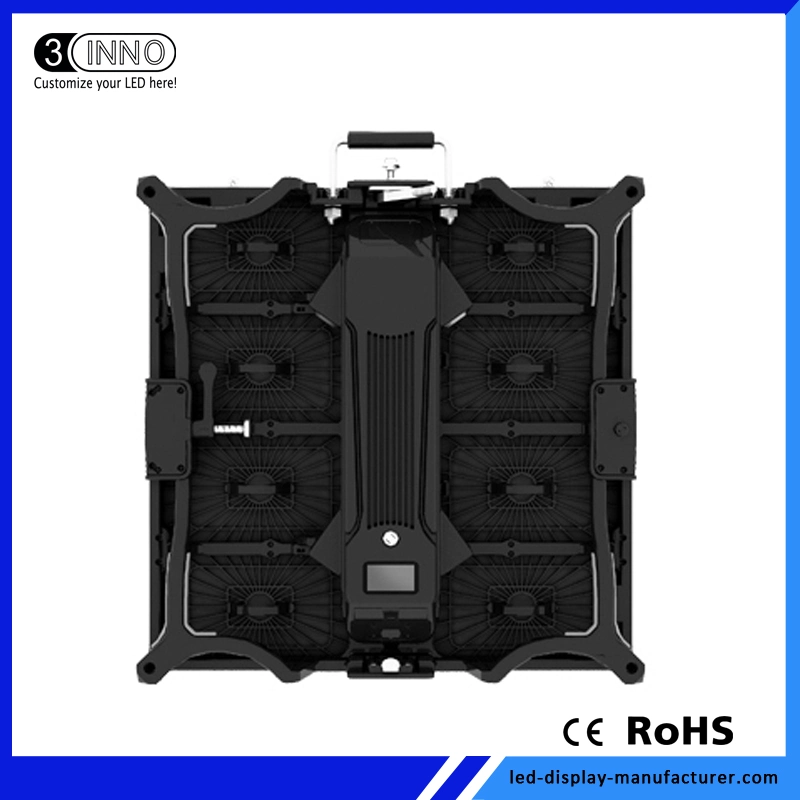

P2.5mm High Contrast Ratio RGB LED Video Wall Displays
PRODUCT DESCRIPTION
1. light and slimCabinet thickness only 60mm, panel weight 10KG,super light and slim, good for installation and transportation.
2. IntelligentIntelligent cloud group control. One network equipment can do the management and monitoring of all screens.
3. Support spot inspectionSpot inspection supported. Each panel's led lamp status can be replied to the end-user through the group control system, easier and faster for maintenance.
4. Convenient installationCan be installed on the wall, saving space.Three in one installation bar, fast and easy to operate Hanging installation, stacking installation, front installation and other installations are available.
5. Easy maintenanceTotal front service Modules, power supplies, and receiving cards can be maintained from the front.
SPECIFICATION
PRODUCT PROCESS
CERTIFICATE
PRODUCT DESCRIPTION
1. light and slim
2. Intelligent
3. Support spot inspection
4. Convenient installation
5. Easy maintenance
| OPTICAL | Pixel Pitch | mm | 2.5mm |
| LED No. Per Pixel | pcs/pixel | 1 | |
| Brightness(Adjustment) | nit | 1200 | |
| Cabinet Resolution | dots | 240*125 | |
| Pixel Density | dots/sqm | 160,000 | |
| Viewing Angle(H/V) | degree | H120/V120 | |
| Color Depth | bit | 14bit | |
| Grey Scale | - | 14bit | |
| ELECTRICAL | Frame Frequency | Hz/s | ≥60Hz |
| Refresh Rate | Hz | 1920 | |
| Max Power Consumption | W/m² | 600 | |
| Ave Power Consumption | W/m² | 200 | |
| Working Voltage | AC | AC200-220V | |
| Module Voltage | DC | 5V | |
| Working Temperature | ºC | -0ºC 40ºC | |
| Humidity | - | 10%~98%RH | |
| MECHANICAL | Frame Material | - | Aluminum |
| Net Weight | kg/pcs | 6 | |
| Weight Per Tile | lbs | 13.24 | |
| Cabinet Size | mm | 600*300 | |
| Optimum Viewing Distance | m | 2-5m | |
| IP Rating(Front/Rear) | - | IP40 | |
| Lifetime | hours | 100,000 | |
| Application | - | Indoor |
