BOF-B Series

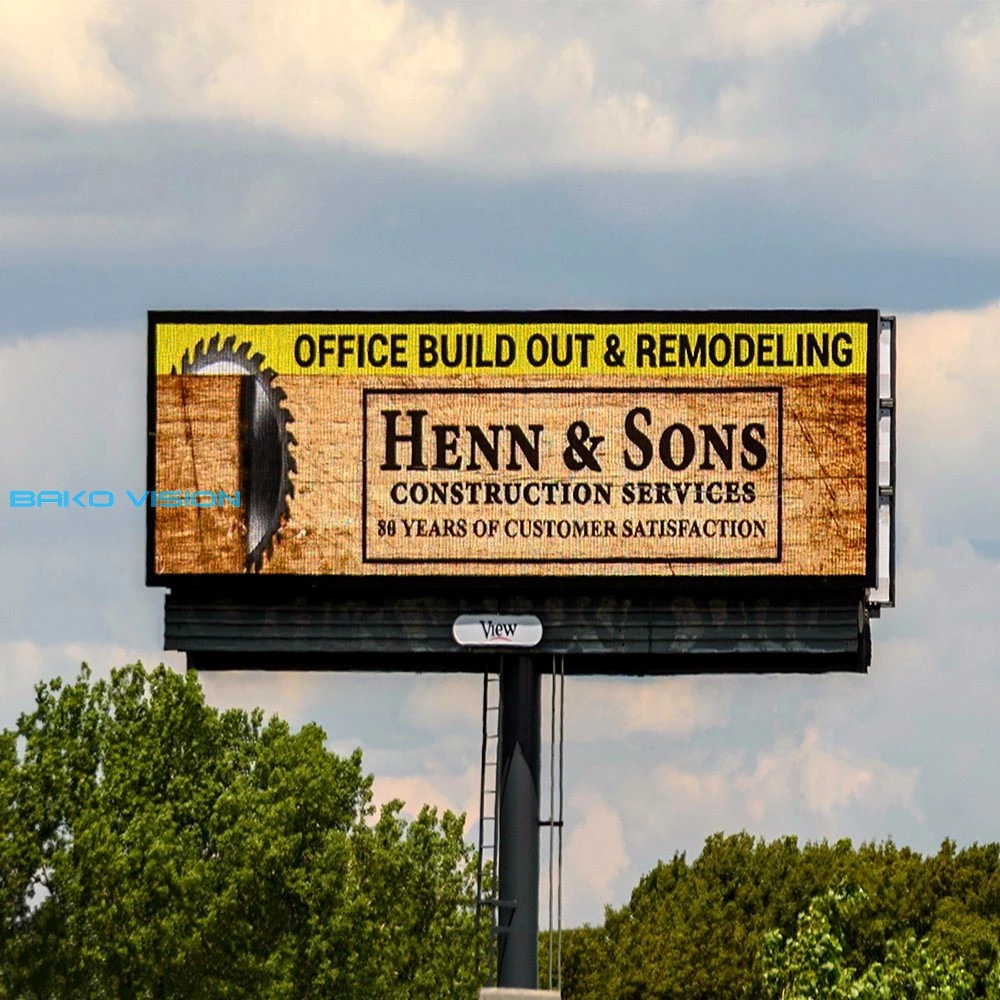

Outdoor LED Billboard
Key Features
- Customized Cabinet Size and Design.
- Steel/ Aluminum/Magnesium alloy Cabinet.
- Back Service.
- SMD 3in1 Technology.
- Waterproof with IP65.
- Wide View Angle.
Electricity Parameter
| BOF-4 | BOF-5 | BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Dimensions | 320×160mm | ||||
| Panel Dimensions(W × H) | Customized | ||||
| Physical Resolution of Module (WxH) | 80x40 | 64x32 | 48×24 | 40x20 | 32×16 |
| Panel Material | Steel/Aluminum/Magnesium alloy | ||||
| Grayscale | 16bit | ||||
| Colors | 281trillion | ||||
| Average Power Consumption | 360 W/m2 | ||||
| Max. Power Consumption | 900 W/m2 | ||||
| Refresh Rate | >1920Hz | ||||
| Brightness | > 5000 nits | > 5500 nits | > 6000 nits | > 6200 nits | > 6500 nits |
| Expected Lifetime | 100,000 Hrs | ||||
| Maintenance Way | Rear | ||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||
How many Outdoor LED Billboards Installation ways do you know ?
1. Inside wall LED Screens installation
2. Wall mount LED Screens installation
3. Standing column LED screens installation
4. Sport area LED screens installation
5.Top building LED screens installation
6.Wall hanging LED screens installation
7. Hanging LED screens installation
8. Standing floor LED screens installation
About Bako Vision
- Chinese Listed Company.
- 10+ Years Experience on LED Display Screen Manufacturing in China.
- Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
- Overseas Customer in 120+ Countries in The World.
- Full Capable to Provide the Tailor Work of OEM, ODM.
FAQ:
Q1. What is DIP?
A1: DIP is the abbreviation of DOUBLE IN-LINE PACKAGE, which is assembled in a double in-line.
Q2. What is SMT? What is SMD ?
A2: SMT is a surface assembly technology ( SURFACE MOUNTED TECHNOLOGY ) and is currently the most popular technology and process in the electronics assembly industry; SMD is a surface mount device ( SURFACE MOUNTED DEVICE ).
Q3. What is DIP LED module technology, what are the advantages and disadvantages?
A3: It means that the lamp of DIP package passes the lamp foot through the PCB board, and the tin is filled in the lamp hole by soldering. The module made by this process is the plug-in lamp group. The advantages are: high brightness, good heat dissipation, and the disadvantage is The pixel density is small.
Q4. What is surface mount SMD technology module? What are the advantages and disadvantages?
A4: The surface mount is also called SMT. The SMT packaged lamp is soldered to the surface of the PCB board through the soldering process. The lamp pins do not need to pass through the PCB board. The module made by this process is called the surface mount module. The advantage is that the display effect is good. Large pixel density, suitable for indoor viewing: the disadvantage is that the brightness is not high enough, the lamp itself is not good enough.
