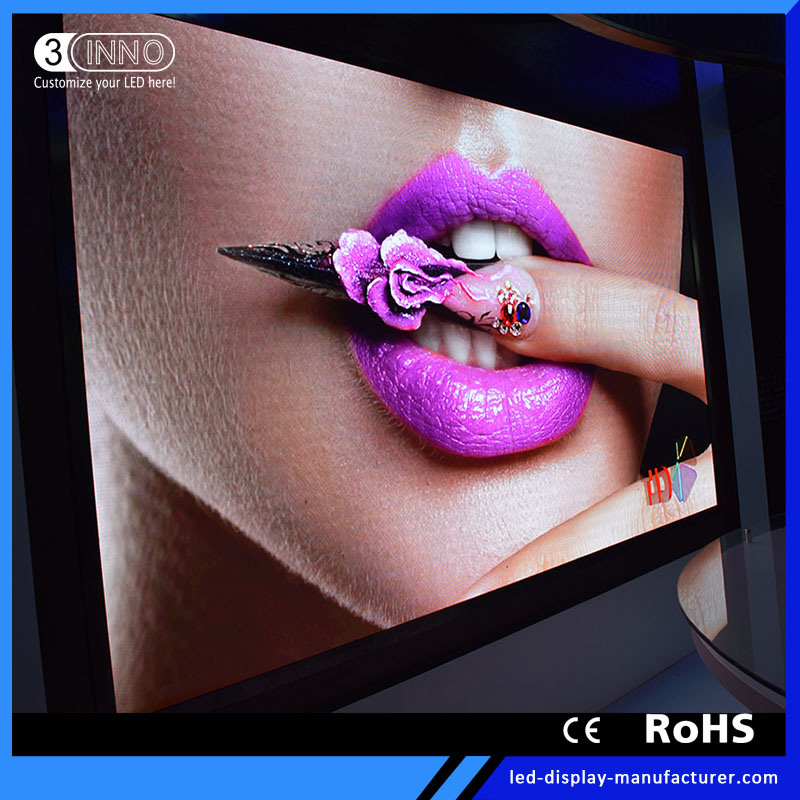

P3.9mm High Refresh Rate Indoor Rental LED Panel Screen/LED Display for Advertisement
3Cinno Diecasting rental LED display indoor/outdoor series features lightweight profile, perfectly designed for rental and staging world. Whether it be a massive display configuration or more flexible arrangement, setup and teardown takes no added effort. Use it for product launch, corporate events, TV shows, festives, concert touring, sporting events, etc.
Features:
Specification
Project:
3Cinno Diecasting rental LED display indoor/outdoor series features lightweight profile, perfectly designed for rental and staging world. Whether it be a massive display configuration or more flexible arrangement, setup and teardown takes no added effort. Use it for product launch, corporate events, TV shows, festives, concert touring, sporting events, etc.
Features:
1. Light & Slim Panel
Each panel is carefully crafted and only weighs at 8.5kg.
2. Seamless Design
Every Panel is manufactured with CNC auto-machines of high precision so that to
guarantee its seamless during assembly.
3. Same Panel Dimension with Different Pixel Pitches Makes Your Show More Innovative
R3, R3, R4, R3T and R4T are creatively designed all at the dimension of 500*500,which enables free piece-together.
4. Noise-free & Energy-saving Design
Fanless design could reduce the operation noise to the minimum, and die-casting aluminum panel of great dissipation could save your electricity cost substantially.
Specification | OPTICAL | Pixel pitch | mm | 3.9 |
| LED no. per pixel | pcs/pixel | 1 | |
| Brightness | cd/ m2 | 1100 | |
| LED Encapsulation | - | SMD2121 | |
| Cabinet Resolution | dots | 128*128 | |
| Pixel Density | dots/sqm | 65,536 | |
| Viewing angle(H/V) | degree | 160/160 | |
| Color depth | bit | 14 | |
| Grey Scale | bit | 16,384 | |
| ELECTRICAL | Frame frequency Hz/S | Hz/s | 50/60 |
| Contrast ratio | - | 3000:1 | |
| Refresh Rate | Hz | 1920 | |
| Max Power Consumption | W/m² | 520 | |
| Ave power consumption | W/m² | 150 | |
| Working Voltage | AC | AC110V~ 220V ±10% | |
| Humidity | - | 10%~90% | |
| Driving Method | - | 1/16scan | |
| MECHANICAL | Frame material | - | Die-casting Aluminum |
| Net weight | kg/pcs | 8.2 | |
| Weight per tile | lbs | 18.09 | |
| Cabinet Size | mm | 500*500*82 | |
| Optimum Viewing Distance | m | 4 | |
| IP rating(front/ rear) | - | IP40 / IP30 | |
| Lifetime | hours | 100,000 |
Project:
