P4mm High Precision RGB Diecasting Cabinet Indoor LED Video Wall LED Display
PRODUCT DESCRIPTION · Support for both front and rear maintenance.
· Uniform color and high contrast ensure clear and sharp picture .
· High precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display.
· Fan-less design with good dissipation guarantees noise-free effect.
· Light and slim panel is easy to handle and transport.
· High stability and reliability prolong the lifespan of LED display.
PROJECT
SPECIFICATION
PRODUCT PROCESS
CERTIFICATE
PRODUCT DESCRIPTION
· Uniform color and high contrast ensure clear and sharp picture .
· High precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display.
· Fan-less design with good dissipation guarantees noise-free effect.
· Light and slim panel is easy to handle and transport.
· High stability and reliability prolong the lifespan of LED display.

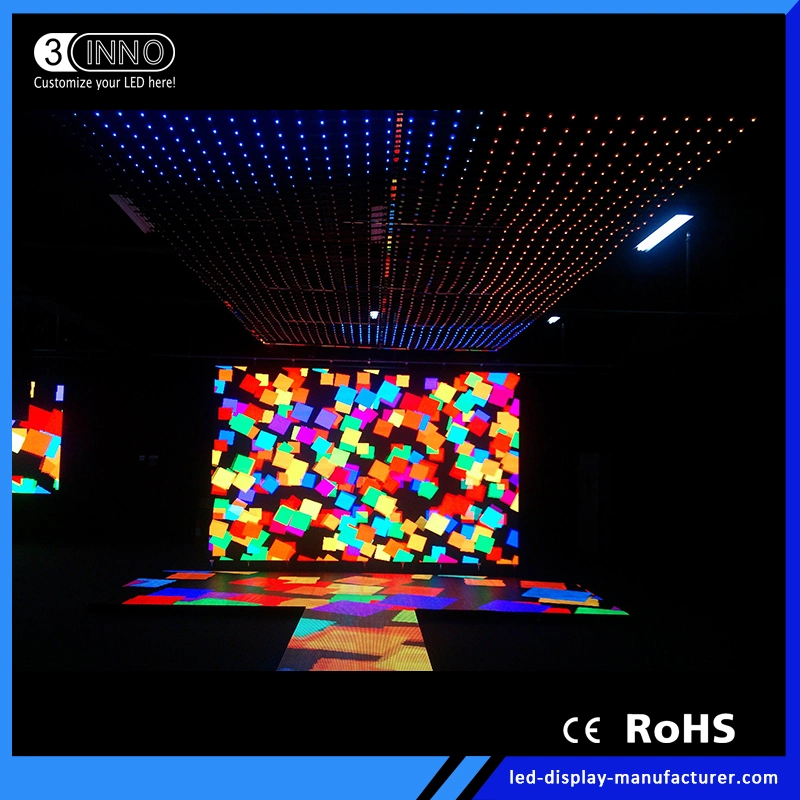

PROJECT
| OPTICAL | Pixel Pitch | mm | P4 |
| LED No. Per Pixel | pcs/pixel | 1 | |
| Brightness(Adjustment) | cd/m² | 1200 | |
| Cabinet Resolution | dots | 144*144 | |
| Pixel Density | dots/sqm | 62,500 | |
| Viewing Angle(H/V) | degree | H/V160 | |
| Color Depth | bit | 12/14/16 | |
| Grey Scale | - | 14bit | |
| ELECTRICAL | Frame Frequency | Hz/s | ≥60 |
| Refresh Rate | Hz | 3840 | |
| Max Power Consumption | W/m² | 570 | |
| Ave Power Consumption | W/m² | 143 | |
| Working Voltage | AC | AC110-220 V | |
| Drive Voltage | DC | 5V | |
| Working Temperature | ºC | -20-50 | |
| Humidity | - | 10%-90% | |
| MECHANICAL | Frame Material | - | Diecasting Aluminum |
| Net Weight | kg/pcs | 11 | |
| Weight Per Tile | lbs | 24.27 | |
| Cabinet Size | mm | 576*576 | |
| Optimum Viewing Distance | m | 4-12m | |
| IP Rating(Front/Rear) | - | IP30 | |
| Lifetime | hours | 100,000 | |
| Service Access | - | front/rear | |
| Application | - | Indoor |
