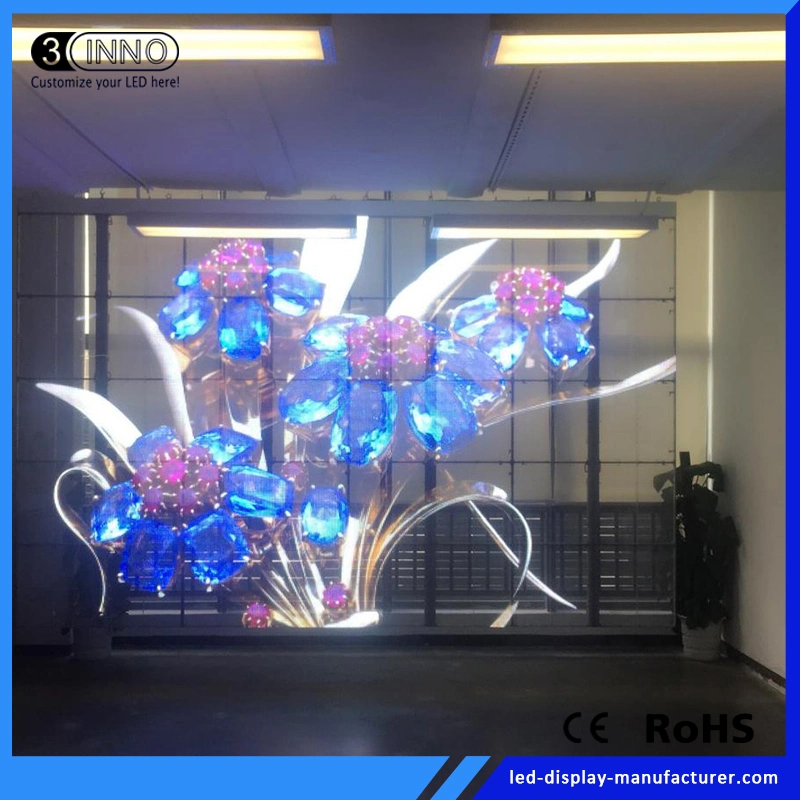

P7.8/7.8mm High Definition Window Glass LED Display Transparent LED Video Display
Transparent LED Display is no doubt the best choice as windows ads player, without sacrifice ventilate and natural light with the 48%~85% transparency, you won't miss any view from it. Transparent LED Display is ultra slim and thin, easy for installation and transportation, time and labor efficient. The quick lock system of Transparent LED Display secured quick and fast connection. Integrated power and data cables save lots of trouble when installing Transparent LED Display and make it looks tidy and elegant. Transparent LED Display can only be installed indoors, but also viewable from outside of the building, high brightness and high definition making a stunning effect of your ads to passers.
48%~70% Transparency
See-through Effect, Dynamize the Glass
With transparency up to 70%, you can mount clear LED displays over the shopping window or glass façade without blocking the natural light to your place. It turns the glass wall into a dynamic message platform attracting passers-by while revealing the inside view of your business space.
Viewable From Outdoor
Installed Indoor, Viewable Outdoor
Although mounted only indoor, the optional high brightness enables direct view from outside of the building. With brightness up to 4200 nits, it can be viewed in the day within short distance.
Modern Aesthetics
Finely Crafted, Pleasantly Invisible
Transparent and slim body with no heavy cabinet desired, silver-gray coated center spine that hides simplified cablings and inner components. It looks clean and classic mounted over glass even without noticing, but delivers extraordinary see-through effect when in operation.
Panel Alignment
Double secured
Double secure the panel alignment by setting the square piece and screws to adjacent corners of every four panels.
Easy Cablings, Quick Connection
Integrated Power & Data
Interconnection between panels couldn't be more easier with integrated power and date cables built in the center spine, making cable management to a minimum.
Easy Maintenance
Centralized Management for Power & Data
CLEAR has a center spine that holds all the power and processing with easy back access for service.
Transparent LED Display is no doubt the best choice as windows ads player, without sacrifice ventilate and natural light with the 48%~85% transparency, you won't miss any view from it. Transparent LED Display is ultra slim and thin, easy for installation and transportation, time and labor efficient. The quick lock system of Transparent LED Display secured quick and fast connection. Integrated power and data cables save lots of trouble when installing Transparent LED Display and make it looks tidy and elegant. Transparent LED Display can only be installed indoors, but also viewable from outside of the building, high brightness and high definition making a stunning effect of your ads to passers.
48%~70% Transparency
See-through Effect, Dynamize the Glass
With transparency up to 70%, you can mount clear LED displays over the shopping window or glass façade without blocking the natural light to your place. It turns the glass wall into a dynamic message platform attracting passers-by while revealing the inside view of your business space.
Viewable From Outdoor
Installed Indoor, Viewable Outdoor
Although mounted only indoor, the optional high brightness enables direct view from outside of the building. With brightness up to 4200 nits, it can be viewed in the day within short distance.
Modern Aesthetics
Finely Crafted, Pleasantly Invisible
Transparent and slim body with no heavy cabinet desired, silver-gray coated center spine that hides simplified cablings and inner components. It looks clean and classic mounted over glass even without noticing, but delivers extraordinary see-through effect when in operation.
Panel Alignment
Double secured
Double secure the panel alignment by setting the square piece and screws to adjacent corners of every four panels.
Easy Cablings, Quick Connection
Integrated Power & Data
Interconnection between panels couldn't be more easier with integrated power and date cables built in the center spine, making cable management to a minimum.
Easy Maintenance
Centralized Management for Power & Data
CLEAR has a center spine that holds all the power and processing with easy back access for service.
| Specification | |||
| OPTICAL | Pixel Pitch | mm | 7.8*7.8 |
| Brightness (Adjustment) | cd/m² | 3500 | |
| LED Encapsulation | - | SMD3in1 | |
| Module Resolution(W*H) | pixels | 64*64 | |
| Pixel Density | dots/sqm | 16,384 | |
| Viewing Angle(H/V) | degree | 120 | |
| Transparent Rate | - | 82% | |
| Grey Scale | - | 14bit | |
| ELECTRICAL | Frame Frequency | Hz/s | 60 |
| Refresh Rate | Hz | 3840 | |
| Contrast Ratio | - | 1500:1 | |
| Max Power Consumption | W/m² | 400 | |
| Ave Power Consumption | W/m² | 120 | |
| Working Voltage | AC | AC100V-240V | |
| Drive Voltage | DC | 5V | |
| Working Temperature | ºC | -70 | |
| Driving Method | - | 1/4scan | |
| MECHANICAL | Module Size | mm | 1000*500 |
| Net Weight | kg/pcs | 17/20 | |
| IP Rating | - | IP42 | |
| Lifetime | hours | 100,000 | |
| Service Access | - | Back | |
| Application | - | Indoor | |
