P3.1mm High Definition RGB Indoor LED Video Wall LED Display
PRODUCT DESCRIPTION

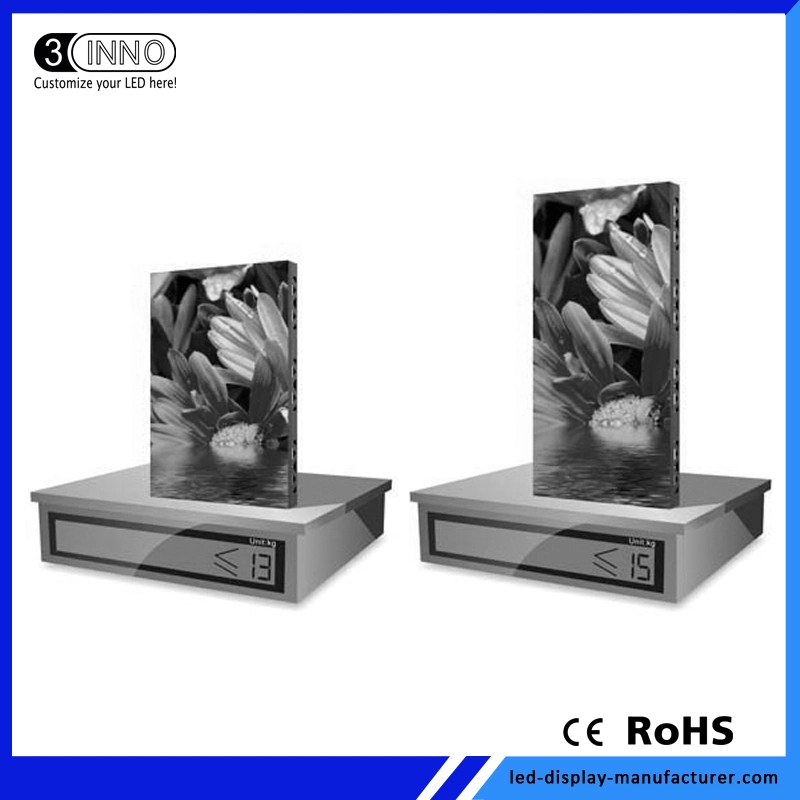

1. Ultra Slim & Light Panel
70mm thick panel with a weight of 12kg/14kg pushes itself to the limit, which saves
cost of supporting structure and transportation .
2. Convenient MaintenanceModule, power supply, receiving card can all be maintained from the front,
and front-accessible design reduces module replacement time down to 5s.
3. No Need of CatwalkA catwalk free solution is achieved by the realization of thorough front installation.
4. Excellent Display Effect3840Hz high refresh rate, uniform color and 160° super wide viewing angle all guarantee an ultimate visual experience. SPECIFICATION
PRODUCT PROCESS
CERTIFICATE
PRODUCT DESCRIPTION
1. Ultra Slim & Light Panel
70mm thick panel with a weight of 12kg/14kg pushes itself to the limit, which saves
cost of supporting structure and transportation .
2. Convenient Maintenance
and front-accessible design reduces module replacement time down to 5s.
3. No Need of Catwalk
4. Excellent Display Effect
| OPTICAL | Pixel Pitch | mm | 3.1mm |
| LED No. Per Pixel | pcs/pixel | 1 | |
| Brightness Adjustment | nit | 900 | |
| LED Encapsulation | - | SMD | |
| Cabinet Resolution | dots | 160*160 | |
| Pixel Density | dots/sqm | 102,400 | |
| Viewing Angle(H/V) | degree | H/V160 | |
| Color Depth | bit | 14bit | |
| Grey Scale | bit | 14bit | |
| ELECTRICAL | Frame Frequency | Hz/s | 50 |
| Refresh Rate | Hz | 3840 | |
| Contrast Ratio | - | 5000:1 | |
| Max Power Consumption | W/m² | 490 | |
| Ave Power Consumption | W/m² | 123 | |
| Working Voltage | AC | 110/240 | |
| Module Voltage | DC | 5V | |
| Working Temperature | ºC | -20~+50 | |
| Humidity | - | 10%-90%RH | |
| MECHANICAL | Frame Material | - | Die-casting Aluminum |
| Module Size | mm | 250*250 | |
| Net Weight | kg/pcs | 8 | |
| Weight Per Tile | lbs | 17.65 | |
| Cabinet Size | mm | 500*500*92 | |
| Optimum Viewing Distance | m | ≥3 | |
| IP Rating(Front/Rear) | - | IP30 | |
| Lifetime | hours | 100,000 | |
| Applicaton | - | Indoor |
