Indoor Rental LED Display Features:
1. UI LCD display(optional)
The rear LCD display shows voltage, temperature, cabinet operating time and total hours of operating. Power and signal lamps indicates cabinet status.
2. Dual data connection
There is optional data connecting port on bottom of LCD box, you can use if standard one fails.
3. Strong Locks for hanging installation
A:The cabinets locks are smooth edged, easy handling and strong that you can hang up to 20pcs cabinet in vertical.
B:No tools are required for installation of screen.
C:Handle is innovative, grip and wide for easy handling.
4. Clean and beautiful design
A: Cables-less between modules
B: Fanless design
C: High-presicion die-casting aluminum cabinet
5. Sleek and Slim design
500x1000mm cabinets can be mixed assembly.
The cabinet is slim and smooth edged surface makes you handle safely.
6. Concave or Convex
Cabinet can make curved shape,from -10 to +10 degree.
Indoor Rental LED Display Parameters:
| BIR-I-2X | BIR-I-2 | BIR-I-3 | |
| Physical Pitch | 2.6mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147456 pixels/m² | 112896 pixels/m² | 65536 pixels/m² |
| Module Dimensions (W× H) (mm) | 500x125/500x125 | 250x250/250x500 | 250x250/250x500 |
| Panel Dimensions (mm) | 500x500x80 | 500x500x80 | 500x500x80 |
| 500x1000x80 | 500x1000x80 | 500x1000x80 | |
| NO .of Modules Per Panel (W × H) | 1X4/1X8 | 2x2 | 2x2 |
| Physical Resolution of Module ( W× H) | 192x48/192x48 | 84x84/64x168 | 64x64/64x128 |
| Panel Material | 192x192/192x384 | 168x168/128x336 | 128x128/128x256 |
| Single Cabinet Weight | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4000 : 1 | 4000 : 1 | 4000 : 1 |
| Average Power Consumption | 60/120W/m² | 60/120W/m² | 60/120W/m² |
| Max Power Consumption | 110/400W/m² | 110/400W/m² | 110/400W/m² |
| Operating Temperature | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC |
| Storage Temperature | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness | 900-1200 nits | 900-1200 nits | 900-1200 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 |
| Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan |

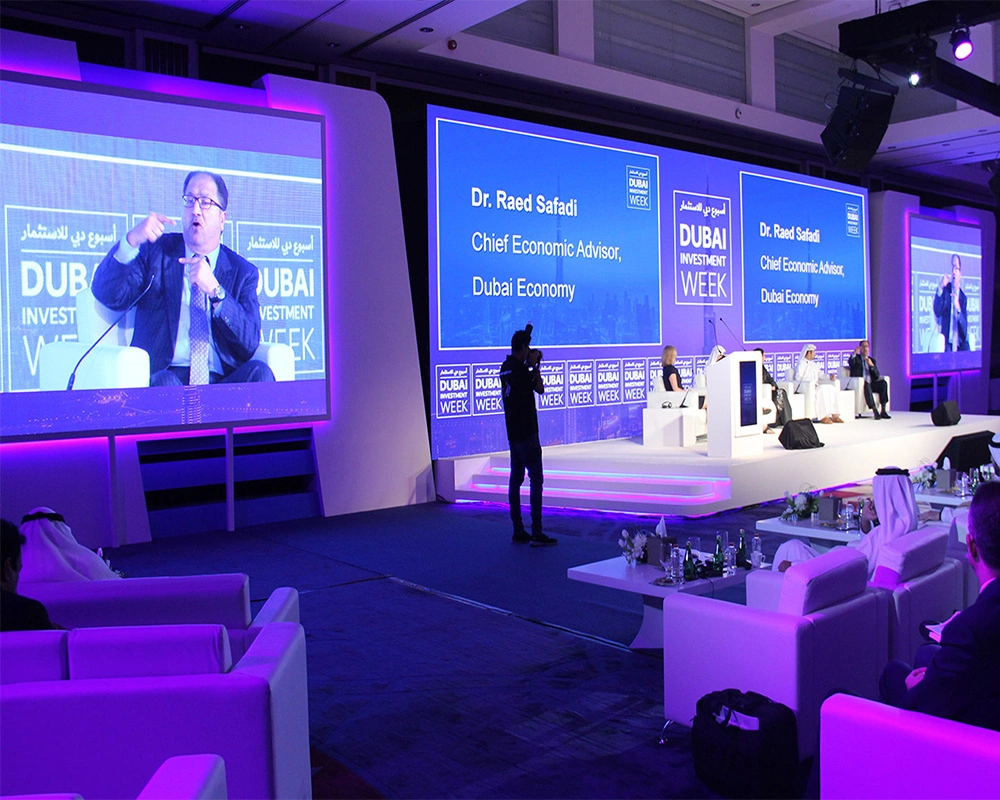

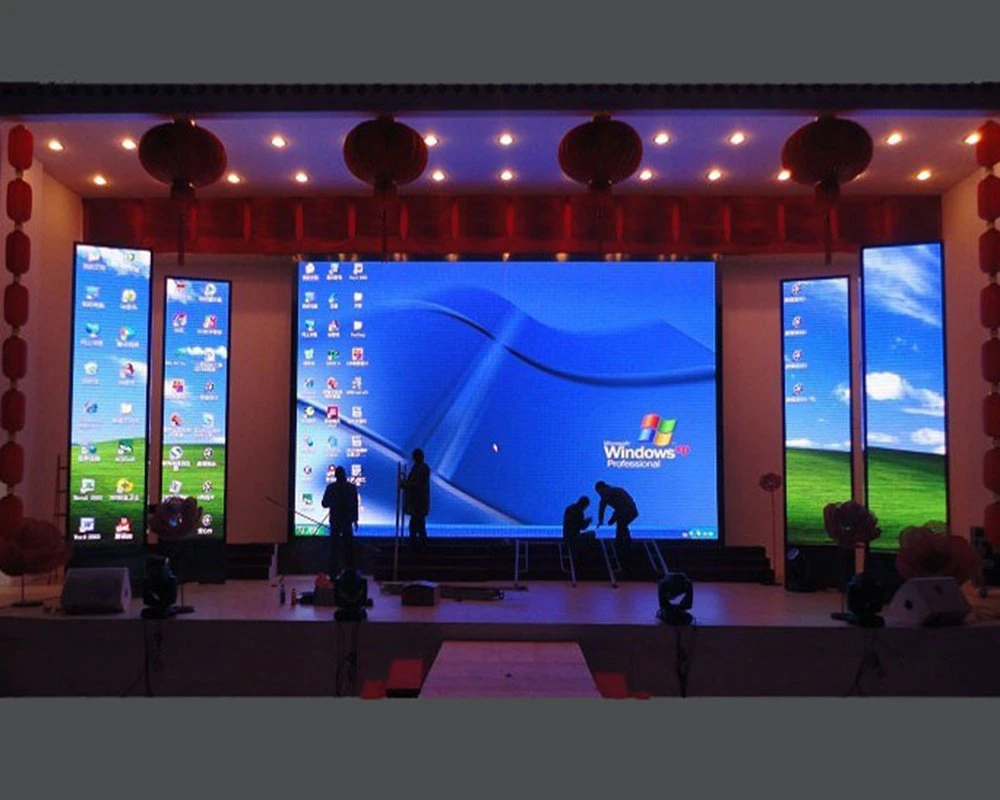

Indoor Rental LED Display Cases:
FAQ:
1. How long is the warranty period ?
We provide 2 years warranty and free repair service for our products sold.
2. Is Available to print customer required logo on your LED product ?
Surely it is .Please inform and confirm the logo details with our team ahead of the production.
3. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
4. Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
5. Why choose bako vision?
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
Pre-producing:
- Get complete requirements of clients.
- To do a thorough analysis.
- Offer a most reasonable and scientific solution.
- Customized design.
- Producing progress updating for clients
- Particular Installation CAD and Design Diagram for clients.
- 2 years free maintenance
- 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
- Free training for customers in factory
- Local Partner Installation Service.
