P4.81 High Definition Die-Casting Aluminum Indoor Rental LED Display for Stage
specifiction
| Physical Pitch | 4.81mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 43,264 pixels/m² |
| Module Dimensions | 250×250mm/250×500mm |
| Panel Dimensions | 500×500×80mm/500×1000×80mm |
| NO. of Modules Per Panel | 2×2 |
| Physical Resolution of Module | 52×52dots/52×104dots |
| Physical Resolution of Panel | 104×104dots/104×208dots |
| Panel Material | Die-Casting Aluminum |
| Single Cabinet Weight | 7kg/panel |
| Grayscale | 16bit |
| Colors | 281trillion |
| Contrast Ratio | 4000:1 |
| Average Power Consumption | 60/120W/ panel |
| Max Power Consumption | 110/400 W/ panel |
| Refresh Rate | >1920Hz |
| Brightness | 900 - 1200 nits |
| Expected Lifetime | 100,000Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP40/IP21 |
Features and Advantages
1. Slim and lightweight. Made with die-casting aluminum, only 7kg per cabinet, 80mm thickness, saving the transportation cost effectively.
2. Made with die-casting aluminum better for heat dissipation and no fan design very quiet.
3. Fast installation and easy maintenance. Fast lock design guarantees a quick installation without tools. Magnetic modules guarantees a easy maintenance, saving the handling, labour cost effectively.
4. Wide viewing angle. 160° for horizontal, 140° for vertical. High contrast ratio and high refresh rate bring you a visual feast and well return.
5. Special concave and convex design, totally satisfy your requirements.

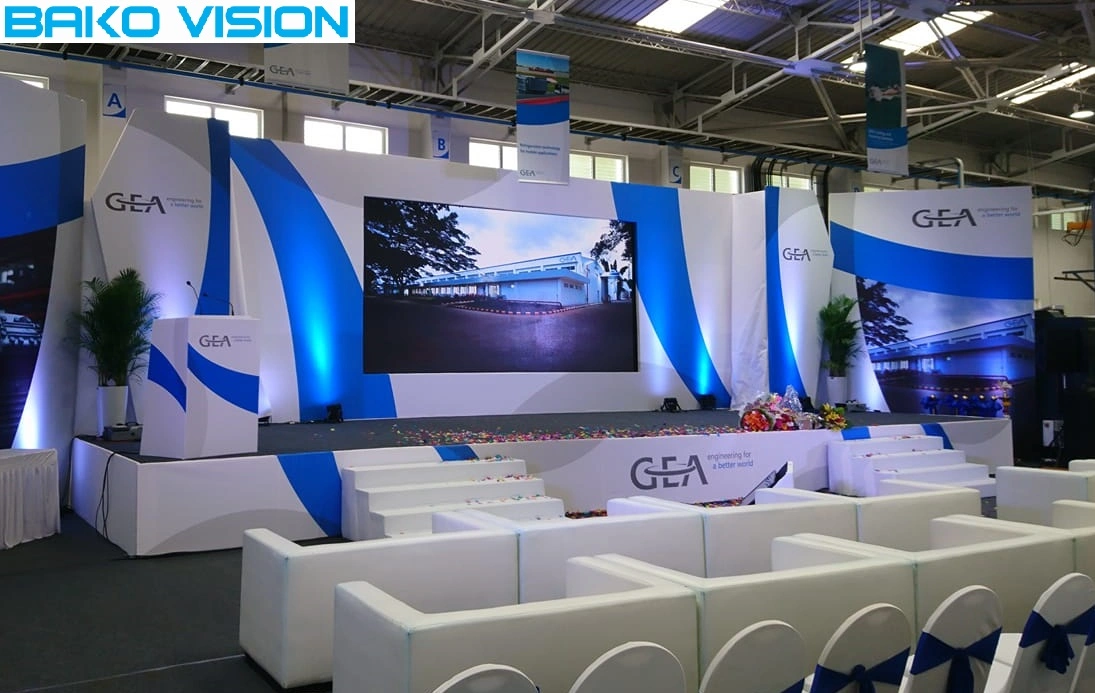

Case
