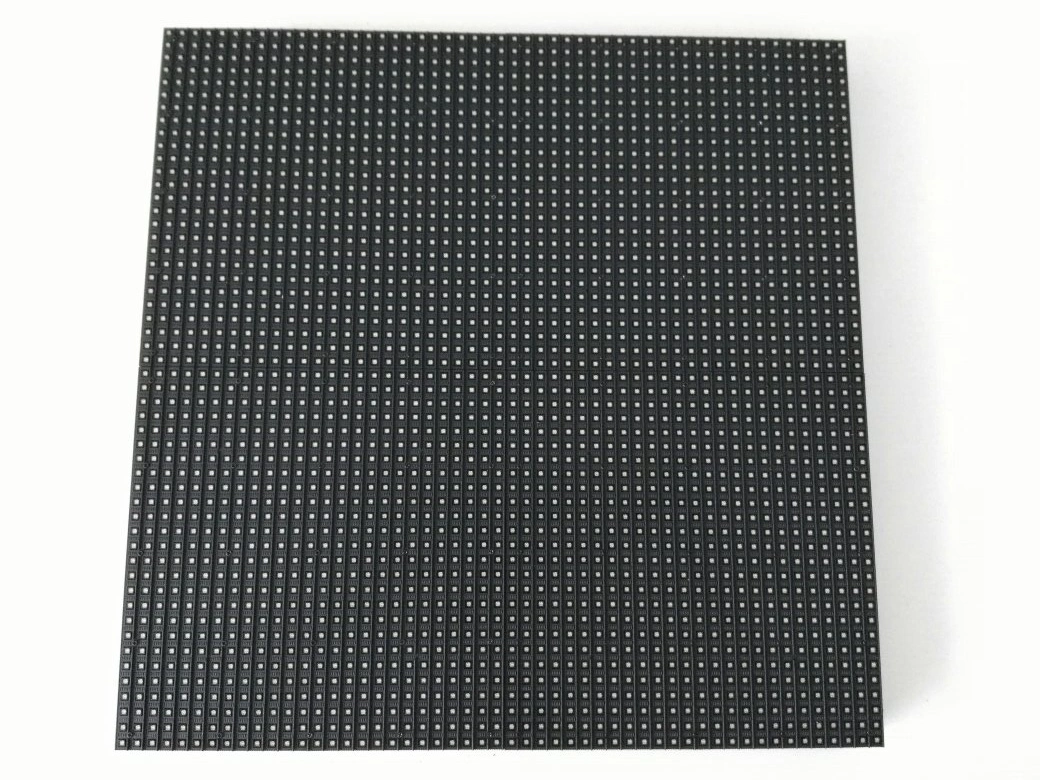

P5.95 (P4.81) Outdoor Indoor Rental Full Color LED Display Module Screen
Our Company:
Quanzhou Xinrui Optoelectronics Technology Co., Ltd. is a company who engages in researching & development, production, sales of high-tech Led screens. We own the independent developing design and utility model patent, the products has passed the multi authentication. Our main products are outdoor & indoor full color LED screen, Led unit board, indoor LED bare-board, outdoor LED screen cabinet, module, interest & exchange rate screen, line-screen, electronic industry billboard, Led nixie tube screen, stage screen, various type of frames, powers and accessories etc.
Exhibition:
Our Product:
P4.81,P3.91)Indoor Outdoor Rental Full Color LED Display Module Screen is easy to install and with low power consumption, with big viewing angle,long lifespan,with high brightness,energy saving, and as well our products are CE certified, ROHS compliant,FCC identified, and passing the system of ISO 9001 with IP Grade of 65.1.
Product Competitive Advantage:
1. The cabinet made of aluminum, has very light weight, would not deformation, easy to transport. In addition, it is convenient to assemble and disassemble.
2. Has high refresh, Meet the needs of high-definition video shooting
3. Equips professional video processor, which supports signal formats like AV, DP, VGA, DVI, YPBPR, HDMI, SDI etc.
4. Supports brightness adjustment and white balance custom adjustment with 256 levels, which enables mix usage of different batches of display.
5. Bring brilliance brilliant visual experience
Product Applications:
Product Specification:
Product Packaging:
Transportation:
Our service:
1. Your inquiry related to our products or price will be replied within 24hrs
2. OEM&ODM, any your customized lightings we can help you design and put into production
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms:
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen, China
5. Warranty time: 1 year
6. Delivery time: 2-15 working days
Please Contact:
Our Company:
Quanzhou Xinrui Optoelectronics Technology Co., Ltd. is a company who engages in researching & development, production, sales of high-tech Led screens. We own the independent developing design and utility model patent, the products has passed the multi authentication. Our main products are outdoor & indoor full color LED screen, Led unit board, indoor LED bare-board, outdoor LED screen cabinet, module, interest & exchange rate screen, line-screen, electronic industry billboard, Led nixie tube screen, stage screen, various type of frames, powers and accessories etc.
Exhibition:
Our Product:
P4.81,P3.91)Indoor Outdoor Rental Full Color LED Display Module Screen is easy to install and with low power consumption, with big viewing angle,long lifespan,with high brightness,energy saving, and as well our products are CE certified, ROHS compliant,FCC identified, and passing the system of ISO 9001 with IP Grade of 65.1.
Product Competitive Advantage:
1. The cabinet made of aluminum, has very light weight, would not deformation, easy to transport. In addition, it is convenient to assemble and disassemble.
2. Has high refresh, Meet the needs of high-definition video shooting
3. Equips professional video processor, which supports signal formats like AV, DP, VGA, DVI, YPBPR, HDMI, SDI etc.
4. Supports brightness adjustment and white balance custom adjustment with 256 levels, which enables mix usage of different batches of display.
5. Bring brilliance brilliant visual experience
Product Applications:
| Business Organizations | super market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
| Financial Organizations | banks, security company, insurance company, post office, hospital, school, etc. |
| Public Places | subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
| Entertainments | movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
Product Specification:
| Item | Technology Parameter |
| 1,LED Tube | Pixel Pitch:5.95 mm Original Colors:Red+Green+Blue Color Configuration:1R1G1B Pixel Density:28224 dots/m2 |
| 2,Display Module | Module resolution:Length 42 Height 42 dots Module Size:Length 250mm× Height 250mm Single Module Weight :460.2g |
| 3,Display Screen | Angle:H160°,V140° Storage Temperature: -20ºC ~ 60ºC Working Temperature:-20ºC ~ +60ºC Relative Humidity:60%~90% RH |
| 4,Power supply | Working Voltage:AC 110-220V±10;50Hz Average Power Consumption: 350 W/m² Max Power Consumption: 850 W/m² |
| 5,Control System | Control System:WIN2000/XP/WIN 7/WIN8 Graphic Card:DVI Graphic Card Gray scale/Color:R,G,B 1024 level each,Can display 16.7M Colors With balance brightness: ≥5500_cd/m² Frame Frequency:≥60Hz Picture Refresh Frequency:≥1920Hz Brightness adjustment:Automatic/Manual≥256 Level, Video signal: PAL/NTSC Detection function:Temperature,Humidity,Brightness. Picture adjustment:White Balance/Contrast Ratio/Color Adjustment/Brightness Adjustment Control System Use:Computer+DVI Graphic Card+Main ControlCard(Provide full control system)+optical fibre transmission |
| 6,Main Technology Parameter, | Driving Method:Synchronization Frame Frequency:≥60Hz Brightness:≥ 5500 cd/m2(Under Boot In White Balance Condition) MTBF:≥10,000 Hours Life Span:100,000 Hours Planeness: Arbitrary adjacent pixels ≤0.5mm Unit Plate Splicing Gap<1mm Evenness:Pixel Intensity,Unit Plate Brightness Uniformity Malfunction Dot Rate:<0.0001(Zero during the product delivery) Computer Display Mode:800×600,1024×768 Effective Communication Distance:Network Cable 120m(No Relaying),Multimode Optical Fiber ≤300m,Single Mode Optical Fiber 10km |
| 7,Software | LED Studio |
| 8. Protection Technology | Damp proof,Dust proof,Anti corrosive,Static-free,Lighting protection,with over current, short circuit, over voltage, under voltage protection function. |
| 9. Play Content | Text file,WORD Document,All Picture Files(BMP/JPG/GIF/PCX...),All Animation Files(MPG /MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF...). |
Product Packaging:
Transportation:
Our service:
1. Your inquiry related to our products or price will be replied within 24hrs
2. OEM&ODM, any your customized lightings we can help you design and put into production
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms:
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen, China
5. Warranty time: 1 year
6. Delivery time: 2-15 working days
Please Contact:
