Outdoor Waterproof P4 P5 P6 Full Color LED Display Screen for OutdoorLED Display Panel
Application:
1. It's a advanced LED screen which can be easily installed and removed.

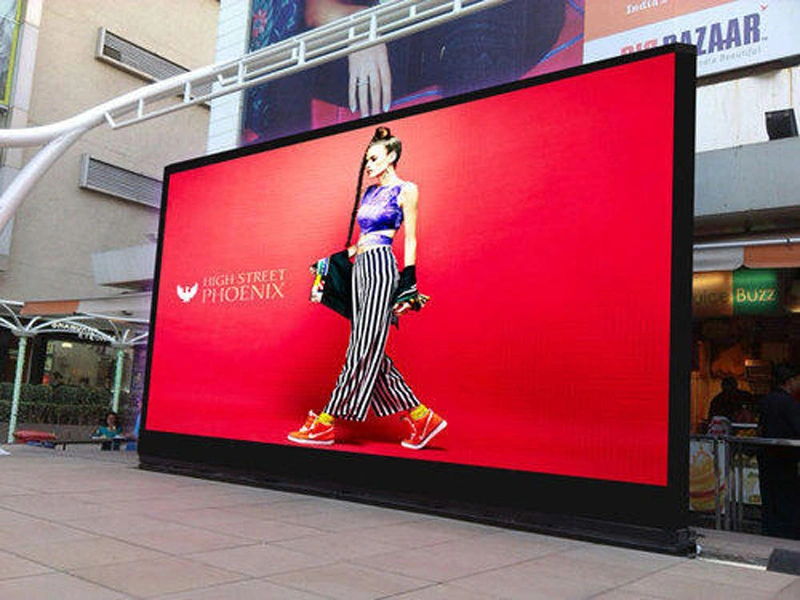

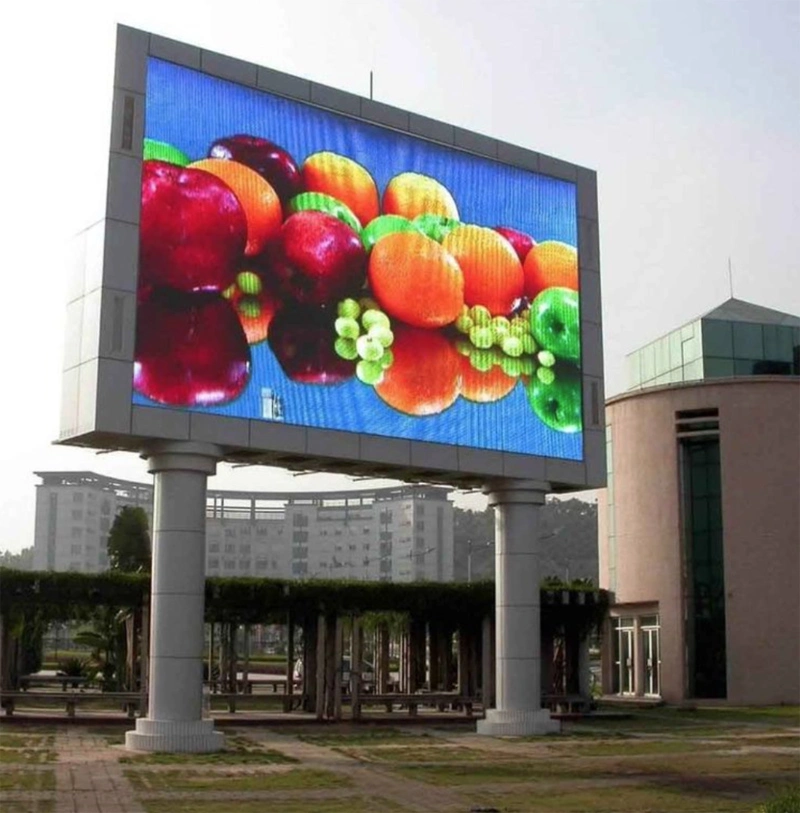

2. Outdoor commercial advertising billboard, stage, banks, stock exchange centers, theme park, airport, schools, government agencies, exhibition, meeting rooms, cinemas, hotels, and a variety of public facilities and etc.
| 500X500X75MM Die-cast aluminum rental cabinet Display screen | |
| Specification | Outdoor |
| Model | SF-391AF |
| Pixel pitch(mm) | 3.91 |
| Brightness nit | 3000-5000 |
| Refresh rate Hz | 1920/3840 |
| Driving method | 1/16S |
| Humidity bit | 12~14 |
| Color | 1R1G1B |
| LED type | SMD 1919 |
| Viewing angle | 140~120 |
| Protection grades(Front/Back) | IP65/IP55 |
| Power consumption(Max./Ave.)W/m2 | 540/210 |
| Cabinet | |
| Cabinet Size(mm) | 500×500×75 |
| Cabinet weight (Kg) | 8 |
| Cabinet Material | Die-cast aluminum |
| Module size (mm) | 250×250 |
| Application environment | |
| Input AC voltage | 110-240V |
| Working temperature | -20ºC~50ºC |
| Working humidity | 10%-95%RH |
| Signal type | DVI , HDMI |
| Control distance | UTP CAT5E:<100m;Single-mode Fiber;<10KM |
