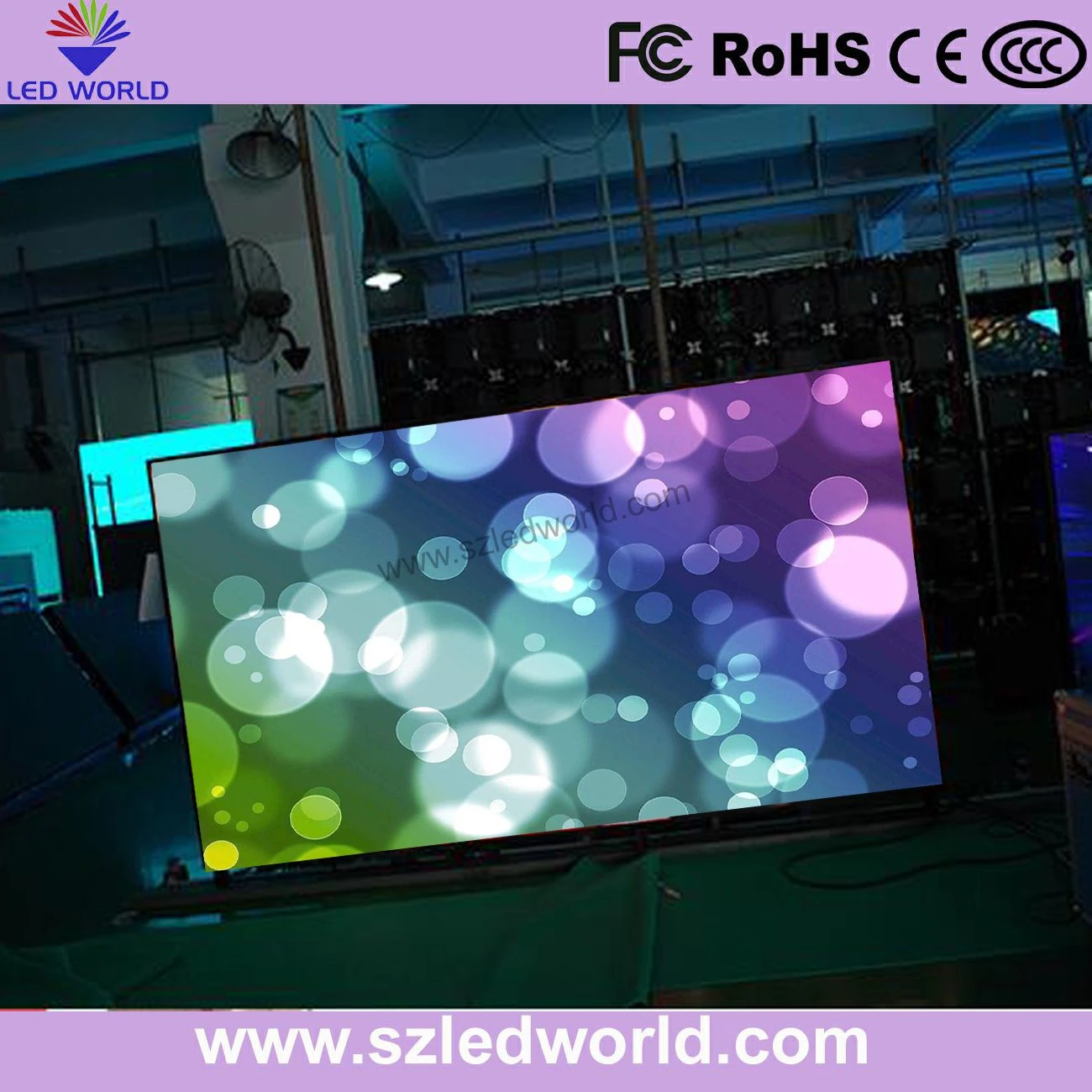

Outdoor/Indoor Large LED Display Screen Panel P10 SMD Wide View(P2.5 P3 P4 P5 P6 P10)
Feature:
1. SMD in 1 technology, confirm the super wide view angle and better evenness surface and stability;
2. SMD3528 ensure the wide view angle,and super thin modules;
3. Delicated image, wide horizon viewing angle at 140 degree to provide better viewing experience with optimal refresh rate (2000Hz), high grey level (14 bits) and high contrast ratio (2000:1);
4. Widely used in indoor commercial advertising,message board, meeting room,stage background,concert,show,etc;
5. SMD led encapsulation confirm wide view angle and good uniformity,wide view angle;
6. Wide viewing angle;
Parameter:
Our service:
Our project:
Our features
1. Good quality and price
The price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management;
2. Lightweight with no rust
It can use aluminum cabinet greatly saving fright cost and conveniently installing;
3. Stable performance
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 1000 hours;
4. Best quality LED chip tube
the GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan;
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
Our factory:
Applications:
Packaging & Shipping
Standard Package: Veneer Case(Usually 4 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit
Control system:
Installation:
Steel structure:
Certification:
Why Choose Us:
1. Full automatic production to control our high quality, best color consistency and get better performance.;
2. We have professional sales engineer TEAM, which can offer you project solution and also help to solve problem at once.
3. Top quality + reasonable price + patient after-sales service;
4. 24/7 after-sale service
5. Fast locks and assembling pins, flatness and seamless are greatly increased, less than 0.01mm , easy to install and dismantle .Seamless connection, less than 0.1mm between 2 cabinet ;
Feature:
1. SMD in 1 technology, confirm the super wide view angle and better evenness surface and stability;
2. SMD3528 ensure the wide view angle,and super thin modules;
3. Delicated image, wide horizon viewing angle at 140 degree to provide better viewing experience with optimal refresh rate (2000Hz), high grey level (14 bits) and high contrast ratio (2000:1);
4. Widely used in indoor commercial advertising,message board, meeting room,stage background,concert,show,etc;
5. SMD led encapsulation confirm wide view angle and good uniformity,wide view angle;
6. Wide viewing angle;
Parameter:
| Items | P2.5mm | P3mm | P4mm | P5mm | P6mm | P10mm |
| Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Configuration | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm | 10mm |
| Pixel Density | 160,000 | 111,111 | 62,500 | 40,000 | 27,777 | 10,000 |
| Module Size(mm) | 160x160 | 192x192or 192x96 | 256x128 | 160x160or 320x160 | 192x192 or 384x192 | 320x160 |
| Pixels/Module | 64x64 | 64x64or 64x32 | 64x32 | 32x32or 64x32 | 32x32or 64x32 | 32x16 |
| Cabinet Size(mm) | 960x960 | 960x960 | 1024x1024 | 960x960 | 960x960 | 960x960 |
| Pixels/Cabinet | 384x384 | 320x320 | 256x256 | 192x192 | 160x160 | 96x96 |
| Cabinet Weight | 37KG | 37KG | 42KG | 37KG | 37KG | 37KG |
| Brightness | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1000cd/m2 |
| Viewing Distance | >2.5m | >3m | >4m | >5m | >6m | >10m |
| Power Consumption | Max: 800 | Max: 800 | Max: 650 | Max: 400 | Max: 400 | Max: 300 |
| (W/m2) | Ave: 240 | Ave: 240 | Ave: 195 | Ave: 120 | Ave: 120 | Ave: 100 |
| Driver Mode | 1/32 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/8 scan |
| Cabinet Material | Cold Rolled Steel | |||||
| Refresh Rate | 300-3000HZ adjustable | |||||
| LED Life | 100,000 hours | |||||
| Supply Voltage | AC220V/50HZ; AC110V/60HZ | |||||
| Operating Temperature | -20ºC ~ +40ºC | |||||
| Operating Humidity | 10% - 90% | |||||
| Viewing Angle | H: 120°; V: 120° | |||||
| Gray Scale | Red, Green and Blue each 16K | |||||
| Display Color | 4096 Billion | |||||
| IP Rating | IP20 | |||||
| Display Capability | Text, Graph and Video | |||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||
Our service:
1,Two years warranty;
2,Design the framework structure to install our led products with technical drawing;
3,Provide unique and professional solutions based on customer's requirement;
4,LEDWORLD provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED
lamps and other related parts;
5,We provide remote control service through internet to achieve real time service, which will short the
customer problem solving;
6,Reply enquiries in 24 hours;
2,Design the framework structure to install our led products with technical drawing;
3,Provide unique and professional solutions based on customer's requirement;
4,LEDWORLD provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED
lamps and other related parts;
5,We provide remote control service through internet to achieve real time service, which will short the
customer problem solving;
6,Reply enquiries in 24 hours;
Our project:
Our features
1. Good quality and price
The price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management;
2. Lightweight with no rust
It can use aluminum cabinet greatly saving fright cost and conveniently installing;
3. Stable performance
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 1000 hours;
4. Best quality LED chip tube
the GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan;
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
Our factory:
Applications:
| Business Organizations | super market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
| Financial Organizations | banks, security company, insurance company, post office, hospital, school, etc. |
| Public Places | subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
| Entertainments | movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
Standard Package: Veneer Case(Usually 4 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit
Control system:
Installation:
Steel structure:
Certification:
Why Choose Us:
1. Full automatic production to control our high quality, best color consistency and get better performance.;
2. We have professional sales engineer TEAM, which can offer you project solution and also help to solve problem at once.
3. Top quality + reasonable price + patient after-sales service;
4. 24/7 after-sale service
5. Fast locks and assembling pins, flatness and seamless are greatly increased, less than 0.01mm , easy to install and dismantle .Seamless connection, less than 0.1mm between 2 cabinet ;
