Outdoor fixed Giant digital billboard p10 led displays screen
Detailed photos
Case
PRODUCT FEATURES:
1.Durable fresh color and high brightness by adopting high quality leds.
2.Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.
3.Great uniformity , contract ratio and screen flatness.
4.Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
5.IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
1.Durable fresh color and high brightness by adopting high quality leds.
2.Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.
3.Great uniformity , contract ratio and screen flatness.
4.Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
5.IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
PRODUCT TECHNICAL DATAS:
| NO. | ITEM | PARAMETER | UNIT |
| Modules | Model | F10 | |
| Pixel Pitch | 10 | mm | |
| Physical Density | 10000 | dots/m² | |
| LED Configuration: | 1R1G1B | / | |
| LED Type: | DIP346 | / | |
| Module Size | 160x160 | mm | |
| Module Resolution | 16x16 | dots | |
| Module Power Consumption | 5.6 | w | |
| Screen | Drive Mode: | 1/4 Constant Current Drive | / |
| Horizontal Viewing Angle | 120 | Deg | |
| Vertical Viewing Angle | 50 | Deg | |
| Brightness | 7000 | cd//m² | |
| Grey Scale: | 14 | bits | |
| Refresh Rate | ≥1920 | Hz | |
| Cabinet Resolution | 96x96 | dots | |
| Max. Power Consumption | 650 | W/m² | |
| Ave. Power Consumption | 220 | W/m² | |
| Cabinet Size | 960x960 | mm | |
| Cabinet Thickness | 150 | mm | |
| Cabinet Material: | Steel/Aluminum | ||
| Color | >16.7 | M | |
| Input Voltage | AC 110V~220V+/-10% | V | |
| Refresh Frame Frequency | 60 | Hz | |
| Protection Level: | IP65 | / | |
| Working Environment: | Outdoor | / | |
| Working Temperature | -30- +60 | ºC | |
| Operation humidity | 10%-95% | RH | |
| Certificates: | CCC, CE,RoHS | / |
Detailed photos

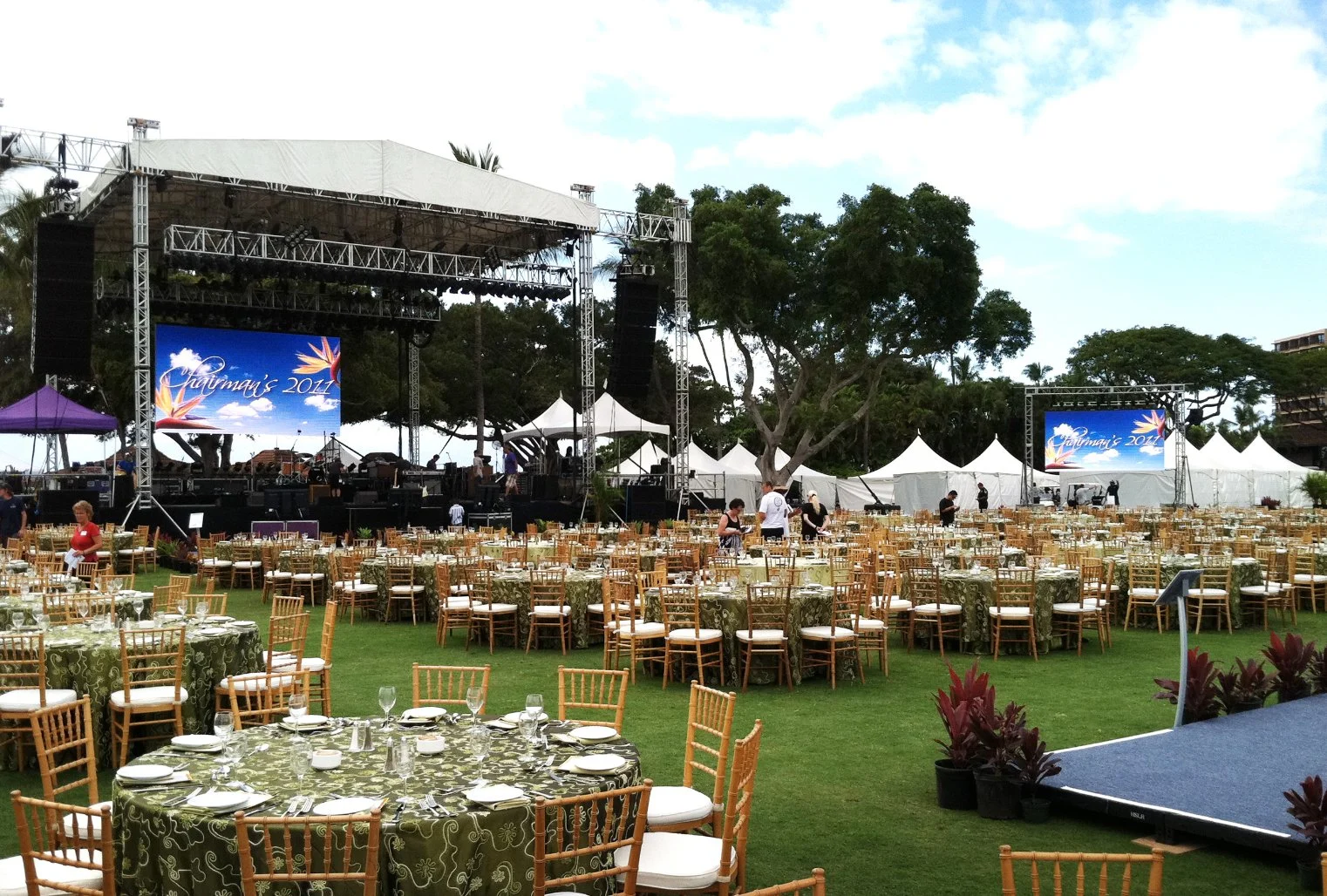

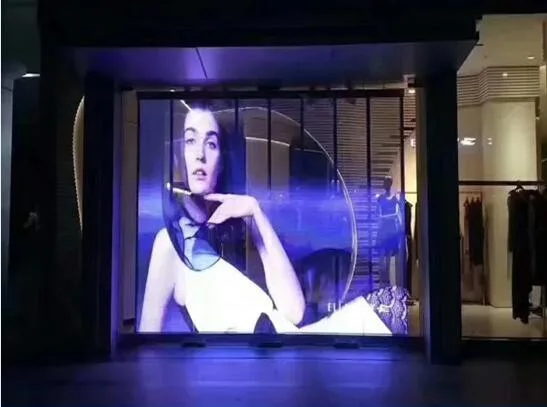

Case
CKGLED's product quality management is strictly adhering to the ISO9001: 2008 certifications system and 7S management standards. Thanks to those efforts, our products have passed certificates of CE, RoHS, CCC, FCC, ETL etc.With an outstanding business performance and good social reputation, CKGLED's led displays have been sold all over the world both in and out of China to America, Germany, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Brazil, Spain, Thailand, Dubai, India etc.more than 50different countries.
