OEM flexible screen T430HVN01.2 CELL LCD screens 43''

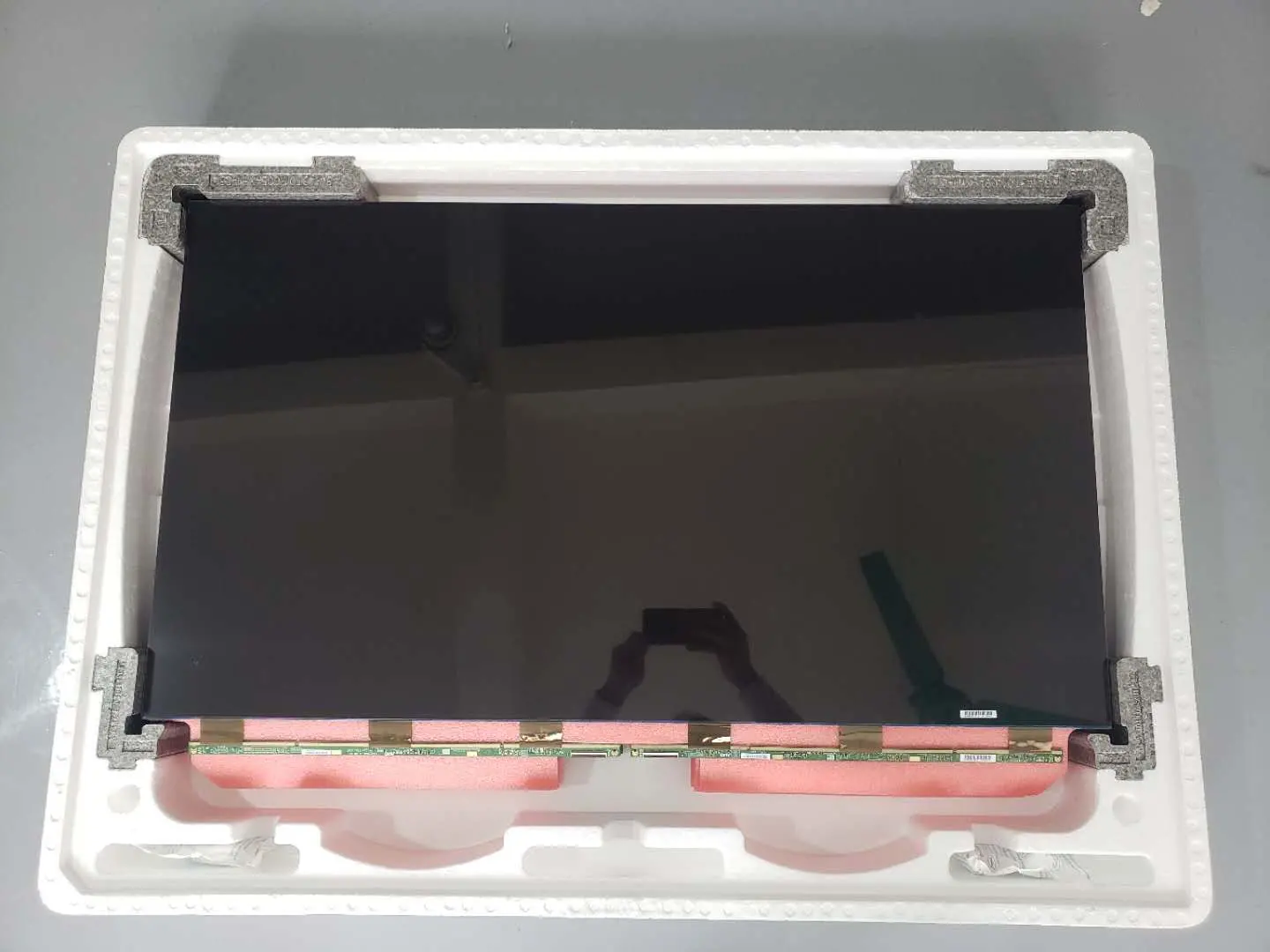

Auo 43 Inch Open Cell for T430hvn01.2
Auo 43 Inch Open Cell for T430hvn01.2
| Brand | AUO | Model | T430HVN01.2 CELL |
| Diagonal Size | 43 inch | Type | a-Si TFT-LCD , CELL |
| Pixel Format | 1920(RGB)×1080 [FHD] 51PPI | Configuration | RGB Vertical Stripe |
| Active Area | 940.896(H)×529.254(V) mm | Outline Dim. | 950.896(H)×575.89(V) ×1.32(D) mm |
| Bezel Area | - | Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² | Contrast Ratio | 3000:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AMVA3, Normally Black, Transmissive |
| Plate Thickness | 0.50+0.50 mm | Transmittance | 6.2% (Typ.)(with Polarizer) |
| Support Color | 16.7M 69% NTSC | Light Source | No B/L |
| Weight | 1.50Kgs | Designed For | |
| Frame Rate | 60Hz | Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins Connector | ||
| Power Supply | 12.0V (Typ.) | ||
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
