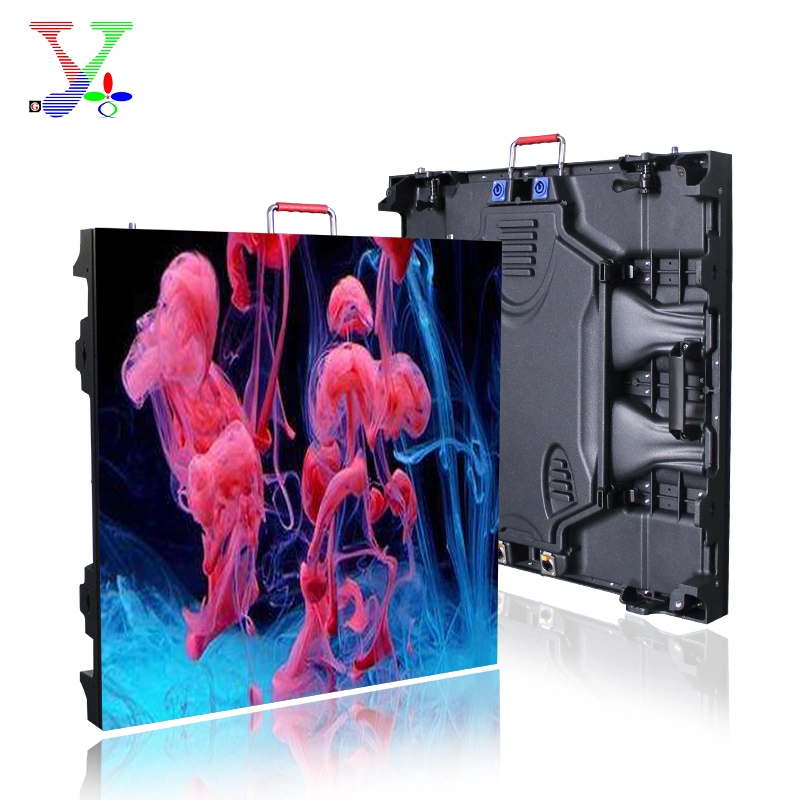

Indoor P2.5 LED rental screen
| Module parameters | ||
| Technical parameters | Unit | Parameters values |
| Pixel pitch | MM | 2.5 |
| Panel size | MM | L320*H160*T13 |
| Physical density | dot/M2 | 160000 |
| Pixel configuration | R/G/B | 1,1,1 |
| Driving method | 1/32scan | |
| LED Encapsulation | SMD | 2121 |
| Display resolution | DOTS | 128X64=8192 |
| Module weight | KG | 0.186 |
| Module port | HUB75 | |
| Module working voltage | VDC | 5 |
| Module consumption | W | ≤16 |
| Every square metre module | PCS | 39 |
| Maximum power | W/ M2 | <650 |
| Equilibrium brightness | CD/ M2 | ≥1000 |
| Working environment temperature | 0C | -10~60 |
| Working environment humidity | RH | 10%~70% |
| Display working voltage | VAC | AC46~54HZ,220V±15%/110V±15% |
| Best viewing distance | ≥3M | |
| Lamp failure frequency | <0.0001 | |
| IP rating | The back IP40,The front IP50 | |
| Control method | Synchronize or asynchronization control | |
