Seamless panel connection: Panels are stitched together via magnetic connection.
This magnetic buckle design also ensures fast installation and replacement.
Space-efficient: Since these soft and flexible LED displays are not enclosed inside a cabinet, they only take up 5mm space in thickness. So, you can install freely without worrying about space limitations.
Cost savings: Thanks to their light-weight design, up to 20 sq mts of soft LEDs can be packed inside one flight case.
So, you get to save on both shipping and labor costs.
Easy servicing: With top and front access for service, maintenance becomes astonishingly quick and easy.
Highly customizable: You decide the shape, size, color, and pixel pitch, and we will take care of the rest.With these soft and flexible LEDs, you don't have to shy away from irregular shapes like circles, columns, ellipses, triangles, spheres, etc.
Features:

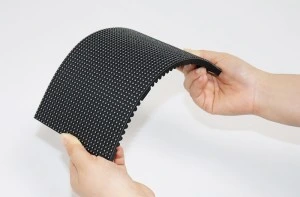

Flexible Rubber Module, Creative Solutions
Convex, Concave or Twisted Available Module For Any Creative Shape and Size, For Unique Installations
Ultra Thin and Lightweight
Magnetic Connection for Easy Maintenance
Soft Ribbon Rubber
Durable soft rubber module, anti-static electricity Soft PCB and rubber material
Integrated SMD, IC, Circuit for easy maintenance and heat dissipation
Magnetic connection for easy maintenance
Creative and Customized Forms
For any convex, concave or twisted installations
Customized pixel pitches available for variable installations
Slim and Lightweight and Quiet
5mm thickness, space efficiency
0.18kg per module, shipping cost and installation cost saving Fanless design
PRODUCT TECHNICAL DATAS:
Description of this Indoor Ph3.0mm Full Color Flexible Led Screen
MODEL: | RS-P3.0 SMD2020 CONSTANT CURRENT DRIVE | VERSION | 3.0 |
DESCRIPTION: | INDOOR PH3.0MM FULL COLOR FLELXIBLE LED SCREEN | ||
Parameter of this Indoor Ph3.0mm Full Color Flexible Led Screen
No. | PARAMETER | SPECIFICATION |
1 | Pixel Pitch(mm) | 3.0 |
2 | Pixel Density | 111111/m2 |
3 | LED Type | SMD2020 |
4 | LED Wave Length(nm) | R:620-625/G:515-520/B:470-475 |
5 | LED Luminous Intensity(mcd) | R:210~370/G:420~650/B:85~110 |
6 | Viewing Angle | H:160°/ V:160° |
7 | Bending radian | Centre bend≤120°/Opp angle bend≤120° |
8 | Brightness | 1200cd/m2 |
9 | Drive Method | 1/32 |
10 | Signal interface | HUB75 |
11 | Color Depth | 4096(14bits) |
12 | Refresh Rate(Hz) | ≥1920 |
13 | Frame Rate(Hz) | ≥60 |
14 | Contrast ratio | 3500:1 |
15 | Module Size(mm) | 192*192 |
16 | Cabinet Size (mm) | Customizable |
17 | Power Supply | 5V 40A |
18 | Voltage(V) | AC 110~240V |
19 | Avg. Power Consumption | 350W/m2 |
20 | Max. Power Consumption | 700W/m2 |
21 | Service Access | Front / Rear service |
22 | IP Grade | IP31 |
23 | Operating Temp/Humidity | -20ºC~50ºC, 10~90%RH |
24 | Storage Temp/Humidity | -40ºC~60ºC, 10~90%RH |
25 | Lifetime(Normal Temp) | ≥100000H |
26 | System Controlle | Synchronization with PC |
27 | Compliant Standard | CCC,CE |
CERTIFICATES:
PACKAGE:
CKGLED FACTORY WORKSHOP:
CKGLED is a National Level High & New Technology Enterprise in China.
CKGLED offers LED display's design & production, Project installation and rental service.
CKGLED owns more than 20,000 SQM,two production bases with over 400 employees , which ensures our capacity of 6000sqm every month.
CKGLED has near 20 experienced engineers in LED application field. Almost 80 technicians focus on research & development, and quality control.
CKGLED equipped complete and advanced production facilities, monthly output up to 6000m2
CKGLED has solid cooperation with Nationstar/ Nichia/ Cree/ Kinglight, Meanwell / MBI, Jinlongyu etc. International standard first-class raw material suppliers.
CKGLED has built long-term business cooperation with companies from more than 150 countries in the world.
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality
48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
FOREIGN EXHIBITION:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
