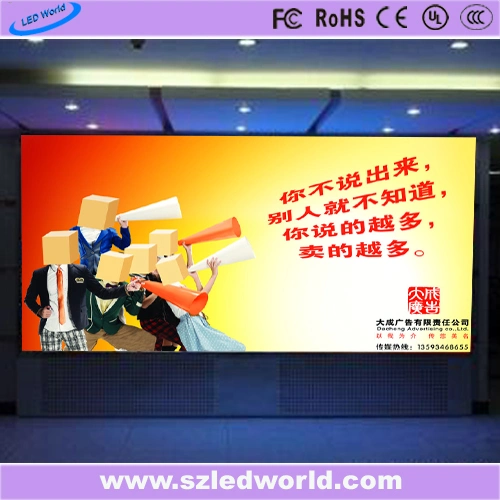

Indoor Full Color LED Wall Display Screen Panel Factory (CE)
Indoor Full Color LED Wall Display features:
1. Wide viewing angles;
2. High resolution, With high density, High definition LED display screen is able to produce quality graphic & video;
3. The indoor series from LED world boasts wider viewing angles, and the enhanced surface, for an exceptional picture quality in any indoor setting;
4. Large viewing angle, Up to 120° (Horizontal & Vertical);
5. Support various interfaces and signal sources, can be used indoor in all kinds of weather;
6. SMD technology confirm the wide view angle and slim thickness,light weight;
Indoor Full Color LED Wall Display parameters:
Project Case:
Our Service:
1: Warranty: 2 years.
2: Service time: 24 hours*7 days.
3: All of our LED display have proceeded aging test before shipment,
And we guarantee to use our products safety.
4: All the LED display are inspected before shipment, If any problems happen, do not hesitate to contact with us, our team will do our best to solve for customer within 48hours.
Package & Shipping & Delivery :
1. Package:
wooden case/flight case/carton box/carton box with wooden frame.
2. Shipping:
A. By air, From factory to the most closed air port of destination.
B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service
C. By ship, the slowest shipping, from factory to the most closed sea port of destination.
Certification:
Product detail:
Workshop and package:
FAQ:
1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
3. How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.
About the time from start port to destination, it depends on the distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use veneer case, usually 4 cabinets in 1 veneer case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor.
Indoor Full Color LED Wall Display features:
1. Wide viewing angles;
2. High resolution, With high density, High definition LED display screen is able to produce quality graphic & video;
3. The indoor series from LED world boasts wider viewing angles, and the enhanced surface, for an exceptional picture quality in any indoor setting;
4. Large viewing angle, Up to 120° (Horizontal & Vertical);
5. Support various interfaces and signal sources, can be used indoor in all kinds of weather;
6. SMD technology confirm the wide view angle and slim thickness,light weight;
Indoor Full Color LED Wall Display parameters:
| Items | P2.5mm | P3mm | P4mm | P5mm | P6mm |
| Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Configuration | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm |
| Pixel Density | 160,000 | 111,111 | 62,500 | 40,000 | 27,777 |
| Module Size(mm) | 160x160 | 192x192or 192x96 | 256x128 | 160x160or 320x160 | 192x192 or 384x192 |
| Pixels/Module | 64x64 | 64x64or 64x32 | 64x32 | 32x32or 64x32 | 32x32or 64x32 |
| Cabinet Size(mm) | Customized | ||||
| Pixels/Cabinet | 384x384 | 320x320 | 256x256 | 192x192 | 160x160 |
| Cabinet Weight | Customized | ||||
| Brightness | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 |
| Viewing Distance | >2.5m | >3m | >4m | >5m | >6m |
| Power Consumption | Max: 800 | Max: 800 | Max: 650 | Max: 400 | Max: 400 |
| (W/m2) | Ave: 240 | Ave: 240 | Ave: 195 | Ave: 120 | Ave: 120 |
| Driver Mode | 1/32 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan |
| Cabinet Material | Cold Rolled Steel | ||||
| Refresh Rate | 300-3000HZ adjustable | ||||
| LED Life | 100,000 hours | ||||
| Supply Voltage | AC220V/50HZ; AC110V/60HZ | ||||
| Operating Temperature | -20ºC ~ +40ºC | ||||
| Operating Humidity | 10% - 90% | ||||
| Viewing Angle | H: 120°; V: 120° | ||||
| Gray Scale | Red, Green and Blue each 16K | ||||
| Display Color | 4096 Billion | ||||
| IP Rating | IP20 | ||||
| Display Capability | Text, Graph and Video | ||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||
Project Case:
Our Service:
1: Warranty: 2 years.
2: Service time: 24 hours*7 days.
3: All of our LED display have proceeded aging test before shipment,
And we guarantee to use our products safety.
4: All the LED display are inspected before shipment, If any problems happen, do not hesitate to contact with us, our team will do our best to solve for customer within 48hours.
Package & Shipping & Delivery :
1. Package:
wooden case/flight case/carton box/carton box with wooden frame.
2. Shipping:
A. By air, From factory to the most closed air port of destination.
B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service
C. By ship, the slowest shipping, from factory to the most closed sea port of destination.
Certification:
Product detail:
Workshop and package:
FAQ:
1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
3. How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.
About the time from start port to destination, it depends on the distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use veneer case, usually 4 cabinets in 1 veneer case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor.
