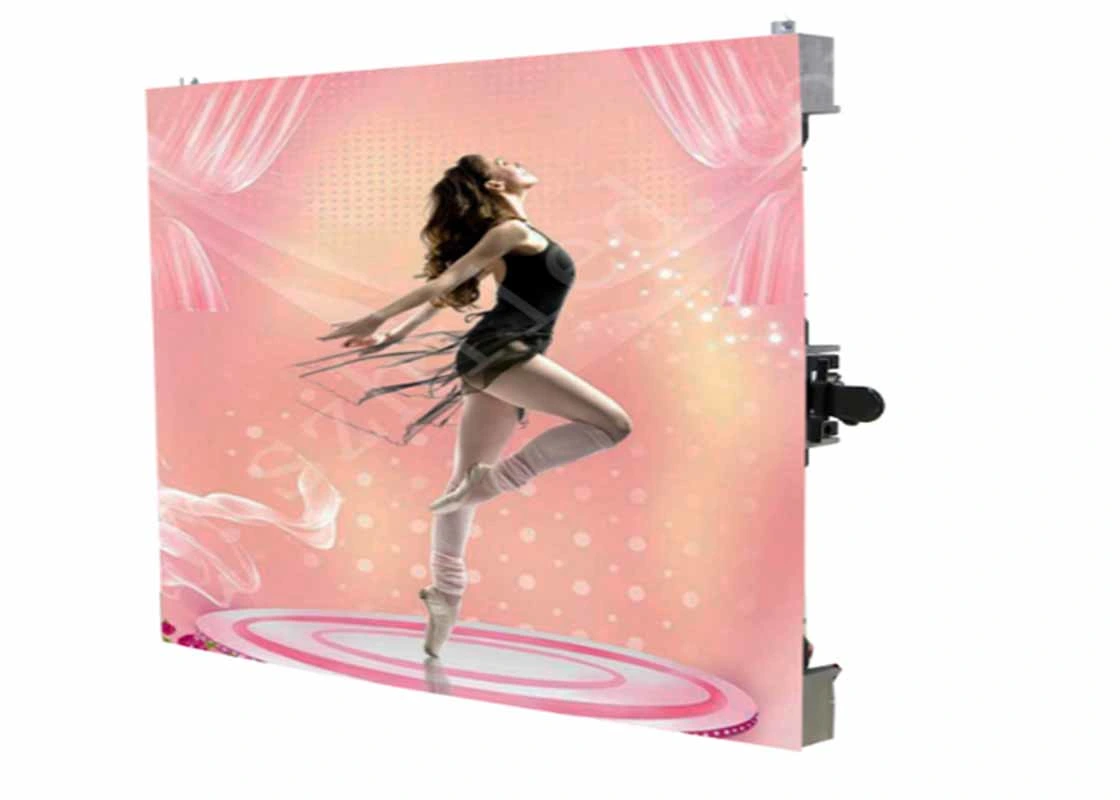

Indoor Fixed LED Screen UHD LED Displays High Gray Scale Without Flickering
Indoor Fixed LED Screen Features
1. Optional of aspect ratio of 16:9 or 4:3
2. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
3. High refresh rate to make it none of continuous flashing picture.
4. The indoor small-pitch LED display is equipped with a comfortable brightness to suit variety indoor lighting conditions and to meet the needs of the different crowd.
5. The high contrast ratio of 4000:1 makes the color of the screen more abundant, so that it is better for viewing it.
6. Low electric current and lower consumption but high quality lamps , which really saves energy.
7. Both the horizontal and the vertical viewing angle reach 140 degrees, which effectively ensures the viewing
range and viewing effect of the audiences.
8. Automatic monitoring of internal temperature, voltage, then error detection.
9. It improve reliability and stability with distributed scanning(1/30 scan) technology and module design.
10. Excepted life time more than 50000Hours, long standby.
Details
WIth a wide viewing angle of 140-degree, gives the audience the same visual enjoyment
no matter from any angle.
Magnet module for easy front maintenance, saving space and labor costs
Advantages of Factory
1.10 years' production experience, have passed certifications CE/ROHS/FCC/ISO9001/Supplier assessment.
2.10000 square meters manufacturing base and complete and integrated LED supply-chain.
3.Standardized management and production. So, every production process is well controlled.
4.More than 72 hours of screen aging test before leaving factory.
5.We have CE RoHS and other certificates to ensure that our products are qualified.
Q1: How to choose a proper led screen for need?
A: You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?
2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?
Q2:May I know the shipment?
A: Yes, we will ship with 20-25 working days after we received your deposit.
Q3. How about your package?
A: Well, we usually pack in wooden boxes or flight case.It decide on your size and your needs.We respect your choose.
Indoor Fixed LED Screen Features
1. Optional of aspect ratio of 16:9 or 4:3
2. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
3. High refresh rate to make it none of continuous flashing picture.
4. The indoor small-pitch LED display is equipped with a comfortable brightness to suit variety indoor lighting conditions and to meet the needs of the different crowd.
5. The high contrast ratio of 4000:1 makes the color of the screen more abundant, so that it is better for viewing it.
6. Low electric current and lower consumption but high quality lamps , which really saves energy.
7. Both the horizontal and the vertical viewing angle reach 140 degrees, which effectively ensures the viewing
range and viewing effect of the audiences.
8. Automatic monitoring of internal temperature, voltage, then error detection.
9. It improve reliability and stability with distributed scanning(1/30 scan) technology and module design.
10. Excepted life time more than 50000Hours, long standby.
Details
| Model | IU-1.6 |
| Pixel Pitch | 1.66mm |
| Pixel Density | 360,000px/m² |
| LED Type | SMD1010 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 400*300 |
| Cabinet Resolution | 180*120 |
| Cabinet Weight | 4.6kg/panel |
| Cabinet Material | die-casting |
| Ingress Protection(front/rear) | IP30 |
| Brightness | >800nits |
| Contrast ratio | 4000:1 |
| Colours | 281 trillion |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/30 Scan |
| Power Consumption(avg.) | 220w/m² |
| Power Consumption(max.) | 800w/m² |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) | -20~50°C -40~60°C |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Service | Front/Rear |
| Certification | CCC,TUV-CE,ETL |
WIth a wide viewing angle of 140-degree, gives the audience the same visual enjoyment
no matter from any angle.
Magnet module for easy front maintenance, saving space and labor costs
Advantages of Factory
1.10 years' production experience, have passed certifications CE/ROHS/FCC/ISO9001/Supplier assessment.
2.10000 square meters manufacturing base and complete and integrated LED supply-chain.
3.Standardized management and production. So, every production process is well controlled.
4.More than 72 hours of screen aging test before leaving factory.
5.We have CE RoHS and other certificates to ensure that our products are qualified.
Tips
1. Payment:We accept the L/C,T/T,Western Union.
2. Shipment: We will ship within 20-25 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
3. Package:We usually pack the product in a wooden box or flight case.
FAQ
Q1: How to choose a proper led screen for need?
A: You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?
2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?
Q2:May I know the shipment?
A: Yes, we will ship with 20-25 working days after we received your deposit.
Q3. How about your package?
A: Well, we usually pack in wooden boxes or flight case.It decide on your size and your needs.We respect your choose.
