| Model No. | PJ-B551P-V6F |
| View Area(L*H) (mm) | 1209.6*680.4 |
| Outer case size(mm) | 1213.5*684.3*123 |
| N.W.(kgs/unit) | 28.8 |
| Panel specifications | |
| LG Panel No. | LD550DUN-TKB2 |
| Panel Size | 55inch |
| Backlight | LED |
| LCD panel Brand | LG |
| Brightness | 500cd/m2 |
| bezel for combined two panels | 3.5mm |
| Contrast Ratio | 1400 :1 |
| Resolution | 1920*1080 |
| Viewing Angle | 178°/178°(H,V) |
| Color | 16.7M |
| Response Time | 8ms |
| Using life | 50,000(hrs) |
| Power | |
| Power supply | AC100V-240V, 50/60Hz |
| Max Power consumption | 170W |
| Standby power consumption | 0.5W |
| Video wall controller( Built in each screen) | |
| DVI in | 2 |
| HDMI in | 1 |
| VGA in | 1 |
| AV in | 1(BNC) |
| AV out | 1(BNC) |
| Audio in | 1 |
| Audio out | 1 |
| USB | 1 |
| Control signal input and loop out | RS232(RJ45-8) |
| Control interface | remote controller or RS232 |
| Video system | |
| Color system | PAL/NTSC/SECAM |
| 3D comb filter and video comb filter | Yes |
| OSD Language | English Chinese; (to be available in multiple languages) |
| Temperature | |
| Working temperature | 0 ºC ~ 50 ºC (no condensation) |
| Working humidity | 10% ~ 90% (no condensation) |
| Accessories | |
| User Manual ,power cable,, RJ45 cable, IR receiver, remote controller, HDMI/DVI cable, USB-RS232 converter, RS232 to RJ45 converter | |

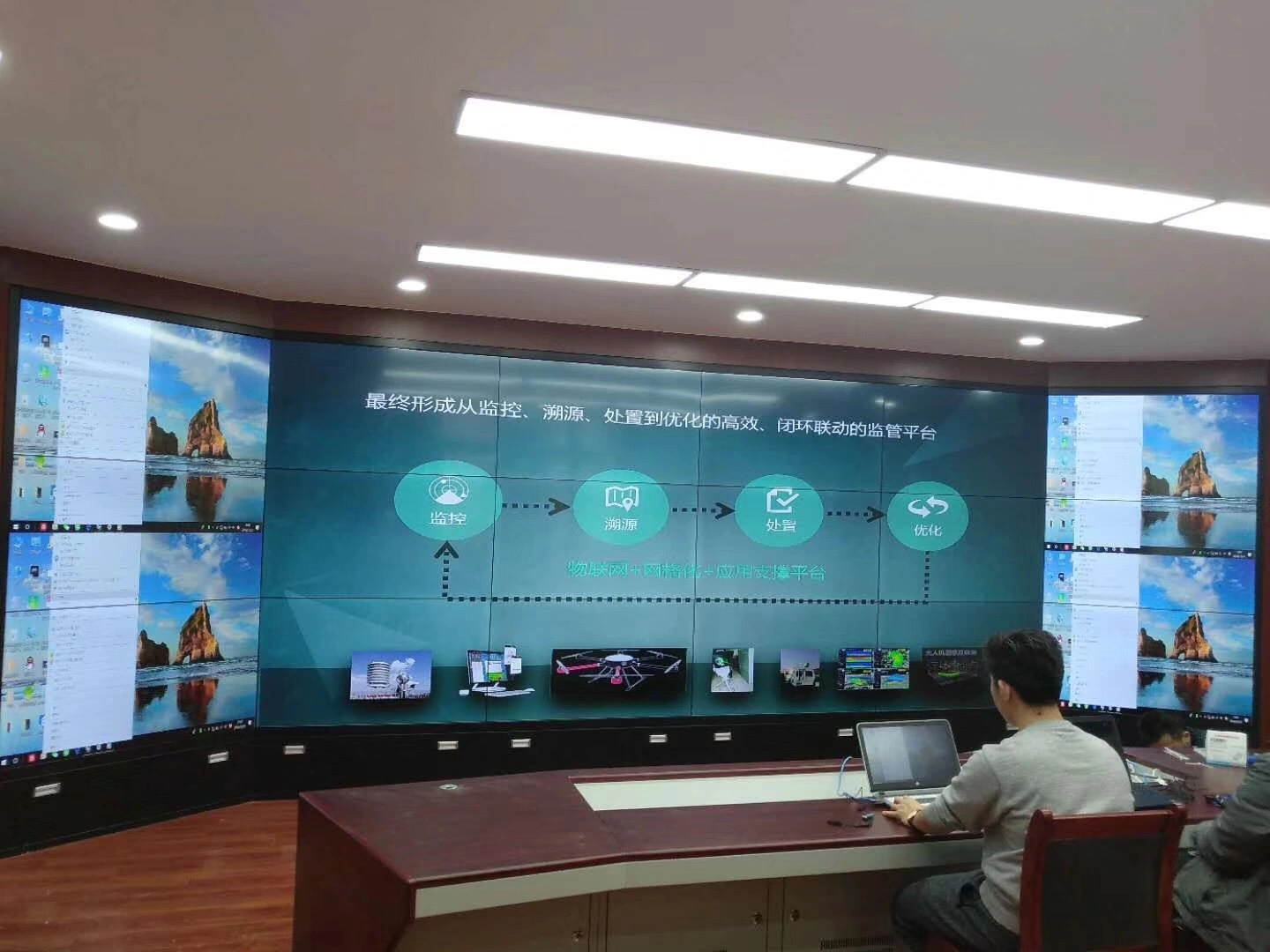

Information Center/Control Room Project
