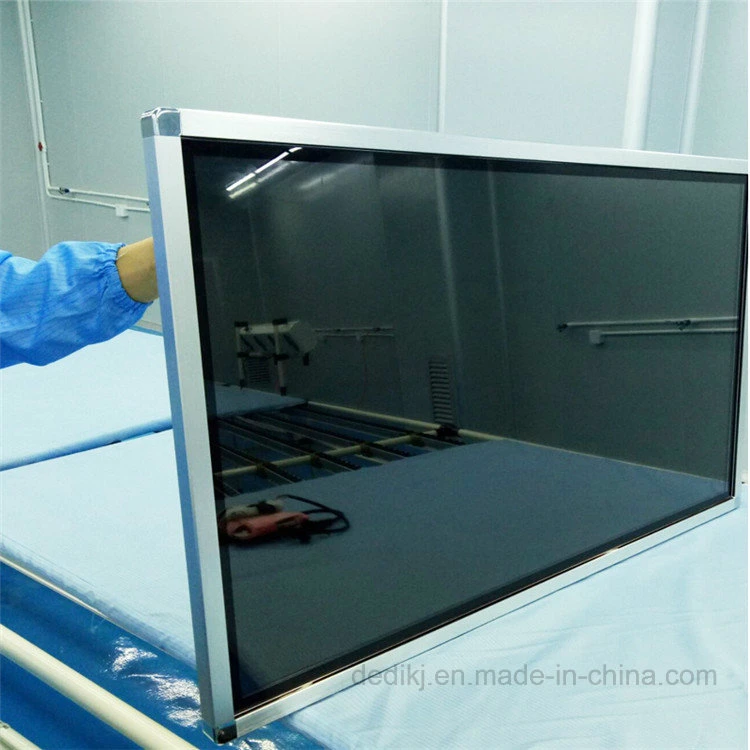

Screen size:32 "
Resolution: 3840 (RGBW) x 2160 [UHD] or 1920 (RGB) x 1080 [FHD]
Display size: 1209.6 x 680.4 mm (H x V)
Visual dimensions: 1214.6 x 685.4 mm (H x V)
Luminance (cd/m2):500 (Typ.)
Best angle: all angle of view
Visual angle: 89/89/89/89 (Min.) (CR = 10)
Pitch: 0.630mm (H) x 0.630mm (W)
Color number: 16.7M/1.07B, 68% [CIE1931]
Screen weight: 12.5/13.0Kgs (Typ./Max.)
Refresh frequency: 60Hz
Signal system: V-by-One 8 lane, terminal, 51 pins
Supply voltage: 12.0V (Typ.)
Maximum rating: storage temperature: -20 ~ 60 C working temperature: 0 ~ 50 degree C
Screen type: liquid crystal module, a-Si TFT-LCD
Pixel configuration: RGBW vertical ba
Appearance size: 1233.4 x 706.8 x 15.4 (H x V x D)
Surface treatment: fog surface (Haze 1%), Hard coating (3H)
Contrast: 1000: 1 (Typ.) [transmission]
Optical mode IPS, constant black display, transmission
Response speed: 8 (Typ.) (G to G) MS
Backlight type: WLED, 50K hour, no drive
CPU: RK3188, quad-core, frequency 1.6GHzMemory: 1 / 2G (optional)
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 above
Play mode: support for the cycle, timing, spots and other playback modes
Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
Picture format: support BMP, JPEG, PNG, GIF
USB2.0 interface: 3 USB HOST, 3 USB socket
Serial port: 3 serial socket
TVIn: CVBS input 2, support N, P standard
GPS: built-in GPS (optional)
WIFI, BT: built-in WIFI, BT (optional)
Ethernet: 1, 10M / 100M adaptive Ethernet
Timing switch machine: support
