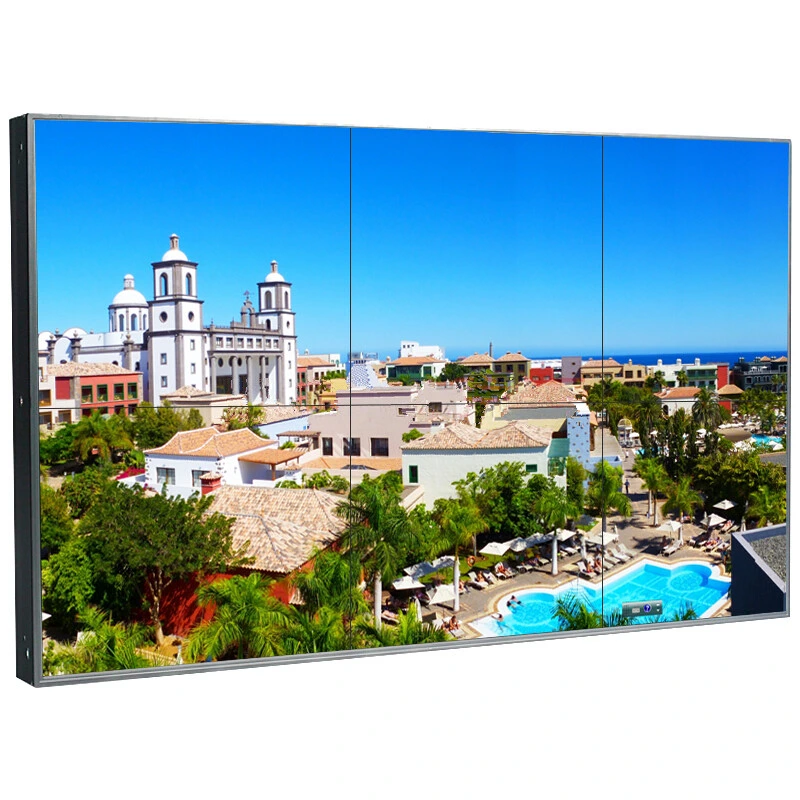

China Professional video wall factory -- USENDA
Features:
(Easy/Scientific/flexible set-up and using/Save time/Whole set offering)
| Specifications | |
| Model No. | PJ5501( UD-PJ550CZB ) |
| Panel Size | 55" with DID LCD Screen(with narrow bezel 3.5mm) |
| Display scale | 16:9 |
| Max Resolution Support | 3840*2160 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 500cd/m2 |
| Contrast | 4000:1 |
| Visual Angle (H/V) | 178/178 |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Input and output | |
| DVI | 1 |
| H DMI | 1 |
| VGA | 1 |
| YPbPr | 1(BNCx3) |
| S-video | 1(BNCx2) |
| Composite Video Input/(AV) | 3(BNCx3) |
| Composite Video Output | 2(BNCx2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen | Support Picture in Picture(PIP/POP) |
| Power | |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 250W |
| Standby Power Consumption | <=3W |
| Temperature | |
| Working Temperature | 0°C~50°C |
| Working Humidity | 20%-80% |
| Dimension | 102.4 × 57.8CM |
Video Wall Controller(Built-in each Screen) | ||
Model No. | UD-PJ65 | |
Input | CVBS | 1*BNC port, support PAL/NTSC all formats |
DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |
VGA | 1*D15 port, support SVGA/XGA/WXGA | |
H DMI | 5*BNC ports, support SVGA/XGA/WUXGA | |
Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display |
CVBS | support PAL/NTSC all formats | |
DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |
Product show
Irregular configuration
Controllers and accessories
Installation
Controller
Packing
Company Profile
Shenzhen Usenda Digital Technology Limited Company, also named Tanda Int'l Electronics Limited, is a high-tech enterprise integrating the research and development, production and sales. We are engaged in LCD screens, LCD monitors, advertising players, all-in-one PCs, DID video wall products, etc. Products of our own brand are widely used in highways, railways, civil aviation scheduling command centers, army command centers, oil fields, factories, mines, electric powers, water conservancies, prisons, border defenses, banks, ..
Certification
Our services
Trade Terms
1.Payment: T/T , 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2.Production lead time for 10~50pcs: 20days, 50~100pcs:35days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, HK
6.Discounts are offered based on order quantities
7.MOQ:1pcs sample
LCD video wall
Before we offer you best quotation, we'd to confirm some details if you don't mind:
1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? Any logo on back of cabinet?
4. When do you need to get goods? Is this urgent?
5. Any special requests? Such as video processor,hanging bar,flight case for package? Please advise it as well.
