High Resolution P3.91 Screen Panel Board Full Color Indoor Rental LED Screen
Main features
1. Die-cast aluminum cabinet, excellent thermal efficiency. light and thin, easy to handle, install and remove.
2. Cabinet Size: 500mm*500mm. Fast locks design, cabinets can be easily assemblied in 7 seconds.
3. Magnetic modules, front access, Truss hanging and ground support both available.
4. Easy to maintenance.Adopting modular design, an assembled cabinet can install and disassemble quickly and easily.
5. Fast lock design, it can reduces the labor cost.
Parameter
| BIR-I-3 | |
| Physical Pitch | 3.91mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 65,536 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64/64*168 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 |
| Single Cabinet Weight | 7/13kg/panel |
| Average Power Consumption | 60/120W/panel |
| Max Power Consumption | 110/400W/panel |
| Brightness | 900-1200 nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Refresh Rate | >1,920 Hz |
Pruduct details
Ground stacking beam
Hanging bar
Ground and hanging both available.
High refresh rate
Our led display with 16 bit graycale, better than normal diaplay's graycale, picture vivid and vivid.

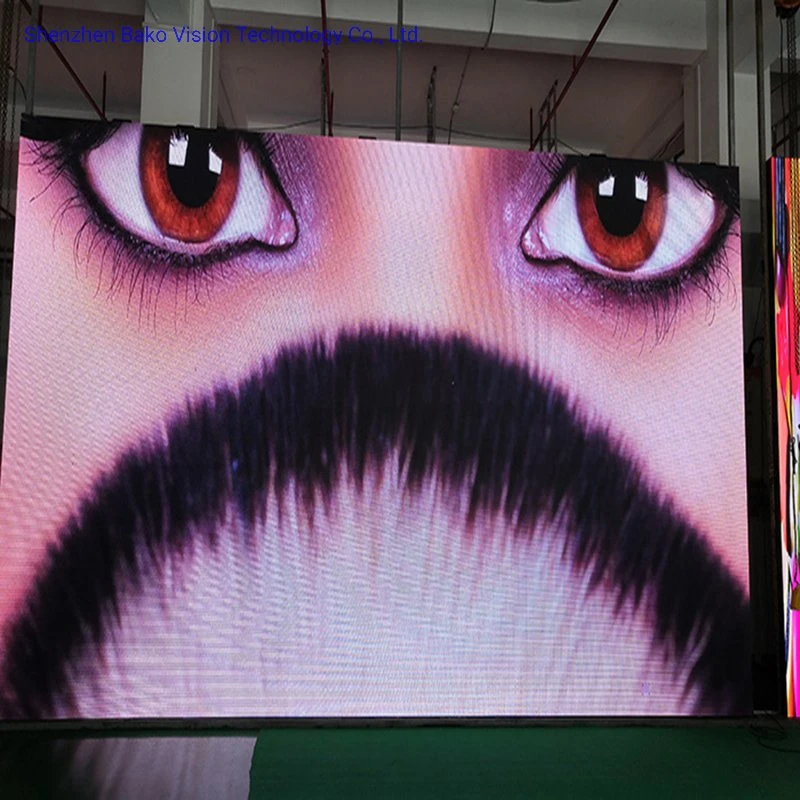

The vedio quality of indoor P3.91 LED display
Image quality is exquisite, nonlinear correction technology, graphics exquisite and clear; Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.
Main Export Markets:
- North America
- South America
- Europe
- Asia
- Mid East/Africa
- Pacific
Product line
Application Widely
Widely use Stage rental, shopping mall,DJ touring, theme resort, car show, fashion store, house of worship,night club and so on.
About us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our Service
1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.
7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
