V SERIES PRODUCT FEATURES:
. Quiet fan design, excellent heat dissipation.
. Sidelocks design for better consistency and seamless assembly.
. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
. High-performance metal plate cabinet, concise cable.
. The sealed-type back cover, effectively prevent wrong operations from the amateur.
PRODUCT SPECIFICATIONS:
Our service:
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)
Product Photos:
. Quiet fan design, excellent heat dissipation.
. Sidelocks design for better consistency and seamless assembly.
. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
. High-performance metal plate cabinet, concise cable.
. The sealed-type back cover, effectively prevent wrong operations from the amateur.
PRODUCT SPECIFICATIONS:
| NO. | Item | Parameters |
| 1 | Model | V03 |
| 2 | Pixel Pitch (mm) | 3 |
| 3 | Physical Density (dot/m2) | 111111 |
| 4 | LED Configuration | 1R1G1B |
| 5 | LED Type | SMD2020 |
| 6 | Module Size (mm x mm) | 192x192 |
| 7 | Module Resolution (PX x PX) | 64*64 |
| 8 | Module Power Consumption (W) | 19 |
| 9 | Drive Mode | 1/32 Constant Current Drive |
| 10 | Horizontal Viewing Angle (Deg) | 140 |
| 11 | Vertical Viewing Angle (Deg) | 140 |
| 12 | Brightness (cd/m2) | 1200 |
| 13 | Grey Scale | 14 |
| 14 | Refresh Rate (Hz) | ≥1920 |
| 15 | Cabinet Resolution (PX x PX) | 128*128 |
| 16 | Cabinet Max Power Consumption (W) | 530 |
| 17 | Cabinet Average Power Consumption (W) | 177 |
| 18 | Cabinet Size (mm x mm) | 768*768 |
| 19 | Cabinet Weight (Kg) | 26 |
| 20 | Cabinet Thickness (mm) | 120 |
| 21 | Cabinet Material | Steel/Aluminum |
| 22 | Color (M) | >16.7 |
| 23 | Input Voltage (V) | AC 110V~220V+/-10% |
| 24 | Refresh Frame Frequency (Hz) | 60 |
| 25 | Protection Level | IP33 |
| 26 | Working Environment | Indoor |
| 27 | Working Temperature (ºC) | "-20°- +40° |
| 28 | Operation humidity (RH) | 10%-90% |
| 29 | Certificates | CCC, CE,RoHS |
Our service:
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

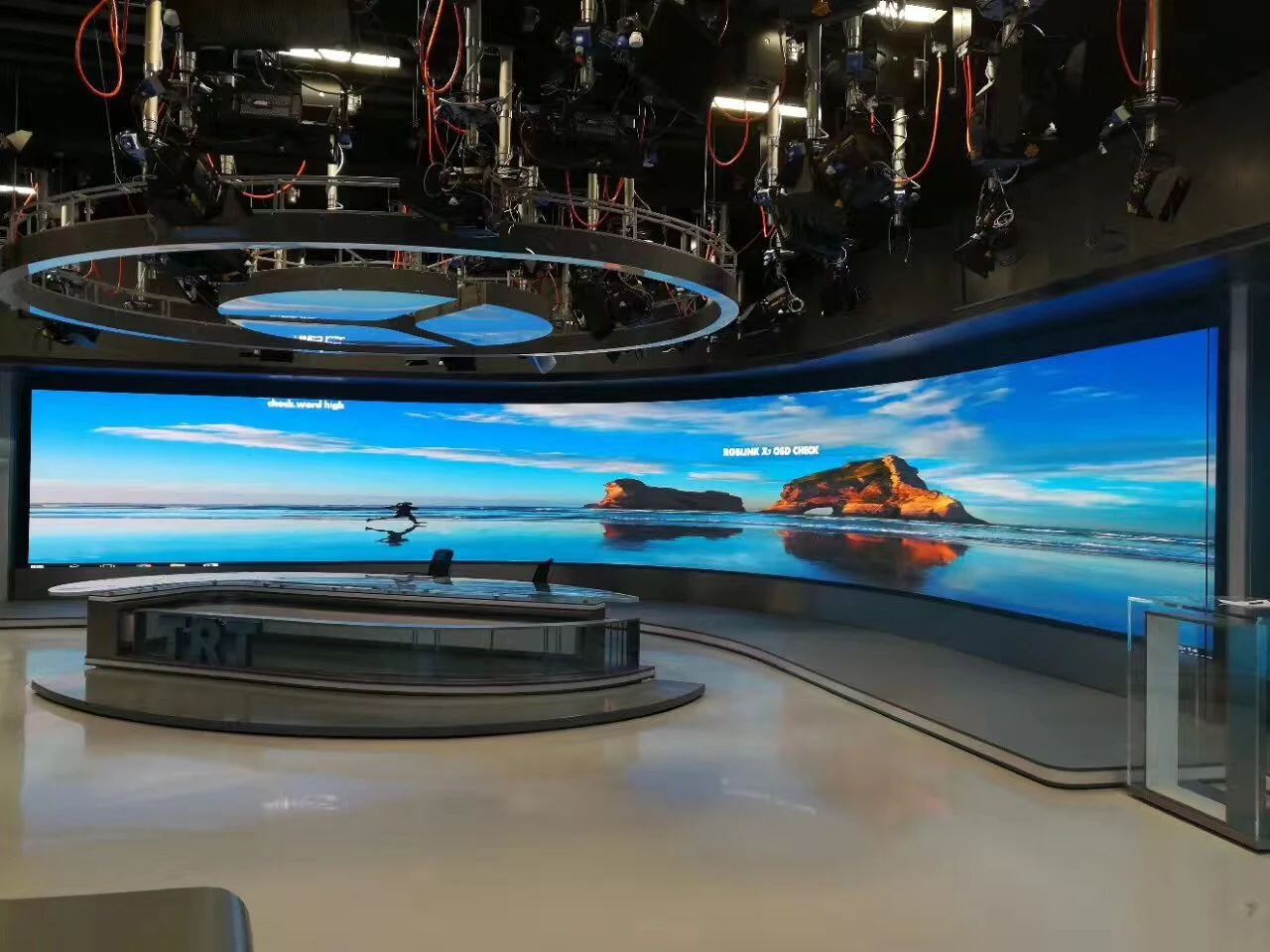

Product Photos:
