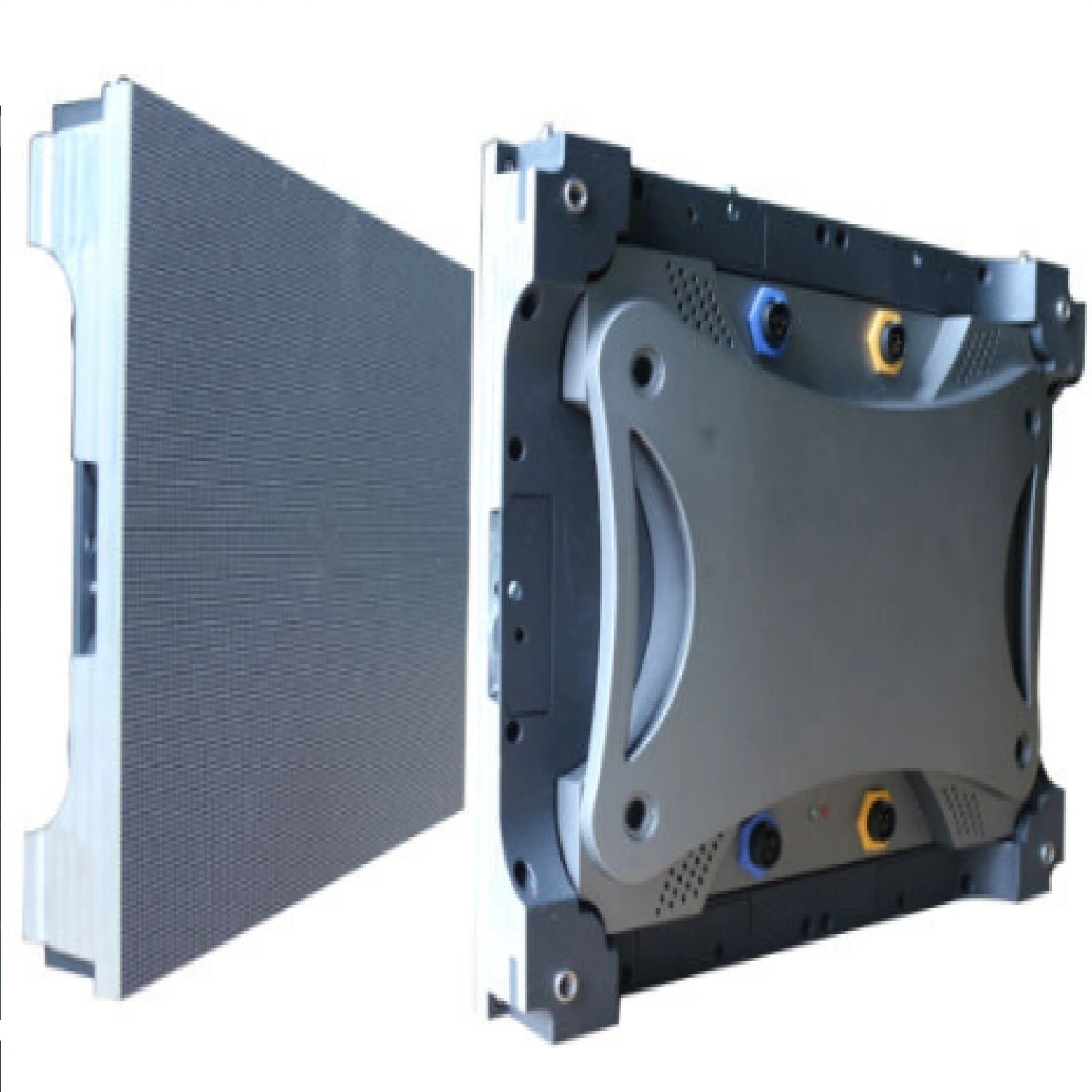

HD LED Display P2 P2.5 LED Video Wall Indoor Fixed LED Screens
1.Most of our product use material as follow:
MBI 5153 IC or ICN 2053 Driver IC
g-energy power supply
4layer pcb 1.6mm ,mask and base
| NO.: | Product name | P2.0 led display screen | |||
| 1 | Pixel Pitch(mm) | 2.0mm | |||
| 2 | Pixel configuration | 1R1G1B/SMD1515 lamp | |||
| 3 | Pixel density | 250000 dots/m2 | |||
| 4 | Brightness | 900 cd/m2 | |||
| 5 | Module size(W*H) | 128*128mm | |||
| 6 | Cabinet Resolution (W*H) | 256dots x256dots | |||
| 7 | Module weight | 800g | |||
| 8 | Cabinet size (W*H) | 512mm×512mm | |||
| 9 | Drive IC | MBI5153 | |||
| 10 | Drive mode | 1/32scan | |||
| 11 | Viewing Angle(V/H) | 140 ºC | |||
| 12 | Grey Scale | 65536 degree | |||
| 13 | Life time | >100,000 Hours (50%) | |||
| 14 | MTBF | >50,000 Hours | |||
| 15 | Operating Voltage | AC110V/220V±10% | |||
| 17 | Screen Power Consumption | Max: 900w/m2; Average:300w/m2 | |||
| 18 | Input Power Frequency | 50/60Hz | |||
| 19 | Operating temperature | -30--60ºC | |||
| 20 | Humidity | 10%-95% | |||
| 21 | Refresh Rate | ≥1920HZ | |||
| 22 | Control Method | Synchronized with computer monitor | |||
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 11 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 11 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully
Payment term: T/T , usually 30~50% down payment before production,balance to be paid before delivery
Delivery time:Production lead time less 20 sqm is about 8-12 working days, more than 50 sqm. is about 15 working days
Free sample or not: Sample is available,but need to pay the material cost and freight cost
MOQ: 1 sqm for led screen,and 1pcs for led module
Guarantee:3 years quality guarantee,after 3 years,we will ask for material cost only,customer pay freight cost
hongking always provide high quality products to our customers,and good after-sale service,obtained a good reputation,we produce our products based on international standards FCC,CE,RoHs,and with a strict quality control system,and confirm 2 to 3 years warranty,during this period,we will repair the default parts with free of charges,after the period,and during the lifetime,we only ask for material costs.
