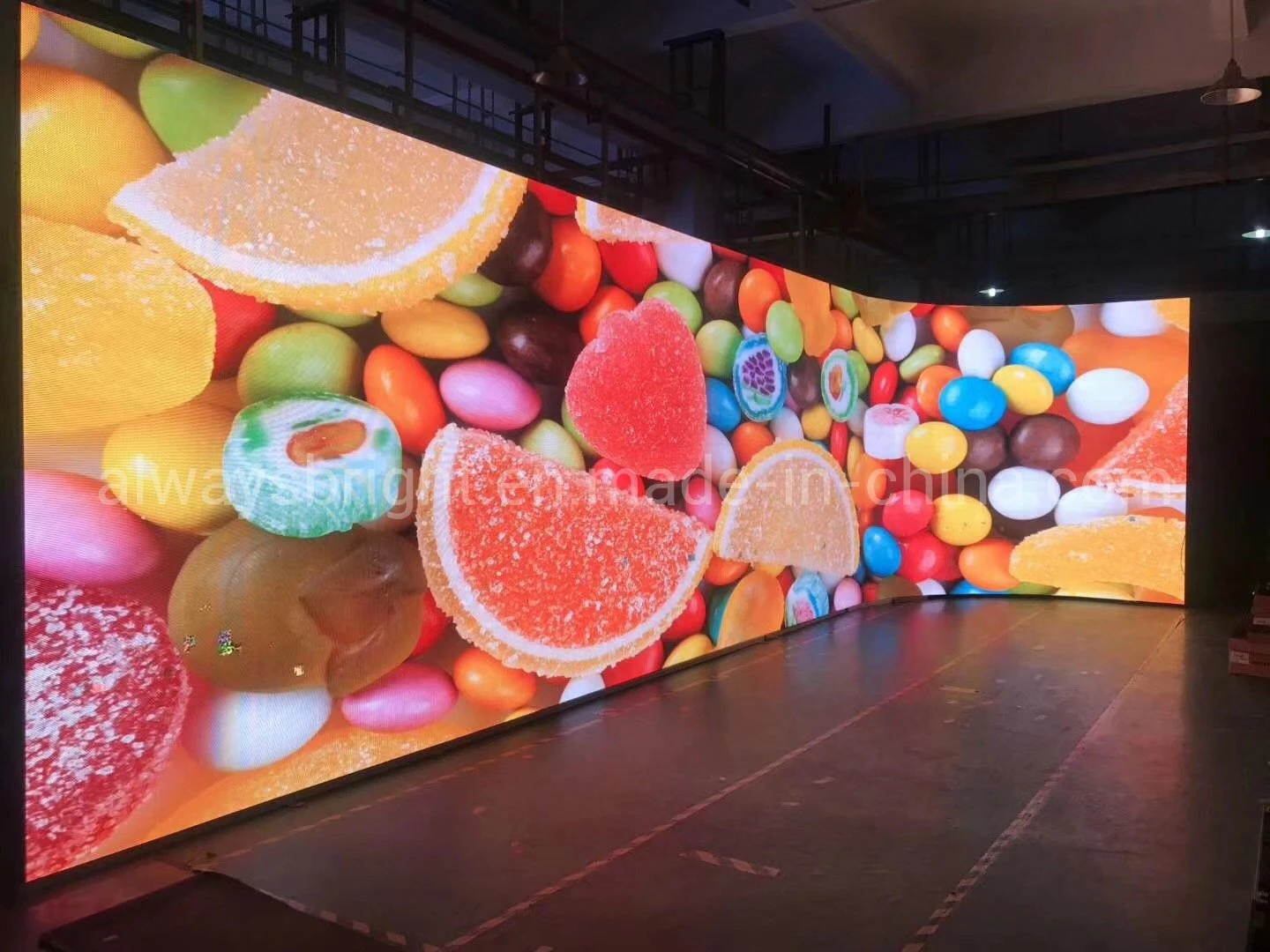

HD Full color P4.81 rental curve led display/screen/video wall
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Application indoor led display panel P4.81 led video wall for rental: Widely applied to concerts, exhibitions, press conference ,stage show, concert and so on.
Specifications:
| Model Number | P4.81 |
| Description | Die-casting Aluminum cabinets with hanging function |
| Application | Outdoor use, AV rental |
| Pixel configuration | SMD2727 |
| Pixel pitch | 4.81mm |
| Cabinet pixel resolution | 104*104 pixels |
| Cabinet dimension | W: 500mm, H: 500mm |
| Module size | W: 250mm, H: 250mm |
| Module pixel resolution | W 104 x H 104pixels |
| Pixel density | 43264 dots/sqm |
| Minimum viewing distance | 4 m |
| Brightness | 6500nits |
| Grey scale | 16384 steps |
| Color Number | 68.7194billion |
| Display Mode | Synchronous with video source |
| Data refresh rate | ≥1920HZ |
| Driver IC | MBI5124 |
| LED drive | 1/13scanning, constant current |
| Control system type | Novastar |
| Control software name | Nova studio |
| Viewing angle | Vertical 120° Horizontal 140° |
| Temperature range | -20ºC to +60ºC |
| Ambient Humidity | 10%-99% |
| Service access | Rear |
| Cabinet weight | 9kg(0.5 x 0.5m) |
| Power Consumption | Max:800 w/SQM; Average : 400w/SQM |
| Protection Level | Front: IP65 Rear: IP54 |
| Lifetime to 50%brightness | 100000hr |
| LED Failure Rate | <0,00001(Led display line standard <0,0001) |
| MTBF | > 100.000 hours |
| Input power cable | AC110V to 220V |
| Signal input | DVI |
| Certification | CE, ROHS, FCC marked |
| Warranty | 2 Years quality warranty |
After-sale service
1. Our products have two years warranty service ,lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48hours.
3. We offered training to our customer who includes operating and maintenance of our products.
4. In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
