outdoor P4.81
Overview:
Pixel pitch: 4.81mm
Refresh rate: ≥1920Hz
Brightness: 5000 CD
Cabinet Size: 500*500mm Or 500*1000mm
Cabinet Weight: 23kg
Pixel density:43264dots/m2
Features:
- Light Weigh and small structure
- Wide range of sizes
- Fast Installation
- Durable and sturdy aluminum casting cabinet
- IP43 Waterproof
| Product name | P4.81 led display | |||
| Pixel Pitch(mm) | 4.81mm | |||
| Pixel configuration | 1R1G1B/SMD1921 Black lamp | |||
| Pixel density | 43264dots/sqm | |||
| Brightness | ≥5000cd/sqm | |||
| Module size(W*H) | 500mm×500mm | |||
| Module Resolution (W*H) | 52 dots x 52dots | |||
| Module weight | 600g | |||
| Cabinet size (W*H) | (500mm×500mm)or(500mmx1000mm) | |||
| Drive IC | MBI5124 | |||
| Drive mode | 1/13 scan | |||
| Viewing Angle(V/H) | 140 ºC | |||
| Grey Scale | 65536 degree | |||
| Life time | >100,000 Hours (80%) | |||
| MTBF | >50,000 Hours | |||
| Operating Voltage | AC110V/220V±10% | |||
| Screen Power Consumption | Max: 900w/sqm; Average:300w/sqm | |||
| Input Power Frequency | 50/60Hz | |||
| Operating temperature | -30--60ºC | |||
| Humidity | 10%-95% | |||
| Refresh Rate | ≥1920HZ | |||
| Control Method | Synchronized with computer monitor | |||
| Color Temperature | 6500K-9500K | |||
| LED control system | LINSN,Nova-star,Colorlight is selectable | |||
| Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km | |||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI | |||
| Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 | |||

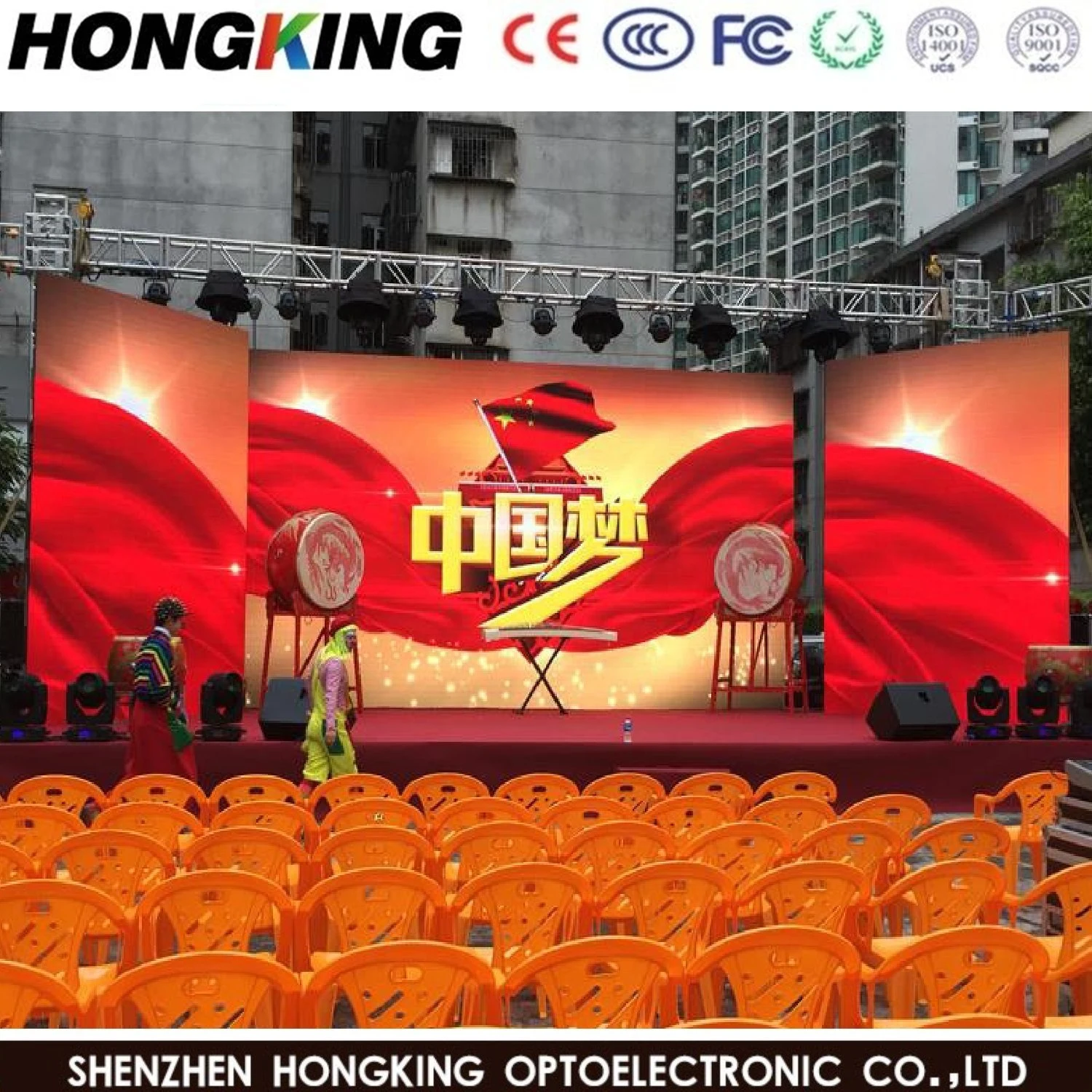

Product Application Cases:
Why choose HONGKING?
HONGKING is a professional manufacturer of LED display screens over 8 years. We have strong R&D to ensure high end products with user-friendly design .
The prices are very competitive due to our large-scale procurement of raw material. We can help you to win more orders if you are distributors.End users will also be satisfied with our quality and price.
We have CE, FCC and Rohs certificates. Our products are exported over 85 countries .We have rich experience in handling all possible problems when you import goods from China .
We have a wide variety of products for you to choose from .All products are strictly tested before release to market and we test every LED screen 72 hours before delivery.
Our sales are well trained to offer professional advice on your specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
We offer 2-3 years warranty and life time maintenance .Even when warranty time expires , we only charge material costs.
Professional production:
FAQ :
1. Q: Can I get some samples?A: Yes,sample order is available for quality check and market test.
2. Q: What's your payment term? How long is your delivery time ?
A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
At least 30%deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
A: Non-artificial damage, 2-3 years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.
7. Q:How can I get technical support?
A: We treasure every customer that shake hands with our Hongking.
We offer you TEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
8. Q:Is Available to print customer required logo on your LED product ?
A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement
If have any question please kindly feel free to contact with us
Contact person : Suffe Chang
