full color transparent led video wall for shopping mall/building wall
PRODUCT FEATURES
1. Made with panel size 500*1000mm,convenient for different screen size
2. Super slim thickness,the thinnest is only 9mm for the module,the most thickness is 65 mm for panel
3. Lightweight, only with 7.5 kgs for each panel,
4. High transparency, up 70%,good light transmission
5. Ultra power saving, only with 1/3 power consumption of traditional screen
6. Strong and good transparent PC material with long life span
7. Fast installation with U-shaped kayser,easy connecting between panels
8. Seamless splice without peripheral structure
9. Application: widely used for shopmall window, stage background,clear led video wall

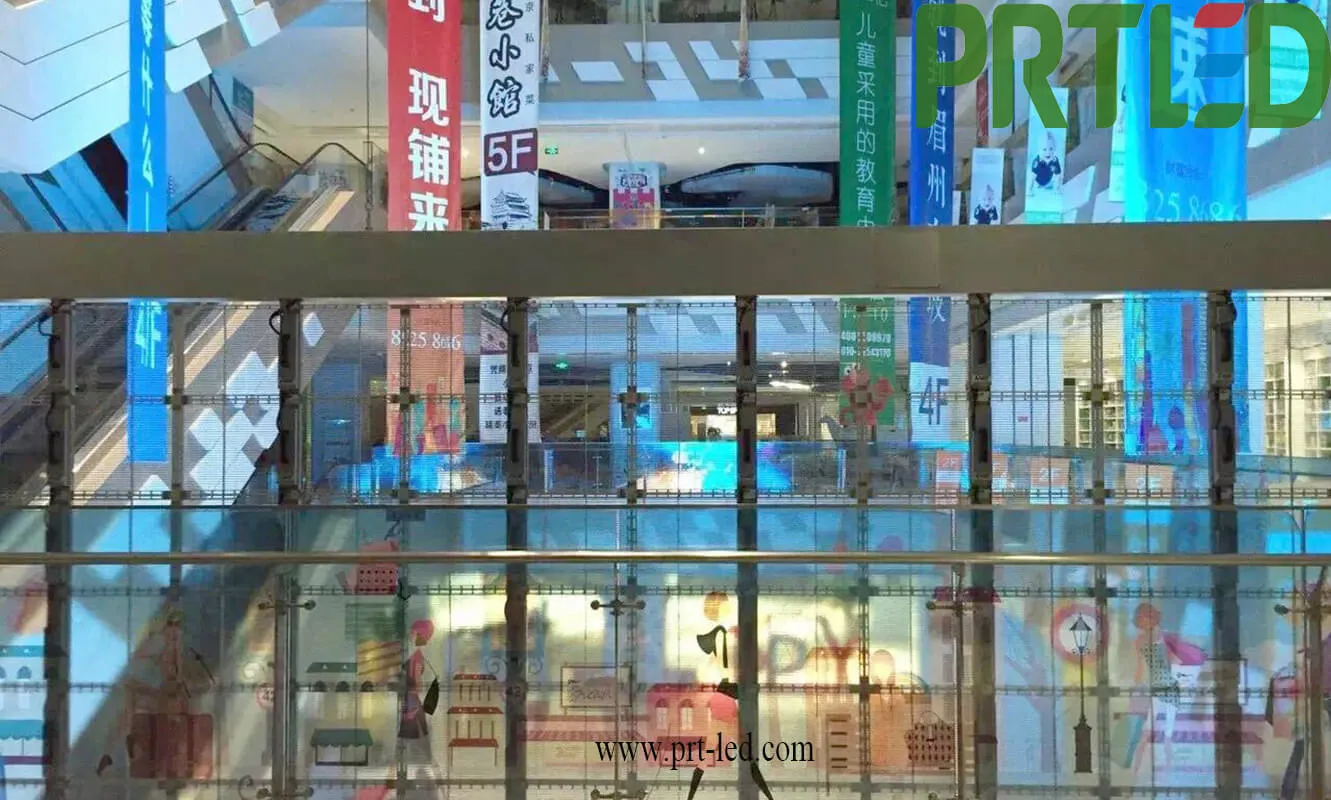

More pictures for good understanding this kind of transparent display panels:
PRODUCT FEATURES
1. Made with panel size 500*1000mm,convenient for different screen size
2. Super slim thickness,the thinnest is only 9mm for the module,the most thickness is 65 mm for panel
3. Lightweight, only with 7.5 kgs for each panel,
4. High transparency, up 70%,good light transmission
5. Ultra power saving, only with 1/3 power consumption of traditional screen
6. Strong and good transparent PC material with long life span
7. Fast installation with U-shaped kayser,easy connecting between panels
8. Seamless splice without peripheral structure
9. Application: widely used for shopmall window, stage background,clear led video wall
| P3.9 SMD1921 Transparent LED Glass Screen Specification | |
| Pixel pitch | 7.8mm x 15.6mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 250mm x 250mm |
| Resolution of module | 32x16dots |
| Size of cabinet | 500mm x 1000mm x 65mm |
| Resolution of cabinet | 64x64 dots |
| Material of Cabinet | Aluminum + PC |
| Weight of Cabinet | 7.5 Kg/pc |
| Brightness | >4200cd/sq.m |
| Density | 8192dots/sq.m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 8-60M |
| Maximum power consumption | 400W/sq.m |
| Average power consumption | 280W/sq.m |
| Driving method | 1/4 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC110V~240V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 47~63Hz |
| Refresh frequence | >2880Hz |
| IP grade | IP42 |
| Life Span | >50,000 hours |
| Data transafer method | RJ45/DVI |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
