FEATURES:
. IP65 waterproof grade ensure work well in outside
. Wall mounted/ Single column/ Double column installation for options
. High brightness of 7000 nits ensure good effect even face to sunshine
Screen parameters:

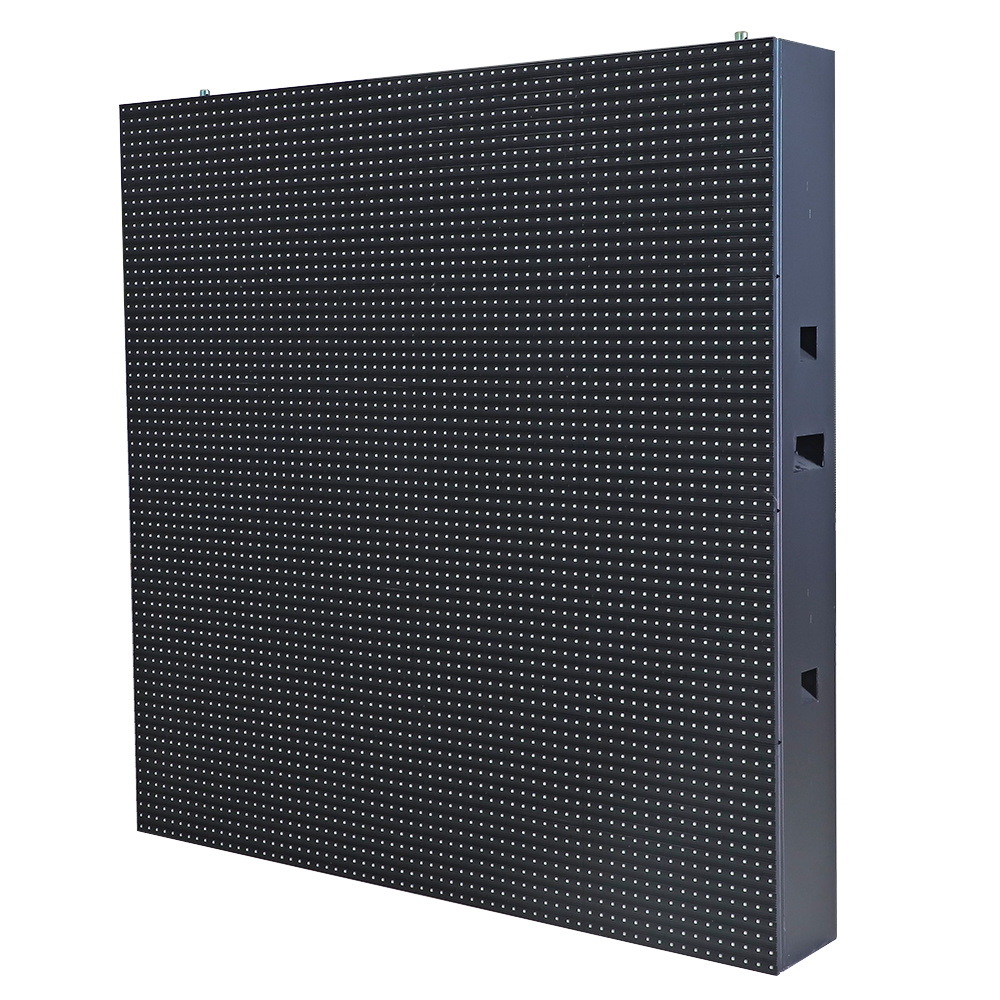

PRODUCT PHOTOS:
Assessory:
CAD DRAWINGS:
FACTORY TOUR:
PACKAGE:
CERTIFICATIONS:
CULTURE:
OUR SERVICE:
1. Your inquiry will be replied in 24 hours
2. Full solution will be customized according to your requirement
3.Two years after-sales warranty, free repair service during the quality warranty period
HOW TO GET A FULL QUOTATION?
Send the message of pixel pitch,specific size and installation information to us. Customized solution will be glad to provide.
. 960×960mm standard cabinet for short delivery time(also can be customized) ,both steel iron material and aluminum material for options.
. IP65 waterproof grade ensure work well in outside
. Wall mounted/ Single column/ Double column installation for options
. High brightness of 7000 nits ensure good effect even face to sunshine
Screen parameters:
| NO. | Parameters | Specifications |
| 1 | Model | R10 |
| 2 | Pixel Pitch(mm) | 10 |
| 3 | LED | SMD3535 |
| 4 | Screen Resolution | 10000dots/sqm |
| 5 | Scan Method | 1/4 |
| 6 | Module size(mm) | 320x160 |
| 7 | Cabinet size(L*H*W mm) | 960x960x150 |
| 8 | Cabinet(Kg) | 36 |
| 9 | Viewing angle | H:160°/ V:160° |
| 10 | Grey Scale | 16bit |
| 11 | Refresh rate(HZ) | ≥1920HZ |
| 12 | Brightness(nits) | ≥7000 |
| 13 | Working Voltage(V) | AC 100~240V |
| 14 | AVE. power consumption (W/m2) | 250 |
| 15 | MAX. power consumption(W/m2) | 600 |
| 16 | IP grade | F:IP65 / R:IP54 |
| 17 | Working humidity | 10~95%RH |
| 18 | Storage humidity | 10~95%RH |
| 19 | Working temperature | -30ºC~60ºC |
| 20 | certificates | CCC,FCC,CE,RoHS |
PRODUCT PHOTOS:
Assessory:
CAD DRAWINGS:
FACTORY TOUR:
PACKAGE:
CERTIFICATIONS:
CULTURE:
OUR SERVICE:
1. Your inquiry will be replied in 24 hours
2. Full solution will be customized according to your requirement
3.Two years after-sales warranty, free repair service during the quality warranty period
HOW TO GET A FULL QUOTATION?
Send the message of pixel pitch,specific size and installation information to us. Customized solution will be glad to provide.
