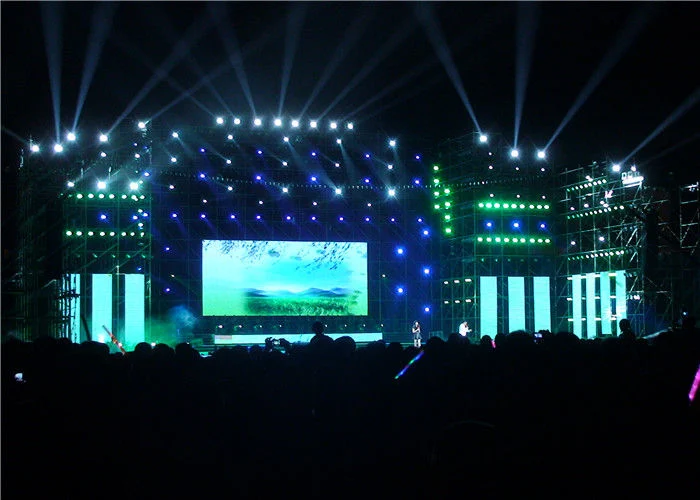

Full Color LED Display Indoor Rental LED Screen Panel
P3.91 mm indoor led Screen ( 500 mm X 500mm or 500x1000mm)
CE certificate from TUV
Reddot Award 2017
Feature
1. Good Led Lamps. High-quality packaged LED display chip with high brightness, large angle, anti-UV, anti-static and so on.
2. Adopt fully automated production process to improve product reliability and stability.
3. Die-casting Aluminum cabinet design, integrated molding accuracy is higher.
4. Brand Raw Material. The use of materials to ensure that high temperature, low temperature, high humidity application environment is safe and reliable.
5. Strong Locks for hanging installation
The cabinets locks are smooth-edged, easy handling and strong that you can hang up many cabinets in the same row.
6. UI LCD display. The rear box has an LCD display that it shows voltage, temperature, cabinet usage timing for every time used and total hours of usage.
Power and signal lamps indicate cabinet status.
7. Dual data connection. There is optional data connecting port on cabinets under a rear box, you can use it if standard one fails.
Ultra Slim and Lightweight Simple and Easy Maintenance
Ultra slim edge 6mm, display thickness 35mm Simply assembled
Net weight 28kg per set Magnetic modules for front access
Superior Electrical Features Slim, Lightweight, and Quiet
The Dural signal backup port 500mmx500mm or 500mmx1000mm cabinet
UI LCD monitoring display indicates the status 80mm thickness, 7 KG per cabinet
| Model | BIR-I-2 | BIR-I-3 | BIR-I-4 | BIR-I-6 |
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 112896 pixels/m² | 65536 pixels/m² | 43264 pixels/m² | 25600 pixels/m² |
| Module Dimensions (W× H) (mm) | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions (mm) | 500*500*80 500*1000*80 | 500*500*80 500*1000*80 | 500*500*80 500*1000*80 | 500*500*80 500*1000*80 |
| NO .of Modules Per Panel (W × H) | 2x2 | 2x2 | 2x2 | 2x2 |
| Physical Resolution of Module ( W× H) | 84*84/64*168 | 64*64/64*128 | 52*52/52*104 | 40*40/40*80 |
| Panel Material | 168*168/128*336 | 128*128/128*256 | 104*104/104*208 | 80*80/80*160 |
| Single Cabinet Weight | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281trillion | 281trillion | 281trillion | 281trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 60/120W/Panel | 60/120W/Panel | 60/120W/Panel | 60/120W/Panel |
| Max Power Consumption | 110/400W/Panel | 110/400W/Panel | 110/400W/Panel | 110/400W/Panel |
| Operating Temperature | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC |
| Storage Temperature | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | 900-1200nits | 900-1200nits | 900-1200nits | 900-1200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Certification | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL |
Part of ExhibitIons during this year
About Us:
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a high-tech science & technology enterprise of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team, we are always open and been proficient in breaking the new model and tooling for customized solutions as well as creative products.
Technical support:
1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
5. multi-language software Guidance
Why Choose us:
1. Well-experienced: Bako Vision started in Shenzhen in 2005, fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens. And every sales team leader has been working in LED display industry over 14 years.
2. Quality Assurance: Equipped with multiple SMT lines and DIP lines and high-speed machines, imported from Panasonic and Samsung. Our quality management is complying with 7S and ISO9001-2000/ISO14001 product certification systems. At the same time, our products have obtained CCC, CE, ETL, RoHS, FCC, UL.
3. Capacity status: The company's monthly production capacity has reached 800 KK, take P3.91 as an example, it can produce 15,000 square meters per month.
4. After-sales support: The company has set up an after-sales service department. There are many professional technicians engaged in the engineering installation, on-site debugging and training guidance of LED display products. We participate in foreign exhibitions many times every year and we can visit you.
