High Resolution LED Screen, Indoor Rental Full Color LED Display
Product Introduction
1.SMD 3 in 1 led encapsulation confirm wide view angle up to 140° for vertical and horizontal,and lower power consumption,energy saving.
2. Die-casting Aluminum material cabinet with slim thickness of 80mm ensure light weight, only 8kgs per panel, can be picked up by one hand, easy to install and dismantle, better for rental use.
3. Panel size can be 500x500mm or 500x1000mm,better for different screen sizes,and combine random.
4. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar.
5. Dot to dot maintenance, quick maintain and save cost.
6.No fans design, no noise caused, good environment protection.

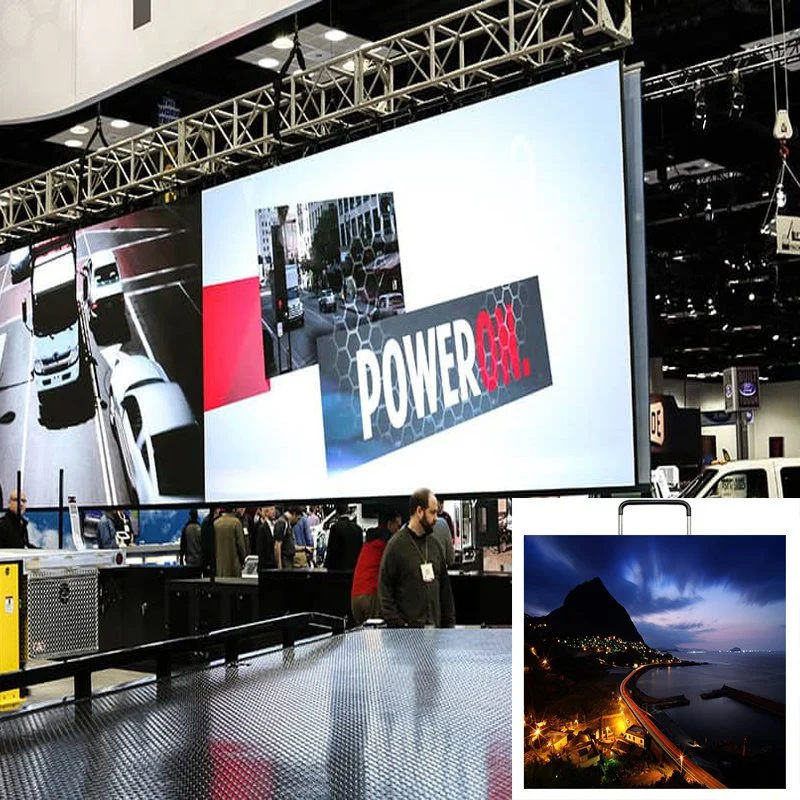

7. Widely used for stage, concert, show, banquet, wedding,stage background,public advertising etc.
8.Can make curvilinear,concave,convex.
Specification
Case
| BIR-III-2X | BIR-III-2 | BIR-III-3 | BIR-III-4 | |
| Physical Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/sqm | 112,896 pixels/sqm | 65,536 pixels/sqm | 43,264 pixels/sqm |
| Module Dimension (W*H)(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Dimension(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| Physical Resolution of Panel(W*H) | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 8/14 kg/panel | 8/14 kg/panel | 8/14 kg/panel | 8/14 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 64/128 W/panel | 64/128 W/panel | 64/128 W/panel | 64/128 W/panel |
| Max Power Consumption | 192/384 W/panel | 192/384 W/panel | 192/384 W/panel | 192/384 W/panel |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | >1,200 nits | >1,200 nits | >1,200 nits | >1,200 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
Case
Color Gamut
Service
BAKO has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Packaging and Shipping
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
