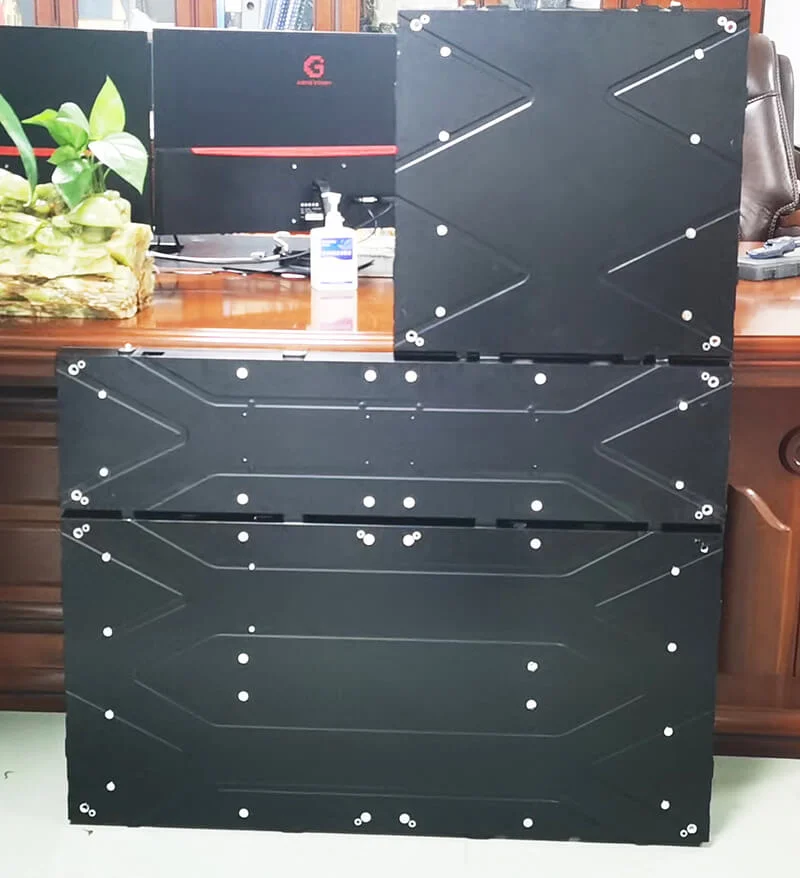

1000mm*250mm /750x250mm/500x250mm for indoor P2.5, P2.604, P2.976, P3.91,P4.81 Indoor LED display, with front maintenance,wall-mounted installation
Product Features:
1. SMD led package ensures wide viewing angle and energy saving;
2. Complete front maintenance and installation
3. Excellent mask design can better protect the LED, and has good anti-reflection properties, which can achieve high contrast
4. Slim thickness, convenient for installation and move,suitable for small image promotion,major shopping malls and supermarkets advertising
5. Pre-maintenance can be carried out by simple tools, it takes about 8 seconds
6. Standard wide voltage AC100V-240V, meeting EMC-Class-B
7. The aluminum panel has good heat dissipation and rust resistance, and has a longer service life
8. It can be fixedly installed or rented to meet the requirements
Need more information,please contact us freely !
All of PRTLED's products produced based on the quality standard of CE,ROHS,FCC,and with strict control system to confirm no problem for each process,and before packing, test the whole screens with 72 hours at least,to ensure good stability,with less after-sale service, so we obtained a good reputation from customers
Why choose PRTLED?
Product Features:
1. SMD led package ensures wide viewing angle and energy saving;
2. Complete front maintenance and installation
3. Excellent mask design can better protect the LED, and has good anti-reflection properties, which can achieve high contrast
4. Slim thickness, convenient for installation and move,suitable for small image promotion,major shopping malls and supermarkets advertising
5. Pre-maintenance can be carried out by simple tools, it takes about 8 seconds
6. Standard wide voltage AC100V-240V, meeting EMC-Class-B
7. The aluminum panel has good heat dissipation and rust resistance, and has a longer service life
8. It can be fixedly installed or rented to meet the requirements
Need more information,please contact us freely !
| P5 SMD Outdoor full Color LED Panel 800x1200mm | |
| Pixel pitch | 2.604mm |
| Size of cabinet/panel | W750 x H 250 x D45 mm |
| Resolution of cabinet/panel | 96 x 96 dots |
| Weight of Cabinet/panel | 5kgs/pc |
| Brightness | >1000 cd/m |
| Density | 160000 dots/m² |
| Best viewing angle | 160° /160° |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-40M |
| Maximum power consumption | <800W/m² |
| Average power consumption | <180W/m² |
| Driving method | 1/ 32scan |
| Control method | Synchronization/Asynchonization |
| Maintenance | Front service |
| Gray scale | 16 bits |
| Color temperature | 6500k ~14000K |
| Working voltage | AC90-260V |
| Working temperature | -40ºC~+75ºC |
| Storage temperature | -55ºC~+120ºC |
| Operating humidity | 10% ~90% |
| MTBF | 10000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >3840Hz |
| IP grade(Front/Back) | IP31 |
| Life Span | >100,000 hours |
| Data transafer method | RJ45 |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Systems operating platform | WINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary development |
All of PRTLED's products produced based on the quality standard of CE,ROHS,FCC,and with strict control system to confirm no problem for each process,and before packing, test the whole screens with 72 hours at least,to ensure good stability,with less after-sale service, so we obtained a good reputation from customers
Why choose PRTLED?
- PRTLED is a professional manufacturer of LED display screens more than years. We have strong R&D team to ensure high end products with user-friendly design ,and often updated to meet different requests
- Our prices are high competitive due to our large-scale procurement of raw material. We can help you to win more orders if you are distributors.also the end users will also be satisfied with our quality and price.
- We have CE, FCC and RoHs certifications to confirm the quality. our products have been sent out to more than 50 countries .We have rich experience in handling all problems when you import goods from China .
- We have a wide variety of products for you to choose from P0.9mm to P10mm for indoor,and P2.6 to P16 for outdoor.All products are strictly tested before release to next process, and we test every LED screen 72 hours before delivery.
- Our salesmen/saleswomen have gotten well training to provide customers with professional advice on specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
- We offer 2-3 years warranty and life time maintenance .Even after warranty time expired , we will only charge material costs
FYI: we would like to know more details before offering you the best quotation:
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.
Thank you for your visit, if you want more details, please contact us without hesitation !
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.
Thank you for your visit, if you want more details, please contact us without hesitation !
