PRODUCT FEATURES:
. Quiet design(fanless), excellent heat dissipation.
. Fast locking system for better consistency and seamless assembly.
. No mosaic phenomenon ,better contract ratio.
. High-precision die-casting design,light weight and easy assembly/dismantle.
. Nationstar leds, High refresh rate, high grey scale for TV STUDIO / TV STATIONS.
PRODUCT TECHNICAL SPECIFICATIONS:

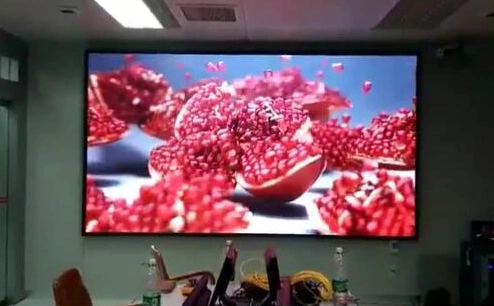

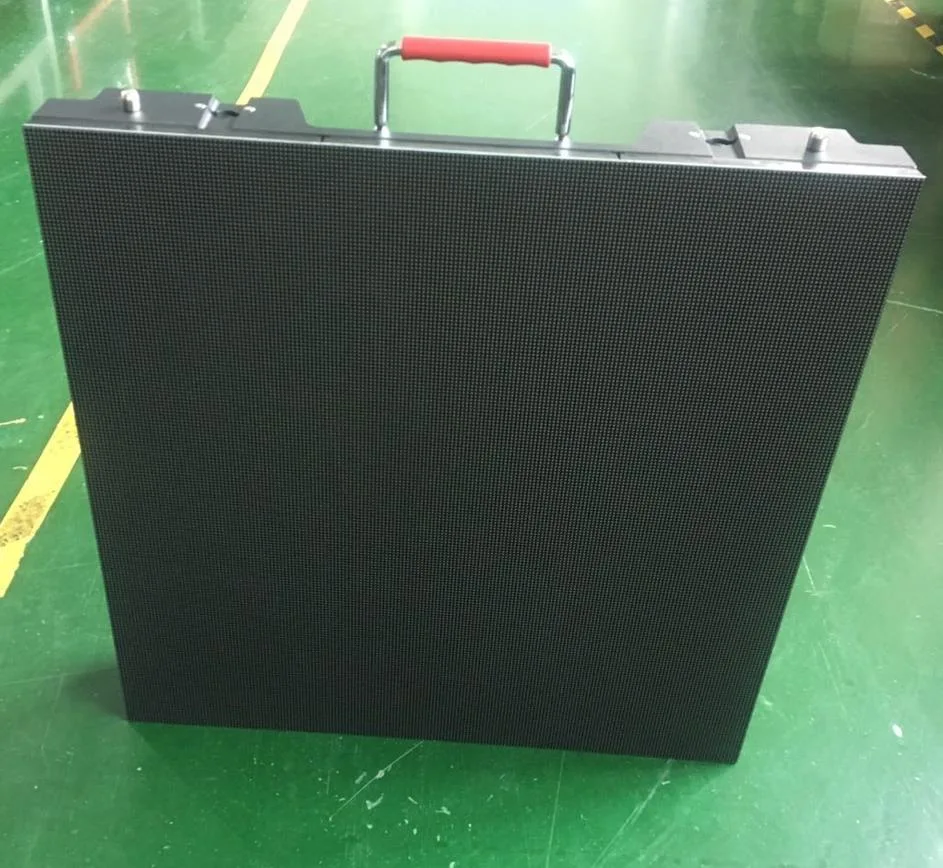

PRODUCT PHOTOS:
PACKAGE:
CERTIFICATES:
CKGLED FACTORY WORKSHOP:
CKGLED is a National Level High & New Technology Enterprise in China.
CKGLED offers LED display's design & production, Project installation and rental service.
CKGLED owns more than 20,000 SQM,two production bases with over 400 employees , which ensures our capacity of 6000sqm every month.
CKGLED has near 20 experienced engineers in LED application field. Almost 80 technicians focus on research & development, and quality control.
CKGLED equipped complete and advanced production facilities, monthly output up to 6000m2
CKGLED has solid cooperation with Nationstar/ Nichia/ Cree/ Kinglight, Meanwell / MBI, Jinlongyu etc. International standard first-class raw material suppliers.
CKGLED has built long-term business cooperation with companies from more than 150 countries in the world.
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality
48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
FOREIGN EXHIBITION:
AFTER-SALE SERVICE:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
. Quiet design(fanless), excellent heat dissipation.
. Fast locking system for better consistency and seamless assembly.
. No mosaic phenomenon ,better contract ratio.
. High-precision die-casting design,light weight and easy assembly/dismantle.
. Nationstar leds, High refresh rate, high grey scale for TV STUDIO / TV STATIONS.
PRODUCT TECHNICAL SPECIFICATIONS:
| NO. | Parameter | Specifications |
| 1 | Model | CA2 |
| 2 | Pixel Pitch(mm) | 2.5 |
| 3 | LED encapsulation | SMD2020 |
| 4 | Screen Resolution(dots/sqm) | 160000 |
| 5 | Scan Method | 1/32 |
| 6 | Module size(mm) | 160x160 |
| 7 | Cabinet size(L*W*H) | 480x480x80mm |
| 8 | Maintenance | Front / Rear service |
| 8 | Cabinet(Kg) | 6.8KG |
| 9 | Viewing angle | H:160° V:160° |
| 10 | Grey Scale | 12bit |
| 11 | Refresh rate(HZ) | ≥3840 |
| 12 | Brightness(nits) | ≥1200 |
| 13 | Working Voltage(V) | AC 100~240V |
| 14 | AVE. power consumption (W/sqm) | 240 |
| 15 | MAX. power consumption(W/sqm) | 560 |
| 16 | IP grade | IP31 |
| 17 | controller | Nova |
| 18 | Working humidity | 10~90%RH |
| 20 | Working temperature | -20ºC~40ºC |
| 21 | Storage temperature | -40ºC~70ºC |
PRODUCT PHOTOS:
PACKAGE:
CERTIFICATES:
CKGLED FACTORY WORKSHOP:
CKGLED is a National Level High & New Technology Enterprise in China.
CKGLED offers LED display's design & production, Project installation and rental service.
CKGLED owns more than 20,000 SQM,two production bases with over 400 employees , which ensures our capacity of 6000sqm every month.
CKGLED has near 20 experienced engineers in LED application field. Almost 80 technicians focus on research & development, and quality control.
CKGLED equipped complete and advanced production facilities, monthly output up to 6000m2
CKGLED has solid cooperation with Nationstar/ Nichia/ Cree/ Kinglight, Meanwell / MBI, Jinlongyu etc. International standard first-class raw material suppliers.
CKGLED has built long-term business cooperation with companies from more than 150 countries in the world.
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality
48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
FOREIGN EXHIBITION:
AFTER-SALE SERVICE:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
