V SERIES PRODUCT FEATURES:
· Quiet fan design, excellent heat dissipation.,
· Sidelocks design for better consistency and seamless assembly.
· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
· High-performance metal plate cabinet, concise cable.
· The sealed-type back cover, effectively prevent wrong operations from the amateur.
PRODUCT SPECIFICATIONS:
| NO. | Item | Parameters |
| 1 | Model | V04 |
| 2 | Pixel Pitch (mm) | 4 |
| 3 | Physical Density (dot/m2) | 62500 |
| 4 | LED Configuration | 1R1G1B |
| 5 | LED Type | SMD2020 |
| 6 | Module Size (mm x mm) | 256*128 |
| 7 | Module Resolution (PX x PX) | 64*32 |
| 8 | Module Power Consumption (W) | 26 |
| 9 | Drive Mode | 1/16 Constant Current Drive |
| 10 | Horizontal Viewing Angle (Deg) | 140 |
| 11 | Vertical Viewing Angle (Deg) | 140 |
| 12 | Brightness (cd/m2) | 1,200 |
| 13 | Grey Scale | 14 |
| 14 | Refresh Rate (Hz) | ≥1920 |
| 15 | Cabinet Resolution (PX x PX) | 192*192 |
| 16 | Cabinet Max Power Consumption (W) | 472 |
| 17 | Cabinet Average Power Consumption (W) | 160 |
| 18 | Cabinet Size (mm x mm) | 768*768 |
| 19 | Cabinet Weight (Kg) | 26 |
| 20 | Cabinet Thickness (mm) | 120 |
| 21 | Cabinet Material | Steel/Aluminum |
| 22 | Color (M) | >16.7 |
| 23 | Input Voltage (V) | AC 110V~220V+/-10% |
| 24 | Refresh Frame Frequency (Hz) | 60 |
| 25 | Protection Level | IP33 |
| 26 | Working Environment | Indoor |
| 27 | Working Temperature (ºC) | "-20°- +40° |
| 28 | Operation humidity (RH) | 10%-90% |
| 29 | Certificates | CCC, CE,RoHS |
About CKGLED:
CKGLED is based in Shenzhen and since it's establishment until this day, CKGLED owns two production bases with over 400 employees , which ensures our capacity of 6000sqm every month.Equipped with a team of professional& experienced technicians and most advanced SIEMENS & PANASONIC production machines, CKGLED aims to produce stable quality products with the highest cost-effectiveness for our global customers.
Process:
Quality CERTIFICATIONS:
CKGLED's product quality management is strictly adhering to the ISO9001:2008 certifications system and 7S management standards.Thanks to those efforts, our products have passed certificates of CE, RoHS, CCC, FCC, ETL etc.

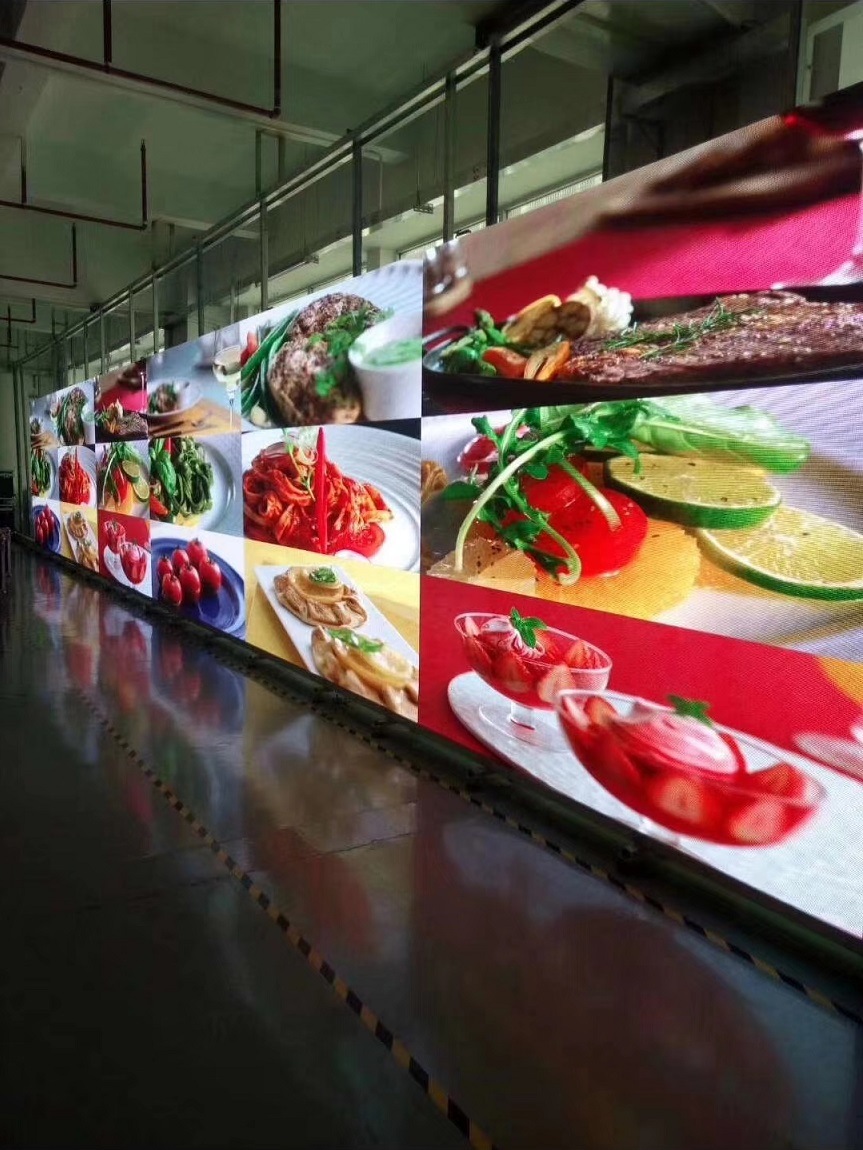

PRODUCT PICTURES:
Package:
Packing>>>
For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing
For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing
One wooden case including 2 cabinets, one flight case including 6 cabinets
Shippment>>>
By air or sea, FOB shenzhen
UPS/DHL/FedEx/Express(door to door)and so on
Delivery time>>>
Within 15 days counting from 30% prepayment arrived at CKGLED account.
Payment term>>>
T/T(30% deposit, the remained 70% payment made before factory shipment )
Quality assurance>>>
We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have Age testing, shaking testing, waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure transportation and quality products.
Pre-Sales Service
--Provide details about the production procedure
--Assign engineers for installation and testing
Sales Service
--Customized solution designs
--Product rendering and steel structure drawing
--CKGLED's successful project examples and visits to our production and base
After-Sales Service
--Two-year quality warranty with lifelong maintenance.
--Free guarantee repair (including labor and material):Free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period.We will never exempt our responsibilities on product owned defects.
--Responding time:Upon receiving user's notification, we ensure 24-hour after-sales technical support.
--Spare parts:Necessary spare parts are provided together with products to customers.
--Free technical training:Integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
--Telephone investigation:Our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
--Software upgrade:Lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
