Basic Info.
Model NO.
LEDA-OC-P37.5
Tube Chip Color
IP Rating
IP65
Pixel Pitch
37.5
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display
Average Power Consumption
100W/Sqm
Pixel Density
711
Scanning Mode
Static Scan
Certification
CE, RoHS, UL, CCC, ETL
Trademark
LEDA
Specification
CE, ROHS, CCC
Origin
Shenzhen, China
Product Description
1, Super Light Weight, Super Thin
LEDA Curtain LED Display adopts aluminum cabinet, transparent design, the display is about 20kg/sqm.
Light weight curtain display saves the cost of installation structure, installation cost and shipping cost.
2, Good Heat Dissipation
With the transparent design and aluminum cabinet, LEDA Outdoor Curtain led display has super good heat dissipation function.
With this, clients don't need to install air conditioners, saves power cost.

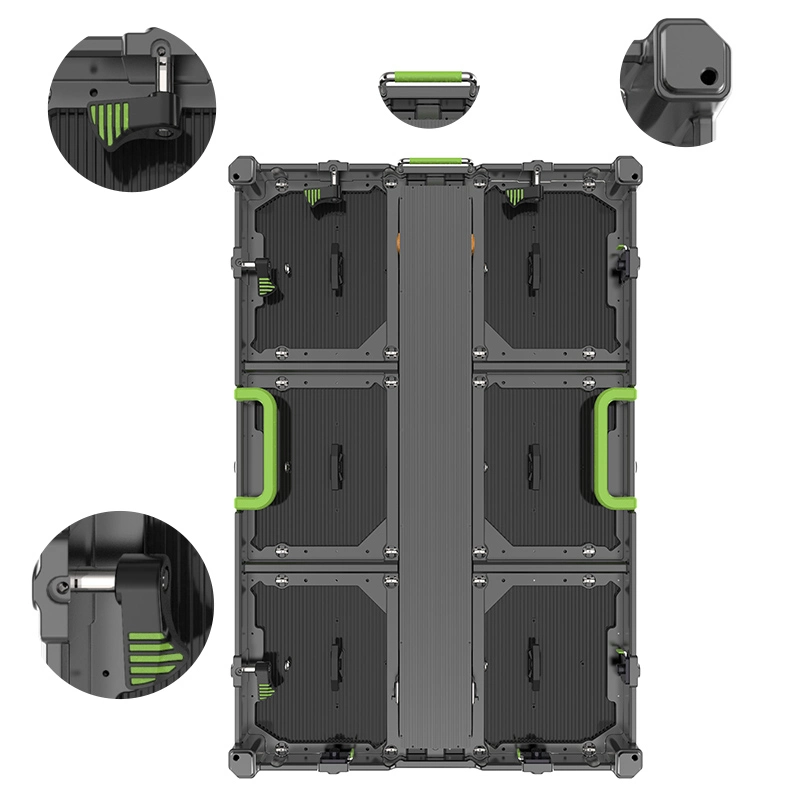

3, Easy and Simple Installation
Fast Locks design guarantees the display can be installed very fast and easy.

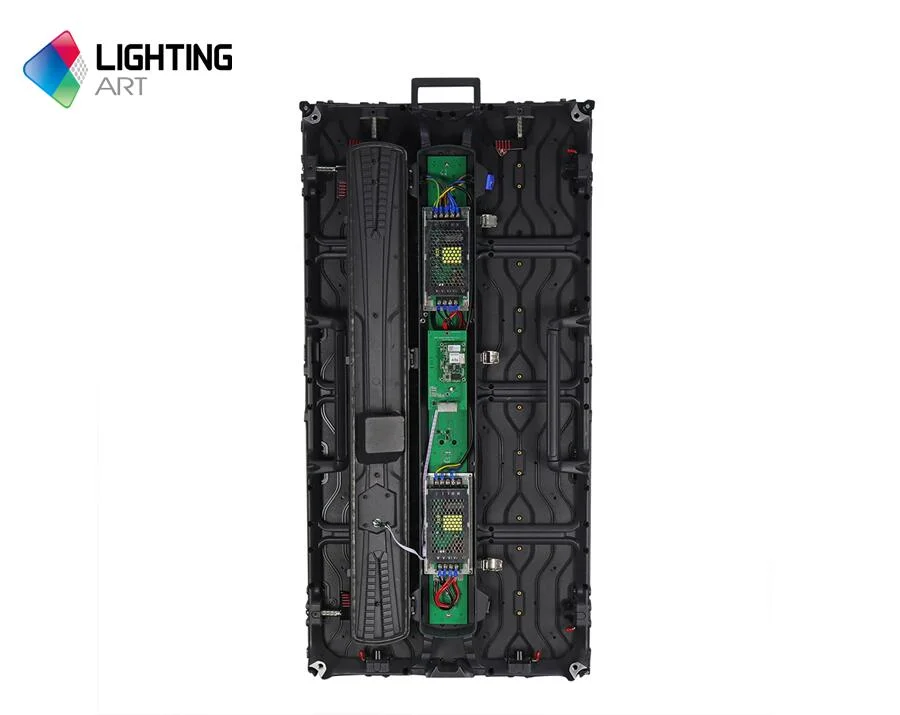

4, Convenient Servicing
LEDA Curtain led display cabinet can be take down from front side and back side, which is very convenient for maintenance. Saves maintenance time and cost.
5, Super Transparent
Super transparent design makes sure the building gets enough light in inner side.
6, High brightness and support brightness automatically adjustment.
7, Long Lifespan, can reach more than 100, 000 hours
8, High contrast, high refresh rate, making the LED display flicker-free when live broadcast.
9, Compatible to many signal sources such as AV, S-video, DVI, VGA, YPbPr, HDMI, SDI, DP, MOV, MPG, NTSC/PAL and etc.
10, Superior Components used only, guaranteed the displays' long lifespan and low maintenance cost.
11, IP65 water proof and dust proof.
Application:
Outdoor building advertising, stage, background, concert, TV-Show, Rental, etc.
Item | Parameters | |
Module |
Model No. | LEDA-OC-P37.5 |
Pixel Pitch | 37.5mm | |
LED Type | DIP | |
Pixel Configuration | 1R1G1B | |
LED Driving Method | Static | |
Module Pixel | 8*8(W*H) | |
Module Size | 300*300MM | |
Cabinet |
Cabinet Pixel | 16*16(W*H) |
Cabinet Size | 600*600MM | |
Cabinet Weight | 10KG(Aluminum Cabinet) | |
Serviceability | Front or Rear | |
LED Display |
Max. Power Consumption | ≤100W/sqm |
Ave. Power Consumption | ≤50W/sqm | |
Hor. Viewing Angle | 120° | |
Verti. Viewing Angle | 60° | |
Brightness | ≥3000 cd/sqm | |
Pixel Density | 711/sqm | |
Contrast Ratio | 3000:1 | |
Processing | 16 bit | |
Colors | 281 trillion | |
Refresh Rate | ≥1000HZ | |
Frame Rate | 60fps | |
Lifetime | 100,000 hours | |
Power | AC220/110 ± 10%, 47~63Hz | |
Operating Temperature | -20ºC to +60ºC | |
Operating Humidity | 20% to 90% | |
IP Water Proof | IP65 | |
Brightness Level | Manual 100 levels,automatically 16 levels | |
Certifications | CCC, FCC, CE, ROHS, UL, ETL |
