1.6PCB 4layer Board Indoor Full Color SMD screen p3.91rental
If you have interests in buying, pleased send A complete inquiry need to show:
1. led screen panel pixel pitch, if you dont know how to choose, contact us
2. led screen size:length ___m; width___m,or cabinet quantity;
3. use for indoor or outdoor; fixed installation or rental?
4. intallation place pictures will be better;
product description :
Product Features: :
1. Light weight and super thin, less than 80mm thickness and only 6.8kgs per panel for 500x500mm,12.5kgs per panel for 500x1000mm, it is portable and easy to move
2. Rental design cabinet, can be fixed or hung,and easy to install and dismantle with fast lock and aviation plugs,and with many different outlooking for choosing
3. High refresh rate up to 3840Hz,and high contrast ratio of 5000:1,real and rich colors and perfect vision effect
4. Packed with flight case, convenient to be collected and transportation,better for rental use
5. This kind of cabinets are suit for outdoor or indoor pixel pitch 2.6mm,2.976mm,3.91mm and 4.81mm,also can be with front and rear maintenance,and can be curved shapes with angle adjusters
certification :

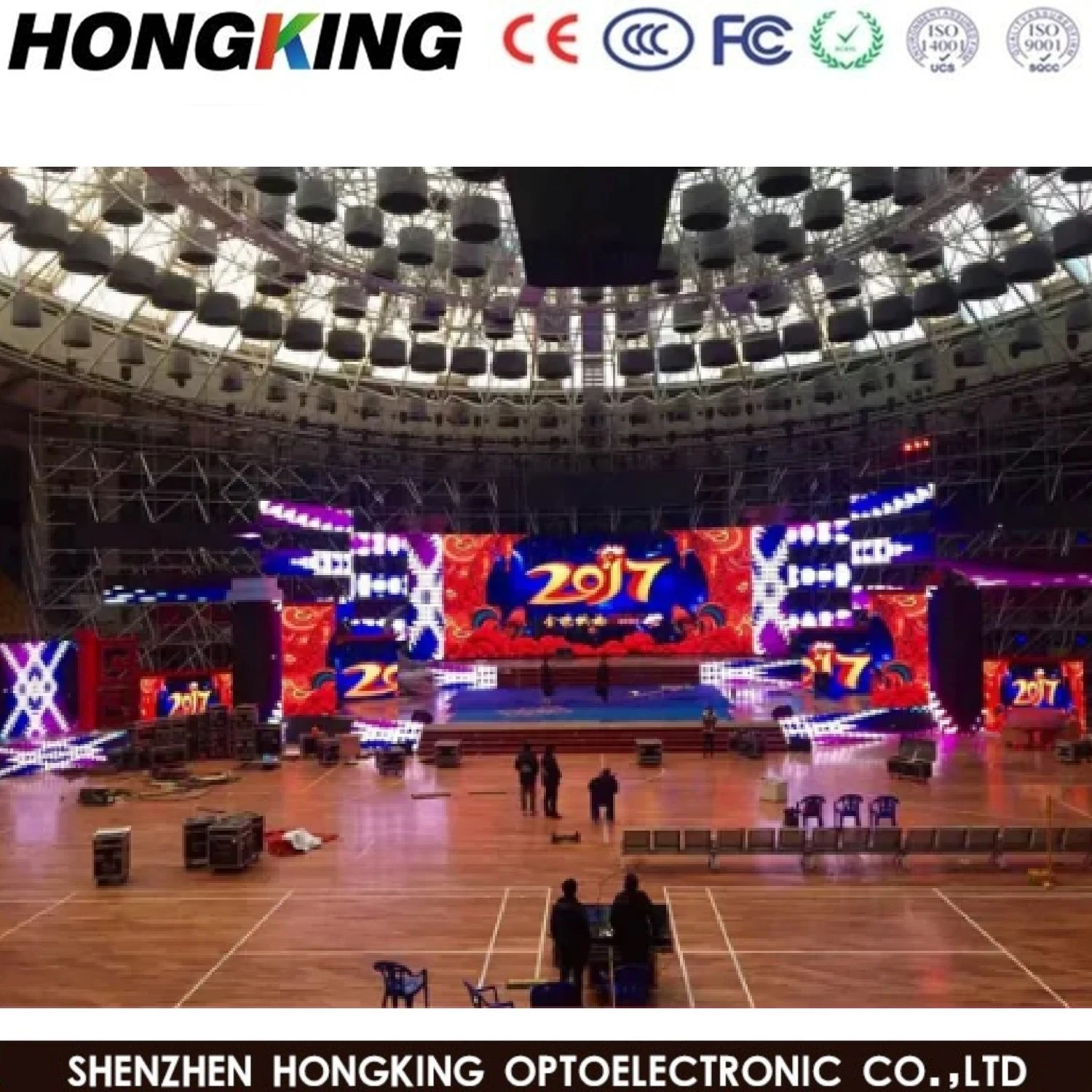

Product Application Cases:
company workshop :
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC.
package:
Payment term: T/T , usually 30~50% down payment before production,balance to be paid before delivery
Delivery time:Production lead time less 20 sqm is about 8-12 working days, more than 50 sqm. is about 15 working days
Free sample or not: Sample is available,but need to pay the material cost and freight cost
Shipping port: Shenzhen, Mainland China
MOQ: 2 sqm for led screen,and10pcs for led module
Guarantee:Two years quality guarantee,after two years,we will ask for material cost only,customer pay freight cost
Package and fast shipping
Anti-shaking wooden case
Carton box
Flight case
The transportation can be support by air ,by sea ,or by express as request
hongking always provide high quality products to our customers,and good after-sale service,obtained a good reputation,we produce our products based on international standards FCC,CE,RoHs,and with a strict quality control system,and confirm 2 to 3 years warranty,during this period,we will repair the default parts with free of charges,after the period,and during the lifetime,we only ask for material costs.
FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's your payment term? How long is your delivery time ?
A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
At least 30- 50% deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
A: Non-artificial damage, 2-3 years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.
7. Q:How can I get technical support?
A: We treasure every customer that shake hands with our Hongking.
We offer youTEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
8. Q:Is Available to print customer required logo on your led product ?
A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement.
If you have interests in buying, pleased send A complete inquiry need to show:
1. led screen panel pixel pitch, if you dont know how to choose, contact us
2. led screen size:length ___m; width___m,or cabinet quantity;
3. use for indoor or outdoor; fixed installation or rental?
4. intallation place pictures will be better;
product description :
| NO.: | Product name | P3.91 led display | |||
| 1 | Pixel Pitch(mm) | 3.91mm | |||
| 2 | Pixel configuration | 1R1G1B/SMD | |||
| 3 | Pixel density | 65536 dots/m2 | |||
| 4 | Brightness | 1000 cd/m2 | |||
| 5 | Module size(W*H) | 250*250mm | |||
| 6 | Module Resolution (W*H) | 64 dots x 64dots | |||
| 7 | Module weight | 500g | |||
| 8 | Cabinet size (W*H) | 500mm*500mm or 500mm*1000mm | |||
| 9 | Drive IC | MBI5124 | |||
| 10 | Drive mode | 1/16 scan | |||
| 11 | Viewing Angle(V/H) | 140 ºC | |||
| 12 | Grey Scale | 65536 degree | |||
| 13 | Life time | >100,000 Hours (50%) | |||
| 14 | MTBF | >50,000 Hours | |||
| 15 | Operating Voltage | AC110V/220V±10% | |||
| 17 | Screen Power Consumption | Max: 600w/m2; Average:200w/m2 | |||
| 18 | Input Power Frequency | 50/60Hz | |||
| 19 | Operating temperature | -30--60ºC | |||
| 20 | Humidity | 10%-95% | |||
| 21 | Refresh Rate | ≥1920HZ | |||
Product Features: :
1. Light weight and super thin, less than 80mm thickness and only 6.8kgs per panel for 500x500mm,12.5kgs per panel for 500x1000mm, it is portable and easy to move
2. Rental design cabinet, can be fixed or hung,and easy to install and dismantle with fast lock and aviation plugs,and with many different outlooking for choosing
3. High refresh rate up to 3840Hz,and high contrast ratio of 5000:1,real and rich colors and perfect vision effect
4. Packed with flight case, convenient to be collected and transportation,better for rental use
5. This kind of cabinets are suit for outdoor or indoor pixel pitch 2.6mm,2.976mm,3.91mm and 4.81mm,also can be with front and rear maintenance,and can be curved shapes with angle adjusters
certification :
Product Application Cases:
company workshop :
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC.
package:
Payment term: T/T , usually 30~50% down payment before production,balance to be paid before delivery
Delivery time:Production lead time less 20 sqm is about 8-12 working days, more than 50 sqm. is about 15 working days
Free sample or not: Sample is available,but need to pay the material cost and freight cost
Shipping port: Shenzhen, Mainland China
MOQ: 2 sqm for led screen,and10pcs for led module
Guarantee:Two years quality guarantee,after two years,we will ask for material cost only,customer pay freight cost
Package and fast shipping
Anti-shaking wooden case
Carton box
Flight case
The transportation can be support by air ,by sea ,or by express as request
hongking always provide high quality products to our customers,and good after-sale service,obtained a good reputation,we produce our products based on international standards FCC,CE,RoHs,and with a strict quality control system,and confirm 2 to 3 years warranty,during this period,we will repair the default parts with free of charges,after the period,and during the lifetime,we only ask for material costs.
FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's your payment term? How long is your delivery time ?
A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
At least 30- 50% deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
A: Non-artificial damage, 2-3 years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.
7. Q:How can I get technical support?
A: We treasure every customer that shake hands with our Hongking.
We offer youTEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
8. Q:Is Available to print customer required logo on your led product ?
A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement.
